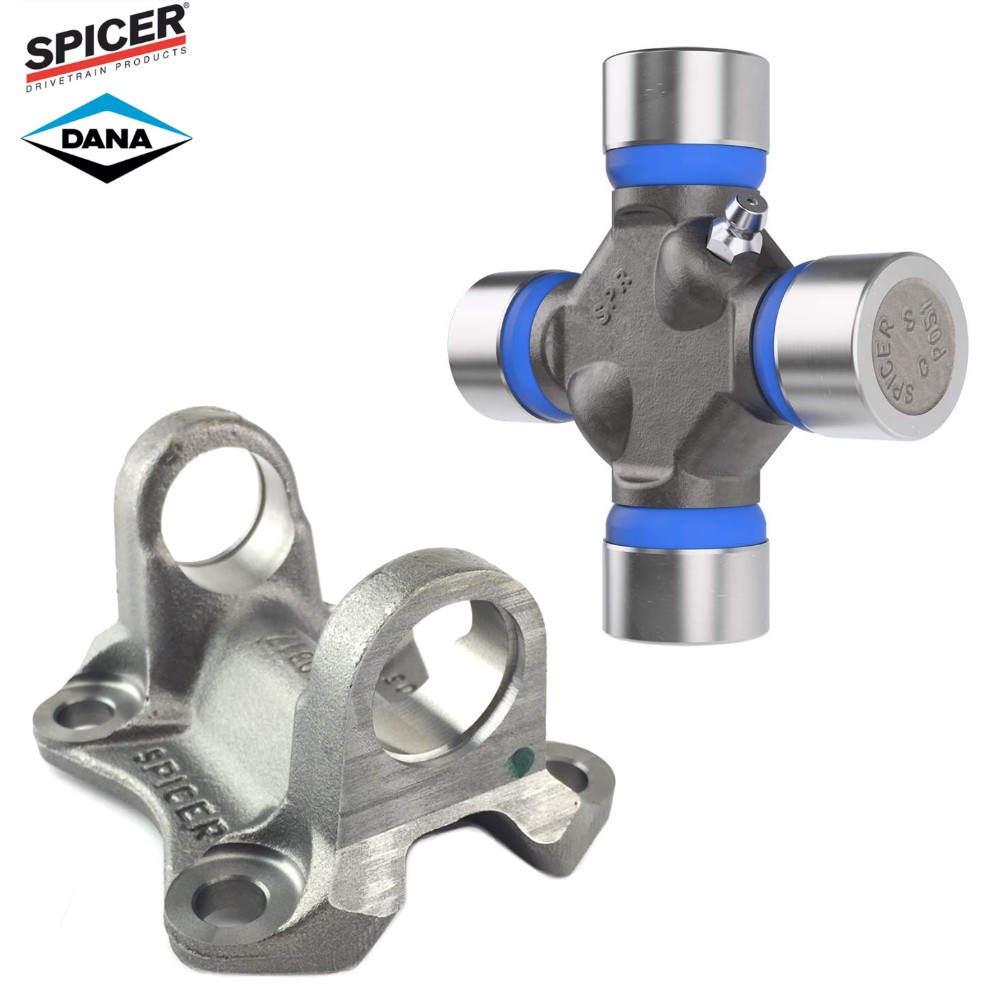

Tacoma 1330 Series Flange Yoke and Universal Joint Kit
Spicer Flange
Interchanges: 3302-185, 2-2-01904, 5001904, 5001905, 5004020
Series 1330 (1.062 X 3.625)
(OD) 4.528
Pilot 1.811M
(H) 1.653
(Z) 3.661
Alt Ref: 3302-185 / 2-2-01904 / 5001904 / 5001905
Uses 5-213X Universal joint
PCD = 3.661\" (93mm)
Hole centers = 2.589\" x 2.589\" (66mm x 66mm)
Male Pilot = 1.811\" (46mm)
Spicer Universal Joint:
Brand Spicer
Greaseable Y
Type OSR Style
OEM Series 1330
Bearing Cap Diameter (1) 1.062
Bearing Cap Diameter (2) 1.062
Snap Ring (1) 3.625
Snap Ring (2) 3.625
VMRS 24002046
Bearing Cap Type Round
Snap Ring Type External
Snap Ring Included Y
Grease Fitting Location One straight lube fitting in cross
Material Steel
Model Number SPICER 1330
Bearing Cap Finish Ground
Seal Material Rubber
Seal Color/Finish Blue
Coating Type None
Pre Greased N
Grease Type N.L.G.I. Grade 2
Grease Zerk Included Y
Hardware Included N
Length A (In) 3.625
Length B (In) 3.625
Length A (mm) 92.1
Length B (mm) 92.1
Bearing Cap Type A OSR
Bearing Cap Type B OSR
Bearing Cap Diameter A (mm) 1.062
Bearing Cap Diameter B (mm) 1.062
Package Type EACH
Package Qty 1
Weight 1.37 LB
Country of Origin United States
