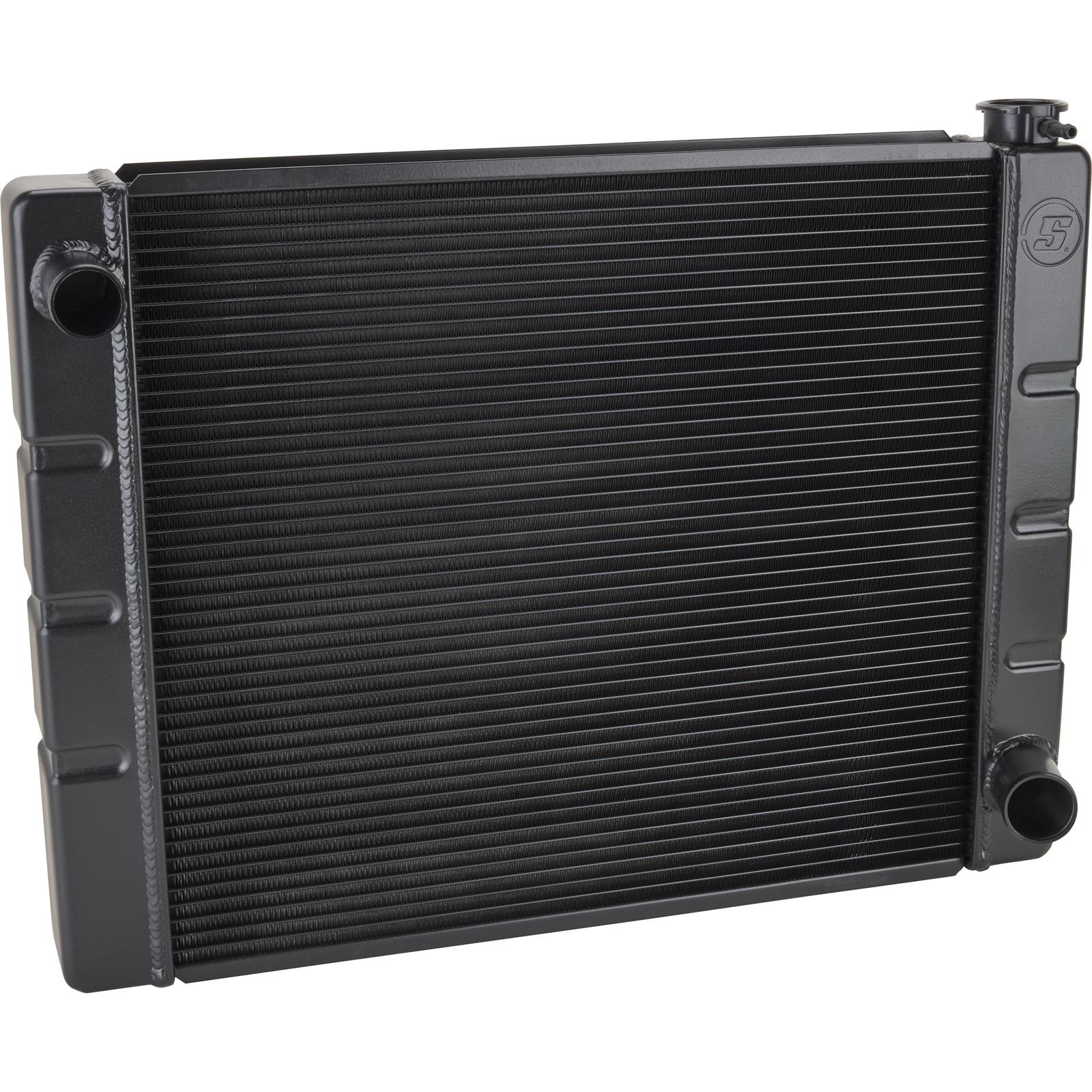

Speedway Motors Chevy SBC/BBC Universal Aluminum Radiator, 28 Inch, Black For Sale

High-Performance Cooling: Designed with two rows of 1” aluminum tubes, this radiator provides superior cooling performance compared to traditional copper tube designs, ideal for racing and high-performance street applications., Durable Furnace-Brazed Construction: Built with 100% aluminum and furnace-brazed for maximum durability, eliminating epoxy and gasket failure points for long-lasting reliability under extreme conditions., Universal Fit: Chevy small block/big block hose fittings with a 1.5” driver-side upper inlet and 1.75” passenger-side lower outlet, ensuring compatibility with a wide range of vehicles., Lightweight & Quality Aluminum Design: Constructed with quality aluminum and a black epoxy paint finish that maintains efficient thermal transfer for optimal engine cooling., Multi Speedway Chevy SBC/BBC Universal Aluminum Radiator, 28 In., Black Sku # 91734701-28 Mfr. Part # 91734701-28 Condition New Brand Speedway Motors Sold Each Details

• A premium build quality, lightweight, aluminum performance radiator for any budget
• Furnace-brazed construction is more durable than epoxy and gasket construction
• Black epoxy painted finish doesn’t inhibit thermal transfer of radiator
• Traditional Chevy 1.5-inch driver side upper inlet, and 1.75-inch passenger side lower outlet
• Two rows of 1-inch aluminum tubes cool better than 5 rows of traditional copper tubes
• Dense fin structure improves airflow and adds rigidity to radiator core
• Billet aluminum filler neck guarantees a long-lasting seal under high pressures
• Widths (outside tank-to-outside tank) of 22, 24, 26, 28, or 31-inch available
• All radiator widths are 19 inches tall to fit a variety of street and race applications
• Efficient, yet simple single-pass crossflow design with 2.25-inch core thickness
• Basic design for DIY universal fit applications, with the focus on engine cooling
• Radiator mounting brackets, insulators, radiator cap, and shroud sold separately

Performance Under Pressure, Lap After Lap, Mile After Mile

Our line of universal crossflow aluminum Chevy radiators makes it easy for budget-minded racers to get a professional-quality, no compromises aluminum racing radiator. Constructed of lightweight, 100 percent aluminum, each radiator assembly is fully furnace brazed for maximum durability and performance. Unlike lower cost or OEM radiators, there are no epoxy and gaskets used in the radiator’s construction here! Epoxy acts as an insulator, causing radiators to heat unevenly, and this stress combined with the vibration from racing can cause epoxy seals to crack and leak or separate over time. Furnace brazing minimizes fatigue from the rapid heating and cooling cycles. Since all the metal parts are fused together with a metal joint, they conduct heat evenly between the tanks and the rest of the assembly, preventing uneven expansion between the fused pieces, keeping the joint strong. Fully furnace brazed construction also means no crimped on end tanks with an O-ring seal to fail that can put you out of the race or on a flatbed ride home.

We welded a CNC machined billet filler neck to our radiator’s end tank for a strong seal under high pressures that will outperform cast filler necks. The billet filler neck is designed with an industry standard 1-5/8-inch inner cap diameter so that you can use any off the shelf Shop Radiator Caps with the pressure rating you need for racing or street use (yes, these radiators work great for engine swaps, custom builds, and more for street use applications). An 1/8-inch NPT overflow port is machined into the billet filler neck to accommodate the included 1/4-inch hose barb fitting included. This port can be used for a simple Shop Coolant Overflow/Recovery Tanks for racing, or a more street friendly recirculating recovery tank system.

Maximum Cooling Ability for Your Race Car, Street Car, or Muscle Truck

Our single pass design uses two rows of 1-inch wide aluminum tubes which have more surface area than similar design copper radiators, cooling the same as five rows of copper tubes. A dense fin structure adds an additional layer of strength to the support tubes, better directs air flow through the core, and has more surface area to transfer and shed heat. The core is 2.25 inches thick, a perfect balance of maximizing directed airflow and heat transfer. The crossflow design allows the radiator cap to be mounted on the low-pressure (suction) side of the system, minimizing pressure on the neck assembly, especially in high-RPM usage. This radiator is built for one purpose, cooling your engine. No internal transmission cooler maximizes cooling efficiency. Mounting an external Shop Transmission Coolers will be necessary for automatic equipped cars and trucks.

Multiple Widths Available Means We Have a Radiator That Fits Your Small or Big Chevy V8

Our universal radiator isn’t made for any one specific car or truck, but we offer options to make it fit your race car or custom project. Since we didn’t add mounting brackets, this means you can easily adapt our radiator to any build. We feature widths (measured outside tank-to-outside tank) of 22-, 24-, 26-, 28-, or 31-inches and all are 19 inches tall. We offer universal insulated mounting brackets in Steel Radiator Bracket Kit With Insulators and Aluminum Radiator Bracket Kit With Insulators which support or clamp to the tanks top and bottom, as well as Shop Fan Shrouds for electric and mechanical fans, or pre-made Shop Single Electric Fan W/ Shroud Kits and Shop Dual Electric Fan W/ Shroud Kits This radiator features the traditional Chevy hose fitting configuration with a 1.5-inch driver side upper inlet, and 1.75-inch passenger side lower outlet.

Aluminum Fan Shroud Kits available:

• For 22\" radiator, fan shroud kit # 22" Fan Shroud Kit
• For 24\" radiator, fan shroud kit # 24" Fan Shroud Kit
• For 26\" radiator, fan shroud kit # 26" Fan Shroud Kit
• For 28\" radiator, fan shroud kit # 28" Fan Shroud Kit
• For 31\" radiator, fan shroud kit # 31" Fan Shroud Kit

Aluminum Electric Fan Shroud Kits available:

• Single fan kit for 22, 24, 26, 28, 31, and 33\" radiator # Single Fan Shroud Kit
• Double fan kit for 28, 31, and 33\" radiator # Double Fan Shroud Kit

Specs Sold in Quantity Each Radiator Style Single Pass Radiator Flow Direction Crossflow Material Type Aluminum Inlet Location Upper driver side Outlet Location Lower passenger side Row Quantity 2 Tube Size 1.00" Overall Width Range 28.00" to 28.99" Overall Width 28" Overall Height Range 19.00" to 19.99" Overall Height 19" Overall Thickness 3.25" Core Width Range 22.00" to 22.99" Core Width 22.68" Core Height Range 18.00" to 18.99" Core Height 18" Core Thickness 2.25" Finish Painted Cooling Fan Not Included Transmission Cooler No Shroud Included No Filler Neck Height 1.0" Inlet Size 1.5 Tube Count 2 Outlet Size 1.75 Tube Style Crossflow Fan Included No Radiator Cap Included No Filler Neck Location Right Side Mounting Bracket Included No Related Items / Suggested Parts Black Aluminum Dual Fan Shroud For Speedway Radiators, 28-inch Dual Electric Fan & Black Shroud Kit, 28-Inch Dual Electric Fan & Shroud Kit, 28-Inch Aluminum Fan Shroud For Speedway Motors Radiators, Dual Fans, 28 Aluminum Fan Shroud For Speedway Motors Radiators, Single Fan, 28 Black Aluminum Single Fan Shroud For Speedway Radiators, 28-inch Single Electric Fan & Shroud Kit, 28 Inch Single Electric Fan & Black Shroud Kit, 28-Inch AFCO 100001 High Performance Antifreeze Coolant, 1 Gallon Lucas 10640 Super Coolant Additive Redline 80204 Water Wetter Coolant Additive High Pressure Radiator Cap, 20 Lbs Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
