STLF-12120A

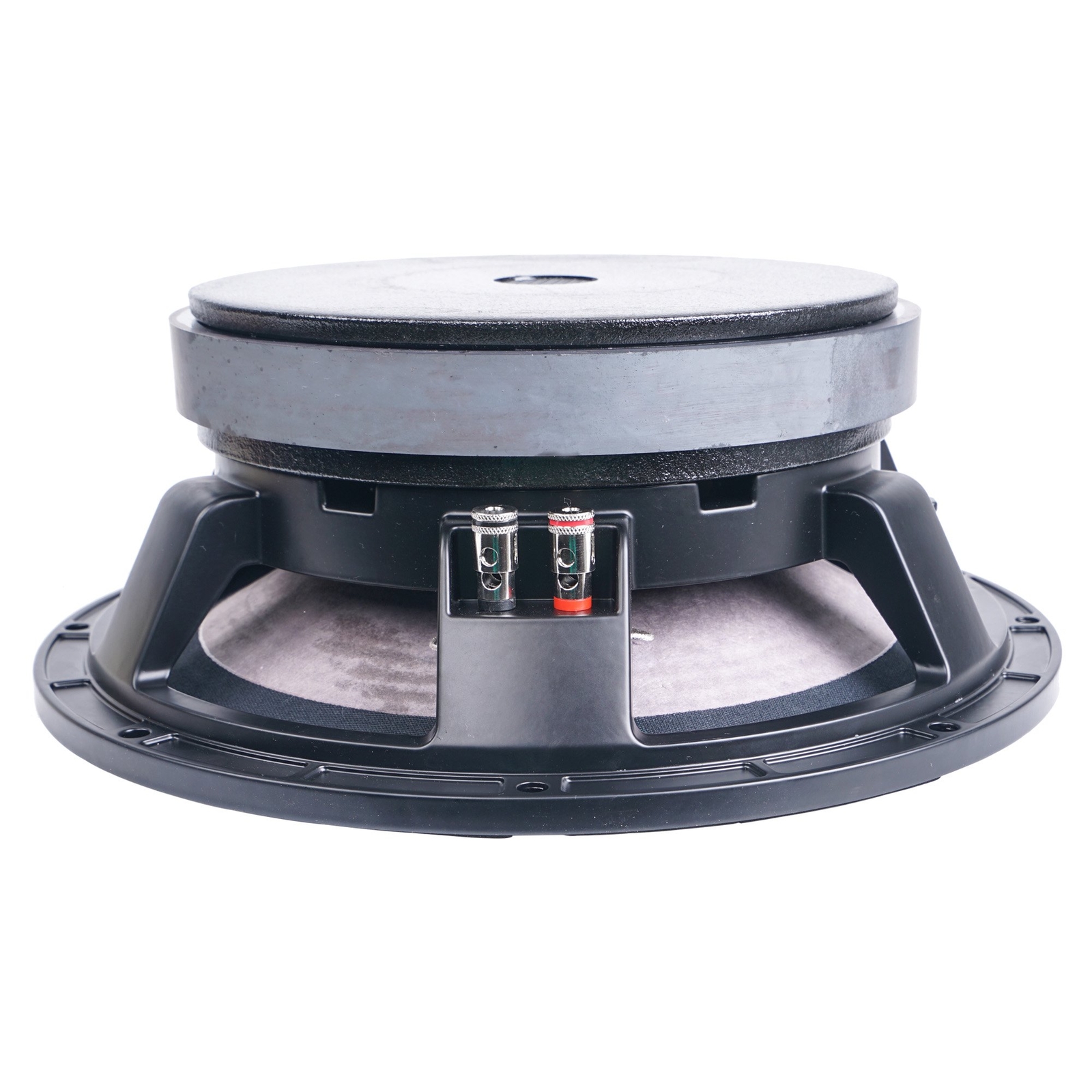

Sound Town 12” 500W Cast Aluminum Frame Woofer (Low Frequency Driver), Replacement Woofer for PA/DJ Speakers or Subwoofer Cabinets

The Sound Town STLF-12120A is a 12” universal replacement driver for PA/DJ woofers. It is compatible with Sound Town PA speakers (subwoofers) and compatible with other brand speakers with a 12” subwoofer. The subwoofer comes with a 8-ohm impedance and has a frequency range of 45-2K Hz with sensitivity of 100dB. It has a built-in cast aluminum chassis and has a paper cone with cloth edge. With 500W RMS power handling capability, the STLF-12120A delivers a massive and deep bass, and makes a great replacement woofer for your 12-inch PA/DJ speakers or subwoofer cabinets.

Features

• 12” cast aluminum frame.


• 4” voice coil and 120-oz magnet produce superb sound.


• 500W RMS power handling capability.

Specifications

ModelSTLF-12120AResonance40HzNominal Basket Diameter12\"Frequency Response40Hz-2KHzNominal Impedance8ΩSensitivity96±3dBPower Rating500W RMSMagnet Weight120 ozPeak Power1000W PeakVoice Coil Diameter4.0\" VC

Thiele & Small Parameters

Resonant Frequency (fs)40HzCompliance Equivalent Volume (Vas)25.36 LtrDC Resistance (Re)7.1ΩMechanical Compliance of Suspension (Cms)0.055 mm/NMechanical Q (Qms)2.91BL Product (BL)21.56 TmElectromagnetic Q (Qes)0.685Diaphragm Mass Inc. Airload (MMs)106.3 gTotal Q (Qts)0.554Surface Area of Cone (Sd)572.5 cm2

Mounting Information

Overall Diameter12.3\", 313 mmMounting Holes Diameter 8-0.275\", 8-7 mmDepth4.6\", 117 mmNet Weight22.4 lbs, 10.2 kgBaffle Hole Diameter11.1\", 283mmShipping Weight25.5 lbs, 11.6 kgInstallation Position Diameter11.5\", 292mm----

Materials of Construction

Coil ConstructionRound copperCone CompositionPaper coneCoil FormerAluminumCone Edge CompositionCloth edgeMagnet CompositionFerriteDust Cap CompositionPaper capBasket MaterialsDie Cast Aluminum----

Dimensions & Weight

Product Width (in.)∅12.3\"Package Width (in.)15.4\"Product Height (in.)--\"Package Height (in.)7.7\"Product Depth (in.)4.6\"Package Depth (in.)15.4\"Product Weight (lb.)22.4 lbsPackage Weight (lb.)25.5 lbs
