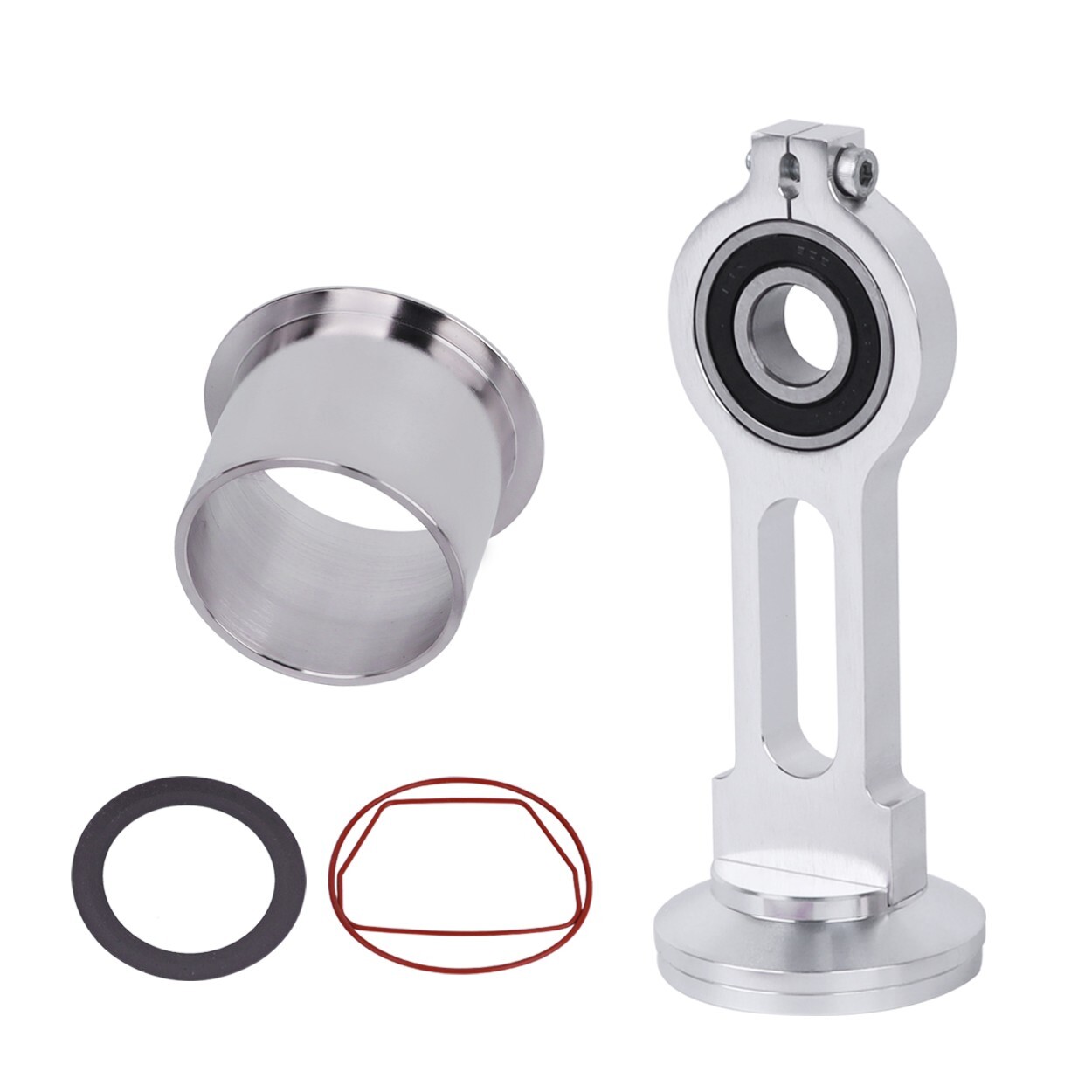

KK-4835 Connecting Rod with cylinder sleeve is an OEM Allparts Basics replacement ACG-1 connecting rod designed to fit the DeVilbiss Air Power Products oil-free compressor pumps used by Porter Cable, DeWalt, Sears Craftsman, and many others...
This Connecting Rod replacement kit is the most current style coated cylinder sleeve and will allow for just the replacement of the cylinder sleeve or piston ring in the future.
This KK-4835 Connecting Rod replacement kit fits many of the Oil-Free Single Cylinder air compressor pumps originally made by DeVilbiss Air Power Company.
NOTE:
This KK-4835 is using the ACG-1 Rod Casting with the split journal and screw and does not include the A02473-BRG Bearing as the AGC-1 Rod with the pre-installed bearings were used only on the twin cylinder AC and ACG Series air compressor pumps.
The KK-4835 replaces the following part numbers: ACG1, Single Cylinder Compressor Only.
CAC-118,
889124
889125
891125
AC-0788
CAC-1118
D25009
D25837
CAC1118
CAC118
CAC-249
CAC-249-1The approximate connecting rod dimensions are as follows:
Connecting rod length: 5.80 inches.
Connecting rod thickness: .465 inches.
Connecting rod width: 1.00 inches.
Rod Cap: 2.240 inches.
The approximate cylinder dimensions are as follows:
Inside Diameter 2.365 inches.
Outside Diameter 2.465 inches.
Outside Shoulder: 2.945 inches.
Total Height: 1.980 inches.
