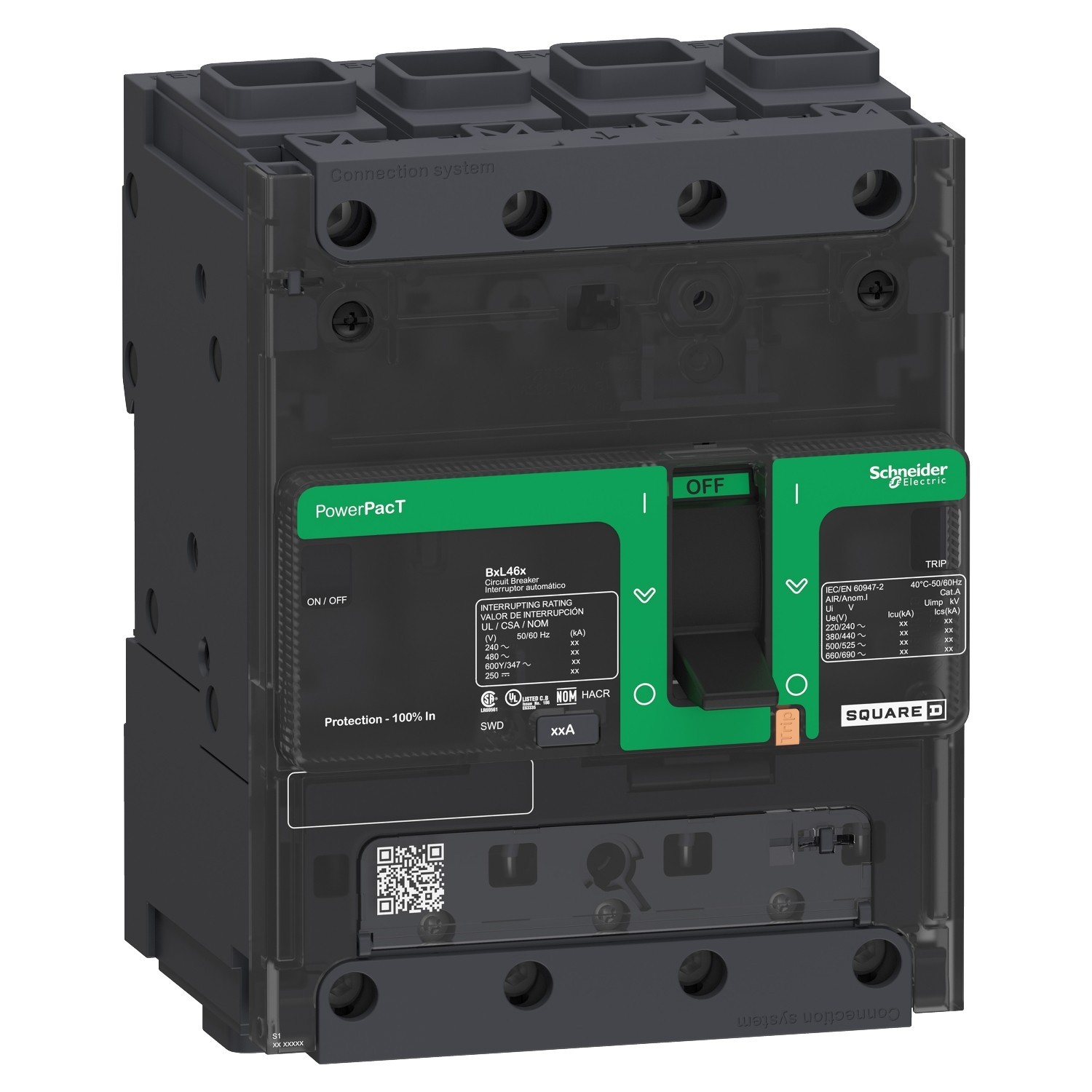

Schneider Electric BGF46100 Circuit breaker PowerPacT B 100A 4 pole 600Y/347VAC For Sale

Schneider Electric BGF46100 Circuit breaker, PowerPacT B, 100A, 4 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%The Schneider Electric BGF46100 Circuit breaker PowerPacT B 100A 4 pole 600Y/347VAC is a reliable and efficient electrical component suitable for interior use. This thermal circuit breaker features a Type D tripping characteristic, making it ideal for protecting electrical circuits from overcurrent situations. With a maximum amperage of 100A and a voltage range of 551-600V, this circuit breaker is designed for durability and performance. The bolt-on mounting style and green color make it easy to identify and install in any room. Its on/off operation method and instantaneous break time ensure quick and precise circuit protection.MainRangePowerPactProduct namePowerPact BDevice short nameBG 100Product or Component TypeCircuit breakerDevice Rated Current100 ANumber of Poles4PProtected poles description4tControl TypeToggleBreaking capacity codeGBreaking capacity65 kA 208Y/120 V AC 50/60 Hz UL 489
65 kA 240 V AC 50/60 Hz UL 489
35 kA 480/277 V AC 50/60 Hz UL 489
35 kA 480 V AC 50/60 Hz UL 489
20 kA 250 V DC UL 489
18 kA 600Y/347 V AC 50/60 Hz UL 489[Ue] rated operational voltage525 V AC 50/60 Hz UL 489Network Frequency50/60 Hz[Ics] rated service breaking capacity65 kA 220...240 V AC 50/60 Hz IEC 60947-2
18 kA 500...525 V AC 50/60 Hz IEC 60947-2
35 kA 380...415 V AC 50/60 Hz IEC 60947-2
35 kA 440 V AC 50/60 Hz IEC 60947-2[Uimp] rated impulse withstand voltage8 kV IEC 60947-2Trip unit current rating80 %[Ui] rated insulation voltage800 V IEC 60947-2Trip unit nameTM-DSuitability for isolationYes IEC 60947-2Utilisation categoryCategory AMechanical durability15000 cycles IEC 947-1 Annex K ed 5.2Electrical durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V InConnection pitch1.06 in (27 mm)AWG gauge14 AWG...8 AWG aluminium/copper
6 AWG...3/0 AWG aluminium/copperLocal signallingPresence of auxiliary contacts flag green)Mounting modeClip-on 35 mm symmetrical DIN rail)
By screws plate)Electrical connectionTerminal nut, ON and OFF endTightening torque44.3 lbf.in (5 N.m) 0.004…0.02 in² (2.5…16 mm²) (14 AWG...4 AWG)
79.7 lbf.in (9 N.m) 0.04…0.1 in² (25…95 mm²) (3 AWG...3/0 AWG)Number of slots1 auxiliary switch OF plug-in)
1 voltage release MN or MX plug-in)
1 alarm switch SD plug-in)Power wire stripping length0.8 in (20 mm)ColorGray RAL 7016)9 mm pitches12Height5.4 in (137 mm)Width4.3 in (108 mm)Depth3.1 in (80 mm)Net Weight2.736 lb(US) (1.241 kg)Quantity per SetSet of 1Circuit breaker applicationHACR ratedEnvironmentQuality labelsCEStandardsCSA C22.2 No 5
EN/IEC 60947-5-1
GB 14048.2
EN/IEC 60947-2
NEMA AB1
UL 489
NMX J-266Product certificationsUL
IEC
CCC
EAC
CSA
NOMIP degree of protectionFront cover IP40 IEC 60529IK degree of protectionIK07 conforming to IEC 62262Pollution degree3 IEC 60947-1Ambient Air Temperature for Operation-13…158 °F (-25…70 °C)Ambient Air Temperature for Storage-58…185 °F (-50…85 °C)Operating altitude6561.68 ft (2000 m) without derating
5000 m with derating
