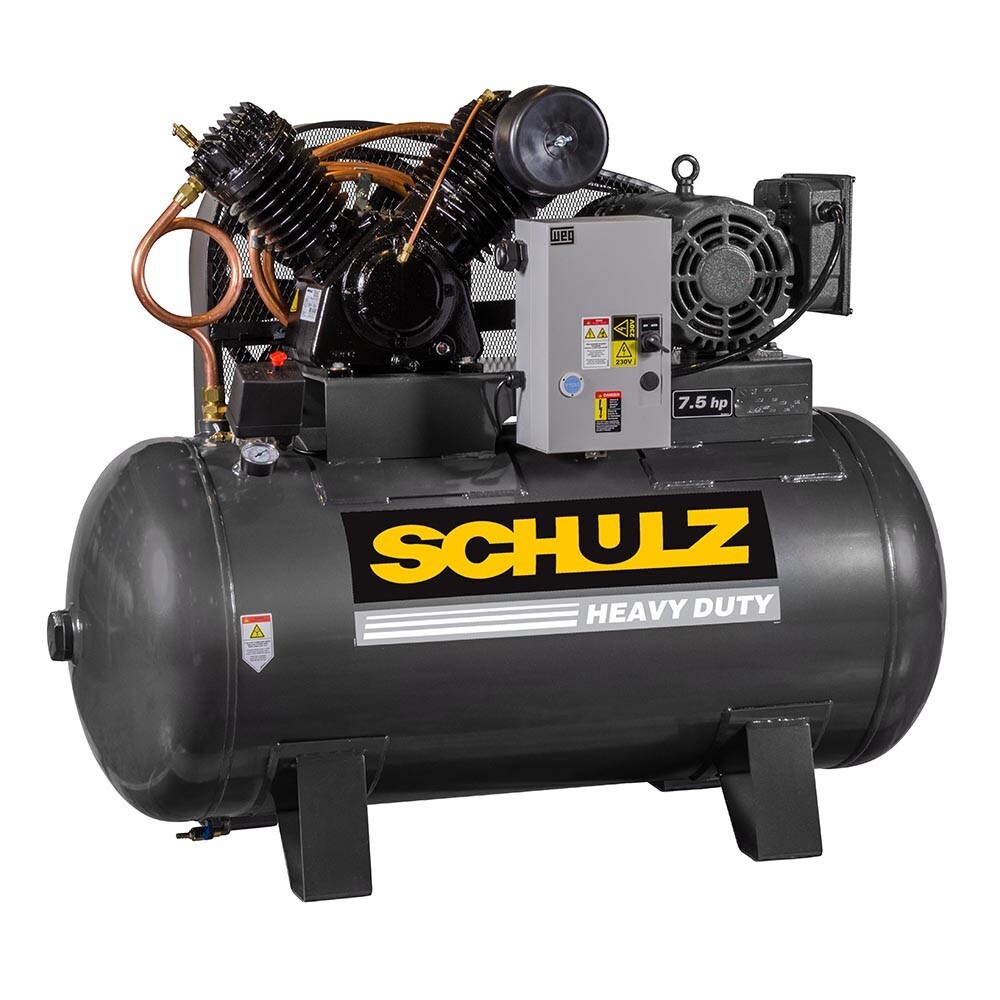

SCHULZ 7.5 HP Stationary Air Compressor, 80 Gallon Horizontal, 230/460V, 3 ph For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SCHULZ 7.5 HP Stationary Air Compressor, 80 Gallon Horizontal, 230/460V, 3 ph:
$3678.22
TheSCHULZ 7.5 HP Stationary Air Compressoris built for demanding industrial and commercial environments requiring reliable three‑phase performance. Powered by aWEG 7.5 HP electric motor, this compressor delivers30 CFM at 175 PSIand features aV‑Series two‑stage solid cast‑iron pumpengineered for cooler operation and extended service life. Precision‑engineered components—includingdeep‑fin cast‑iron cylinders,oversized main bearings,Swedish steel valves, andCNC‑machined parts—ensure maximum durability and efficiency. Abelt‑drive system with notched beltsand anenclosed belt guardenhances reliability and operator safety, whilepowder‑coated componentsresist rust and corrosion. This unit is mounted on an80‑gallon ASME‑certified horizontal tank, making it ideal for manufacturing facilities, automotive shops, and industrial applications. Key Features & Benefits - 7.5 HPWEG electric motorfor commercial‑duty use
- 230/460V three‑phase power
- V‑Seriestwo‑stage solid cast‑iron pump
- Cooler operation due to spaced cylinder design
- Deep cylinder fins for superior heat dissipation
- Oversized main bearings for long service life
- Swedish steel valves for efficient air delivery
- CNC‑machined components for precise fit and performance
- Belt‑drive system withstandard notched belts
- Enclosed belt guard for operator safety
- Powder‑coated components resist corrosion
- Aftercooler included
- ASME‑certified 80‑gallon horizontal tank
Motor Specifications - Motor Brand:WEG
- Horsepower:7.5 HP
- Voltage:230 / 460 VAC
- Phase:Three Phase
- Magnetic Starter:Yes
- Amp Draw:Consult certified electrician
- Recommended Breaker:Consult certified electrician
Pump Specifications - Pump Type:Two‑Stage
- Material:Solid Cast Iron
- Airflow:30 CFM @ 175 PSI
- Maximum Pressure:175 PSI
- Oil System:Splash Lubricated
- Oil Type:Oil Lubricated
- Oil Sight Glass:Yes
- Low Oil Shut‑Off:No
- Aftercooler:Yes
- Drive Type:Belt Drive
Tank Specifications - Tank Size:80 Gallons
- Orientation:Horizontal
- Tank Outlet:1/2"
- Electronic Drain Valve:No
- Pressure Gauge:Yes
- Air Dryer Included:No
Dimensions & Weight - Length:56"
- Width:23"
- Height:45"
- Weight:595 lbs
Warranty - Unit Warranty:1 Year
- Pump Warranty:2 Years
Additional Information - Part Number:932.9348‑0
- Product Category:Air Compressor – Stationary
|
|
