SANDVIK COROMANT A880-D1250LX38-04 INDEXABLE DRILL BRAND NEW:
$349.95

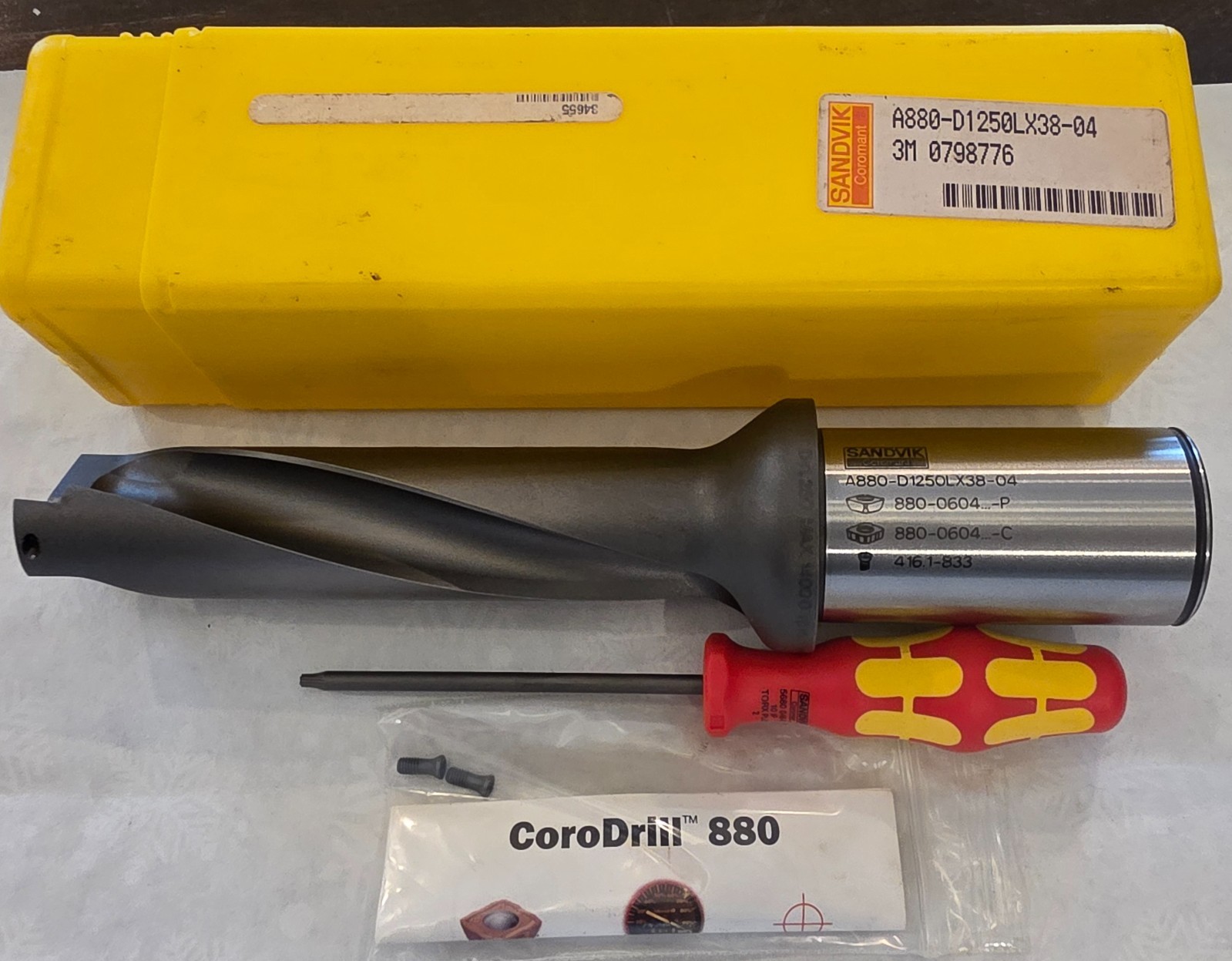

SANDVIK COROMANT A880-D1250LX38-04 INDEXABLE DRILL BRAND NEW!
*This Retails for $1,150.00 USD!!!
Product dataMetricInchDATA IN TECHNICAL ILLUSTRATION:Cutting diameter (DC)1.25 inUsable length (LU)5.0223 inTool cutting edge angle (KAPR)88 °Point length(PL)0.0223 inOverall length(OAL)8.8379 inFunctional length(LF)6.0597 inMORE PRODUCT DATA:Achievable hole tolerance lower(TCHAL)0 inAchievable hole tolerance upper(TCHAU)0.0157 inUsable length diameter ratio (ULDR)4.0178Max. radial adjustment(ADJLX_RAD)0.0354 inInsert type(CUTINT_MASTER_1)CoroDrill 880 -size 06-C (880-060406H-C-GM)Cutting item count(CICT_1)1Clamping type code(MTP)clamp with screw through holeInsert type(CUTINT_MASTER_4)CoroDrill 880 -size 06-P (880-0604W06H-P-GM)Cutting item count(CICT_4)1Torque(TQ)17.7015 in lbfOrthogonal rake angle(GAMO)5 °Face effective cutt edge count(ZEFF)1Connection - machine side(ADINTMS)Cylindrical shank (ISO9766 drill shank with flange) -inch: 1 1/2Coolant entry style(CNSC)axial concentric entryCoolant pressure(CP)145 PSIConnection diameter(DCONMS)1.5 inBody length(LB)5.15 inRotational speed maximum(RPMX)14,000 1/minWeight of item(WT)infoweight of item2.7756 lbRelease date(ValFrom20)8/13/06Release pack id(RELEASEPACK)06.2
