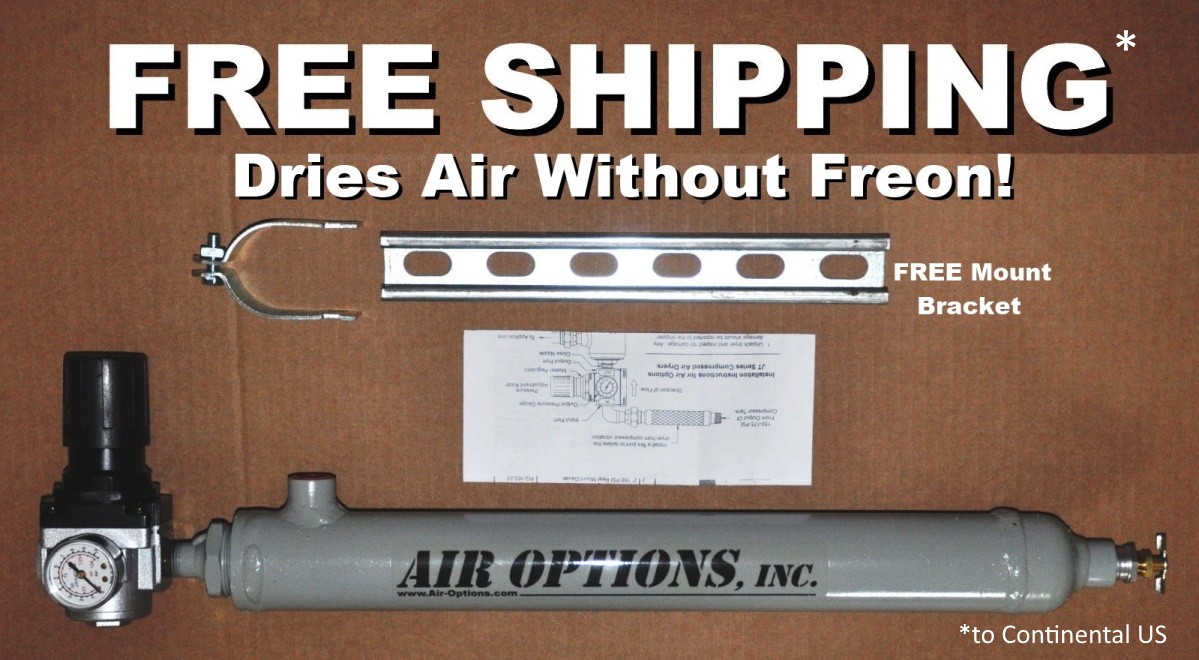

JT Series Refrigerated Air Compressor Dryer with Manual Drain
For 3 HP to 5 HP 2-Stage Air Compressors
No Refrigerants - No Filters - No Electricity - Just Clean, Dependable Dry Air.Easy to Install - No Maintenance - Free Phone SupportJT Dryers' patented design uses expansion to chill the air and condense out both liquid water and water vapor from the air stream.
Note:** Please contact us before requesting a return. ** We can assist in correcting issues causing performance problems. Returns of installed dryers will incur a 20% to 50% refurbishing fee.Check out our response! Here's a sample:Suitable For:ALL General Purpose Air Applications: Auto Repair - Paint Shops - Sand Blasting - Plasma Cutters -
CNC Equipment - Powder Coating - Machine Shops - Wood Shops - Dry Cleaners - and MORE!SPECIFICATIONS:
- For 3-5 HP 2-Stage Piston Compressors
- Up to 20 SCFM max air flow
- Compressor Must Be capable of 175 psi output pressure
- 200 Max PSI
- 150 deg. F Max Temperature
- Air Inlet Size: 1/2" F NPT
- Dimensions: 25.5" x 3.5" x 2.5"
- Weight: 12 lbs
- For All General Purpose Air Applications
Carries a 5 Yr Limited Warranty with a Life Span of 20 - 30 Years!
QUESTIONS? CONTACT US - We're happy to help!
Do I have a 2-Stage Air Compressor?If your compressor has an output pressure of at least 175 psi, chances are it is a 2-Stage.To be certain, SEE image above, or CONTACT usWhy only 2-Stage Compressors? Simply put, the more air expansion, the drier the air. 175 psi input reduced to an operating pressure of 90 to 125 psi chills the air enough to condense out up to 98% of water. Lower input pressures remove less water.
*** NOTE: Photo is of a similar model. ***
