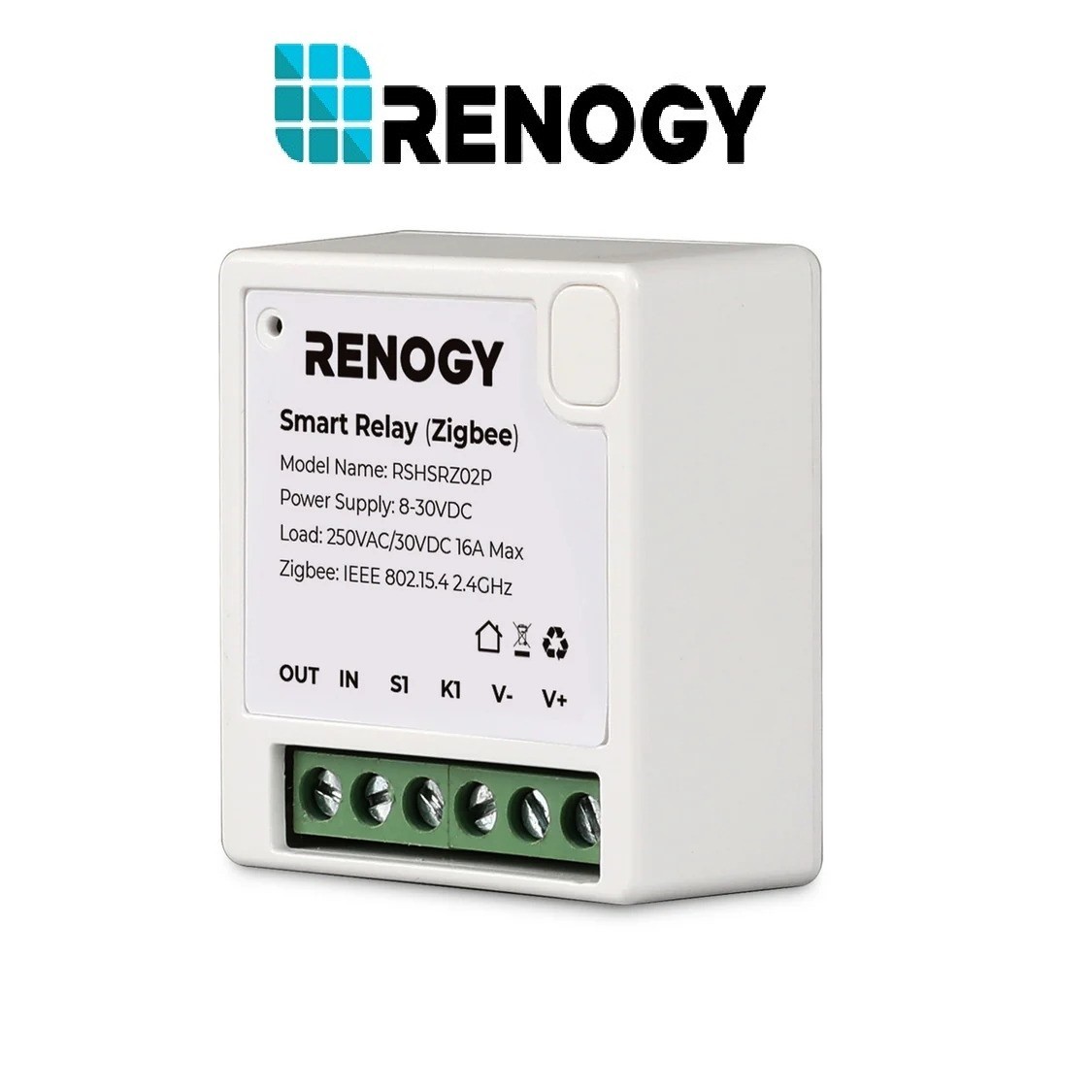

The RENOGY Smart Relay is a Zigbee 3.0 single-channel power relay that supports a max of 16A load. It supports 8 to 30V DC power supply and can be connected to the AC or DC load. You can get multi-scene linkage with other accessories by setting up a unique smart scene via Renogy ONE M1 on your DC Home app.
- Power Input (for the relay):8-30V DC.
- Load Output (what it controls):Can switch up to 250V AC (like 120V) or 30V DC, max 16A.
Renogy\'s smart relays, Zigbee model, are designed to work with voice assistants, integrating with platforms like Alexa and Google Assistant
SPECIFICATIONSRENOGY Smart RelayModel:RSHSRZ02PPower Supply:8-30V DCLoad:250V AC / 30V DC, 16A MaxConnection:Zigbee 3.0 (IEEE 802.15.4)Applicable Method:3M adhesive to stickDimensions (L x W x D):0.79 x 1.57 x 1.73 in / 20 x 40 x 44 mmWeight:0.04 lbs / 40 gCasing Material: PC V0Security Mode:WPA / WPA2Operating Temperature Range: -4℉ to 104℉/ -20℃ to 40℃Operating Humidity:0% to 90% RH, No CondensationOperating Altitude: Less than 2,000m above sea level
