The input shaft is integrated with the locking device, and the symmetrical distribution achieves dynamic balance and strong locking, preventing the shaft transmission from slipping, and realizing high-precision zero-gap power transmissionThe surface of the shaft is matched with the oil seal to ensure a low coefficient of friction, reduce the starting load, maintain good sealing, and prolong the service life

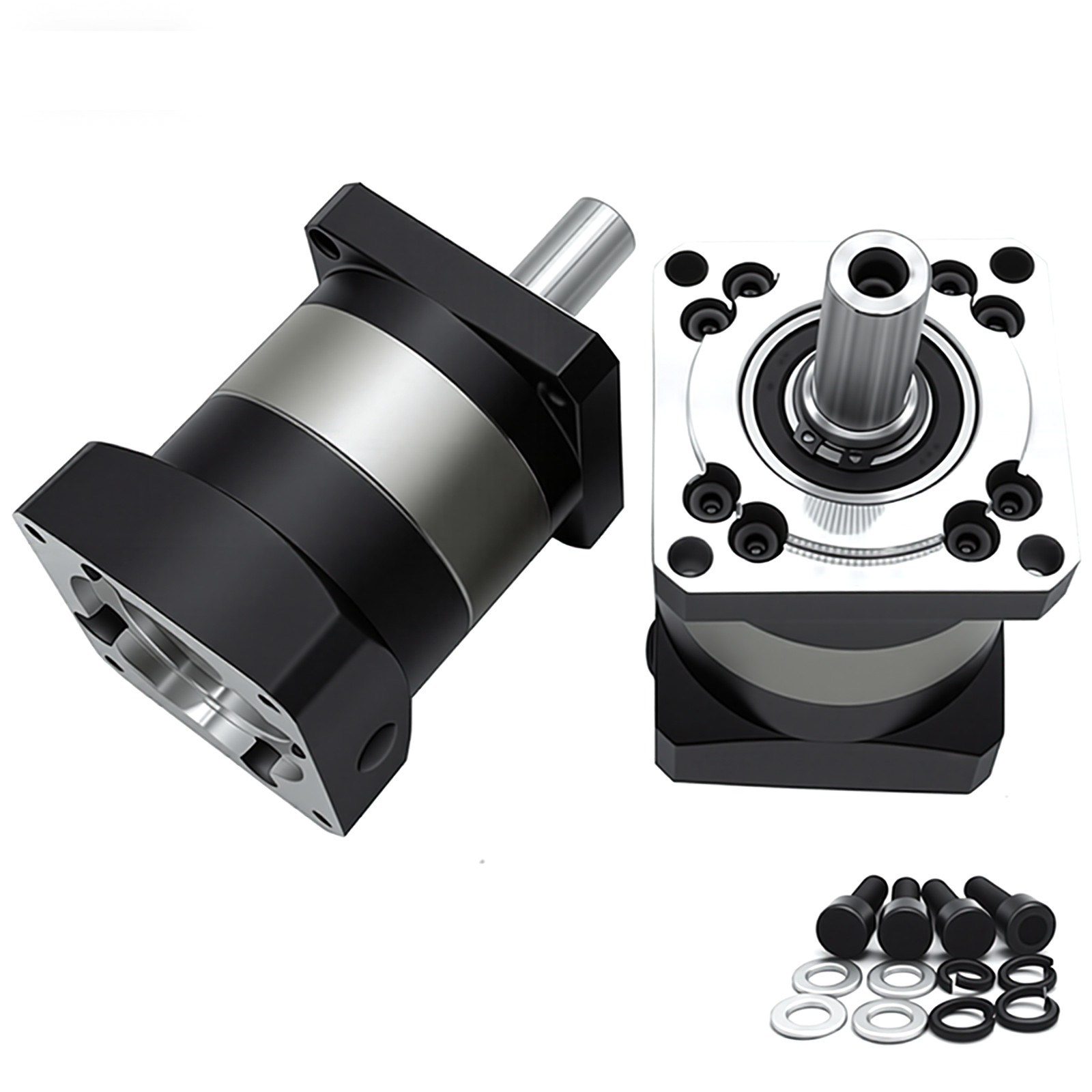

High Precision Planetary Gear Reducer Step-Down 19mm Input Low Noise 5:1-100:1DescriptionThis high-quality planetary gearbox speed reducer gear head is a reliable and efficient choice for a variety of applications.
With 20mm output shaft, it is suitable for use with 80mm 750W AC Servo Motor.
Designed for use in office/home/production automation and consumer electronics, this gearbox offers high precision with less than 7 arcmin accuracy and a wide range of nominal ratios including 5:1, 10:1, 20:1, 50:1, and 100:1.
This gearbox is an excellent choice for anyone in need of a reliable and efficient speed reducer for their automation or motion control needs.
Main Product Advantage
✅high efficiency
✅high rigidity
✅high bearing capacity
✅Low-noise operation
⏺The output planetary turntable adopts an integrated type (double support) to ensure stability, high torque rigidity and precision.
⏺ The ring gear is formed by integrated design, and the high-quality high-density alloy steel ensures higher concentricity, precision and strength
(Using high-precision spur gears, Backlash is as low as 7 arc-min)
⏺ The input shaft is integrated with the locking device, and the symmetrical distribution achieves dynamic balance and strong locking, preventing the shaft transmission from slipping, and realizing high-precision zero-gap power transmission
⏺ The surface of the shaft is matched with the oil seal to ensure a low coefficient of friction, reduce the starting load, maintain good sealing, and prolong the service life
⏺ It can be applied to robots, manipulators, spring machinery, CNC machine tools, printing and packaging machinery,Military, aviation equipment, textile machinery, food machinery, etc
1x Planetary reducer
1x Key
4x Install screws
Straight Gear Planetary ReducePLF090Max. Output TorqueNm1.5 Times Rated Output TorqueInstant Braking TorqueNm2 Times Rated Output TorqueMax Radial TorqueN450Max Axis TorqueN430Torsional StiffnessNm/arcmin4.85Max Input Speedrpm6000Rated Input Speedrpm3500NoisedB≤60Life timeh20000Full Load Efficiency%L1≥96%, of Output Torque DegreeIP65Operating Temp-10℃~~90℃PaymentDelivery detailsTerms of salesAbout usContact usPayment
