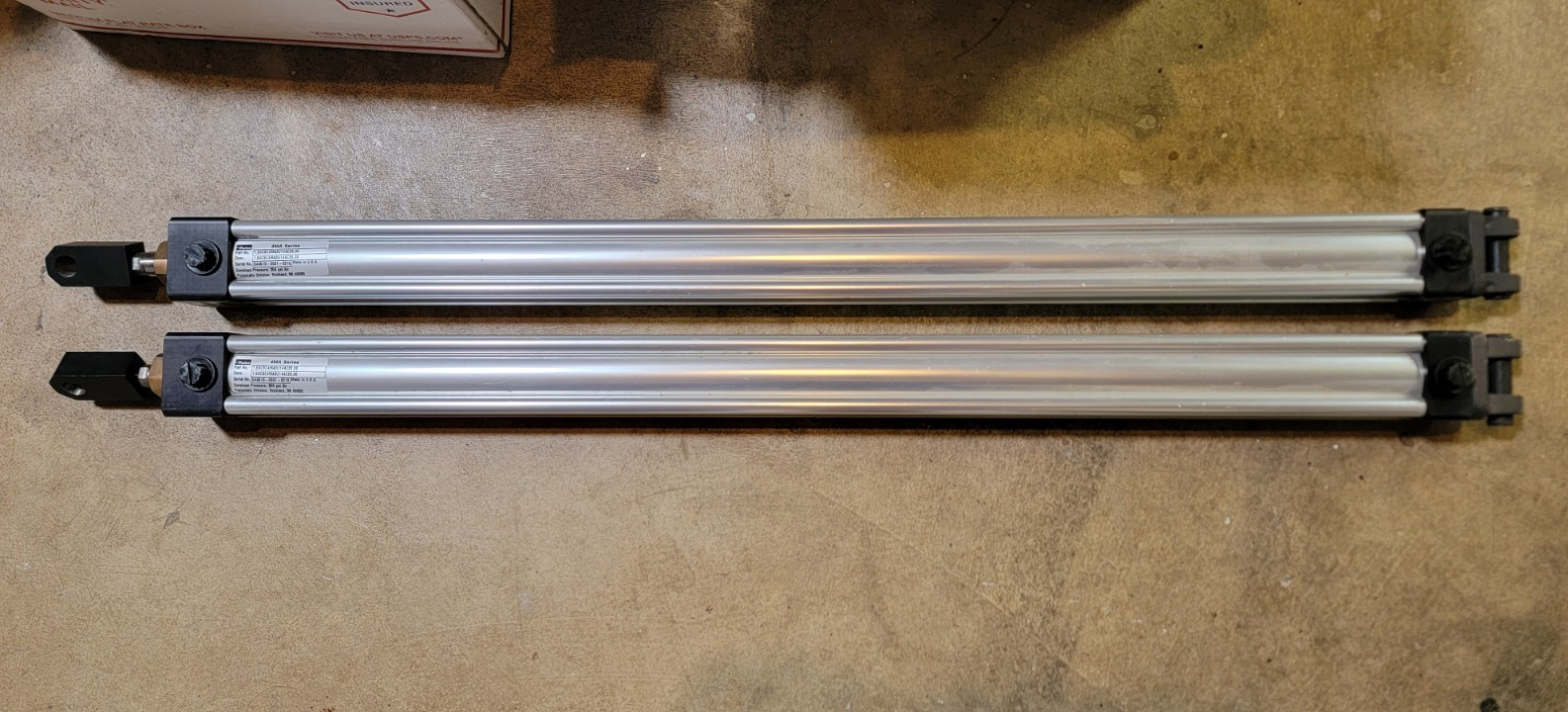

Parker 4MA Pneumatic Cylinder. 1.50\" Bore x 26\" Stroke 250 PSI Double-Acting. X2:
$100.00
Series: 4MA Series (Standard heavy-duty, aluminum body, NFPA interchangeable tie-rod profile).Bore Size: 1.50 inches (The diameter of the cylinder\'s inner barrel).Stroke Length: 26.00 inches (The maximum distance the piston rod can extend).Mounting Style (BC): Cap Detachable Clevis Mount (NFPA MP2 standard).Cushioning (C): Cushioned at both ends to reduce impact force when the rod extends or retracts fully.Piston Type (3): Equipped with standard lipseals and a built-in magnetic ring for magnetic piston proximity sensors.Ports (1): 3/8\" NPTF threaded pneumatic ports.Piston Rod (4): Standard 5/8\" diameter piston rod made from case-hardened, chrome-plated steel.Rod End Style (A): Standard small male UNF thread (7/16-20 thread size).Seals (C): Standard Nitrile (Buna-N) seals, rated for general use.Maximum Envelope Pressure: 250 psi Air (Safe operating limit printed directly on the label).
