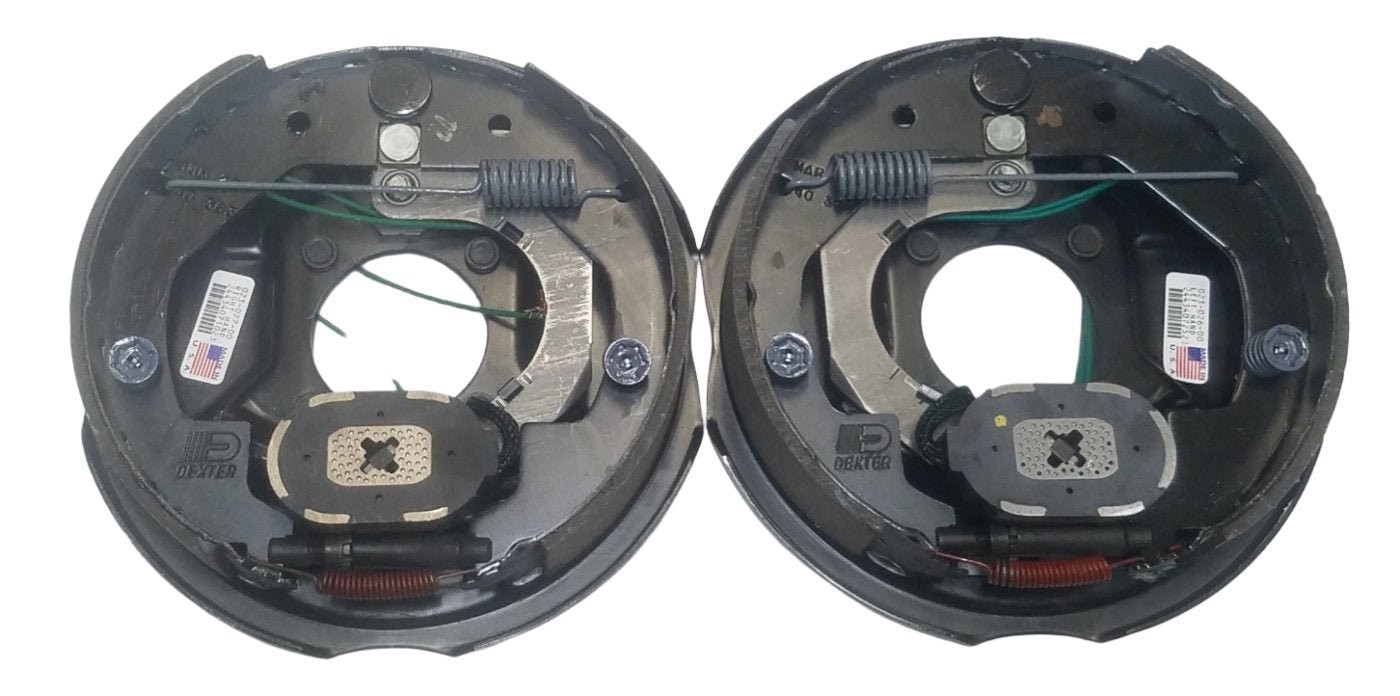

Dexter 10" x 2-1/4" Electric Brake Assembly Pair – 3,500 lb AxlesPart Number: 023-026-00 / 023-027-00
Complete left and right electric brake assemblies designed for 3,500 lb trailer axles. These 10" x 2-1/4" backing plate assemblies come fully pre-assembled, making installation quick and efficient—simply remove your old units and bolt these into place.
Ideal replacement for worn braking systems, restoring safe and consistent stopping performance without the need to rebuild individual components.
- Includes left-hand and right-hand brake assemblies
- 10" x 2-1/4" standard size
- Designed for 3,500 lb axle applications
- 4-bolt mounting pattern (hardware included)
- Compatible with 10" hub/drum setups
- New mounting nuts included
R&P Knowledge Hub
Electric trailer brakes operate using a magnet that engages the drum when voltage is applied. Over time, brake shoes, magnets, and internal hardware wear together. Replacing the complete backing plate assembly is often more efficient than servicing individual parts, ensuring proper alignment and reliable braking performance. Always verify axle rating, drum size, and bolt pattern before installation.
Specification
Details
Assembly Size
10" x 2-1/4"
Axle Rating
3,500 lbs
Mounting Pattern
4-Bolt
Bolt Spacing
2-7/8" center to center
Hub/Drum Compatibility
10" drums
Configuration
Left and Right Included
Hardware
Mounting nuts included
Confirm fitment before ordering to ensure compatibility with your axle and drum size.
