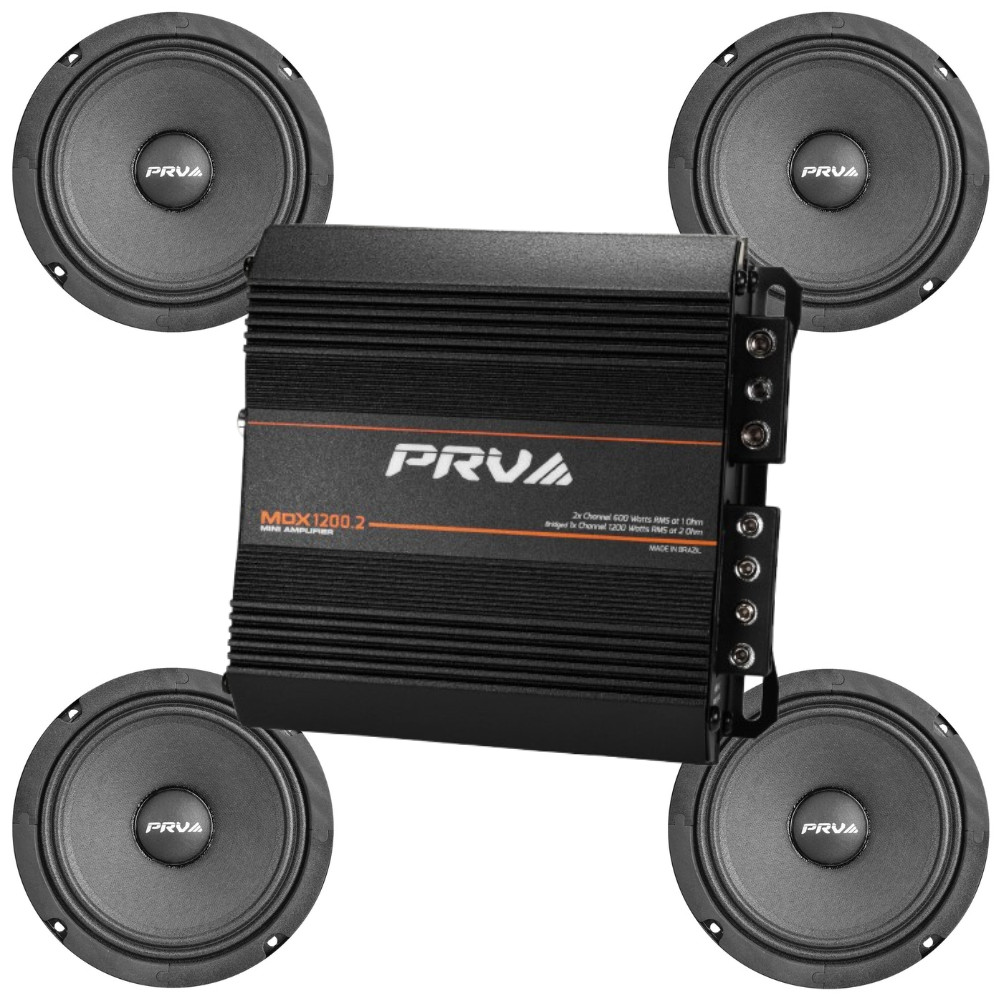

PRV AUDIO BUNDLE 4x 6MR200A MidRange Loudspeaker 1x MDX1200.2 1 Ohm Amp For Sale

PRV AUDIO BUNDLE 4x 6MR200A MidRange Loudspeaker 1x MDX1200.2 1 Ohm AmpBundle Description

Add clean, high-output midrange to your system with this PRV Audio combo: four 6MR200A 6.5\" midrange speakers paired with one MDX1200.2 1 Ohm mini 2-channel amplifier. Wire all four 8 Ohm speakers in parallel on the amp\'s bridged channel and the MDX1200.2 delivers clean, reliable power to the whole set from a single compact amp. Part of PRV\'s ALTO Series, the 6MR200A is voiced for natural, smooth sound while staying dynamic — a great choice for a 3-way front stage, satellite/two-way builds, or a high-output door speaker setup.

• 4x 6MR200A 6.5\" Midrange Loudspeakers
• 1x MDX1200.2 1 Ohm Mini 2-Channel Amplifier

6MR200A 6.5\" Midrange Loudspeakers
FeaturesPRV Audio’s ALTO Series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency.

• 6.5″ PRO audio Midrange speaker designed for Low Frequencies with shallow profile
• 200 watts RMS program power gives capability of high acoustical output with small amplifier
• Impressive choice for high output home, car, and professional audio systems – 8 Ohm Impedance
• Smooth response through the mid-bass and vocal range at at loudest volumes

To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression.

The 6MR200A midrange speaker is the evolution of the 6MR250A, this unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24″ mounting depth.

This professional midrange speaker is purpose-built to cover from 100 Hz to 6,000 Hz in three-way speakers, but also works great as a midrange in a bass guitar speaker, as well as a woofer in two-way satellite speaker concept or even as a high output car audio door speaker.

Technical DetailsGENERAL SPECIFICATIONSNominal Diameter6\" (152 mm)Nominal impedance8 OhmsRated AES Power Handling (RMS)100 WattsProgram Power200 WattsSensitivity 2.83V at 1m94 dBRecommended Hi Pass Crossover*
*For Full Power Handling150 Hz**
**12db Per Octave CrossoverFrequency Response at -10dB155 - 11,000 HzVoice Coil Diameter1.5\" (38 mm)Voice Coil WireCopperVoice Coil Winding Depth8.0 mmFormer MaterialKaptonMagnetic Gap Depth5.5 mmFrame MaterialStamped Steel
MDX1200.2 1 Ohm Mini 2-Channel AmplifierFeatures

The mini MDX1200.2 1 Ohm delivers 1200 Watts RMS power over 2 channels in a compact, modern amplifier.

Designed for high performance systems that require high power output but have very little space to spare, the MDX Series features exclusive and patented technologies that ensure a high definition sound quality in the most compact and reliable design.

Engineered to be the most efficient amplifier able to deliver impressive power output while minimizing the strain on your electrical system. This means you can enjoy the benefits of high power performance without draining your battery quickly.

• A small footprint mini heavy duty heatsink makes this micro amplifier easy to install anywhere in vehicles, motorcycles, 4-wheelers: Overall 6.50″ Width by 5.90″ Length and only 2.60″ Height.
• 2 x 600 watts at 1 Ohm TRUE RMS certified at full range output Digital Class D Brazilian Technology, gives you the benefit of wiring multiple speakers and dividing the power per channel.
• 1 Channel Bridged – Double the power output to your speakers by bridging two channels. 1x 1200 Watts RMS at a minimum impedance of 2 Ohm on bridged channel.
• The latest technology on surface mount components ensures best performance against vibration and superior sound quality, allowing enthusiasts and competitors to build the system of their dreams.

The ability to choose between 2 or 1 channel configurations is one of this amp’s best features!

The MDX Series is ideal for motorsport applications such as custom motorcycles, ATVs and Slingshots!

Its 1 Ohm channels allow you to install 16x 8 Ohm drivers or tweeters, 8 per channel in parallel, giving out 75 watts per component.

600 Watts at 1 Ohm per Channel
1200 Watts at 2 Ohm on Bridged Channel

High Output that takes up little space!

Featuring a mini heavy-duty heatsink, as well as a built-in cooling fan, this amplifier runs cool under even the most demanding playlists.

Speaker wire converter built-in, the HIGH LEVEL INPUT makes it easy to add this amplifier to any factory radio.

At only 2.70 lbs allows any custom system to achieve the highest performance and weight ratio possible.

Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.

• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.

• Always use OFC 4 AWG Copper wire for power and ground and minimum of 14 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.

• To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution.

The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

PRV Audio products are guaranteed for a period of ONE (1) YEAR from the date of original purchase against any manufacturer’s defects in material and workmanship under normal use.

Technical DetailsGENERAL SPECIFICATIONSImpedance1 Ohm per ChannelChannels2 ChannelRated RMS Power at 14.0 V at 1 Ohm2x 600 Watts RMSRated RMS Power at 14.0 V at 2 Ohm2x 380 Watts RMSBridged Rated RMS Power at 14.0 V at 2 Ohm1x 1200 Watts RMSAverage Efficiency85%Operating Voltage9 to 16 VoltsMusical Current Draw57 AMinimal Power Wire Input(OFC) 4 Gauge wiresBuilt-in CrossoverFixed HPF & LPF at 80 HzMinimal Speaker Wire Output12 GaugeFrequency Response(-3dB)10 - 20,000 HzMin. Input Sensitivity for Max. Output0.2 to 4vSignal InputRCA CablesSignal to Noise>90 dBProtection SystemHigh Temperature / Short circuit on OutputHeat Sink TypeMini Heavy Duty Cast AluminumDimensions ( Width x Depth x Height )6.50″ x 5.90″ x 2.60″Weight2.70 Lbs
