Product Details
Features:
Full-speed USB support using Windows standard drivers
Real-time execution
Processors run at maximum speeds
MPLAB IDE compatible (free copy included)
Built-in over-voltage/short circuit monitor
Firmware upgradeable from PC/web download
Totally enclosed
Supports low voltage to 5 volts (1.8v to 5.0v range)
Diagnostic LEDs (power, active, status)
Read/write program and data memory of microcontroller
Erase of all memory types (EEPROM, ID, configuration and program) with verification
Freeze-peripherals at breakpoint
Program up to 512K byte flash with the Programmer-to-Go
Basic Debugger System
The debugger system can be configured to use standard ICSP communication for both programming and debugging functions.
CAUTION: Do not change hardware connections while the PICkit3 or target is powered.Supported Devices
Refer to MPLAB IDE v8.76, the following devices are supported:PIC10F
PIC12F
PIC16F
PIC18F
PIC24F
dsPIC30
dsPIC39
dsPIC33
dsPIC32
11 Series Serial EEPROM Devices
24 Series Serial EEPROM Devices
24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025
25 Series Serial EEPROM Devices
25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024
93 Series Serial EEPROM Devices
25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C
,25LC/AA/C48A, 86B, 86C
MCP250xx CAN Devices
MCP25020, 25025,MCP25050, 25055PICkit3 Status LEDs
The Status LEDs indicate the status of the PICkit3.
Power (green) – Power is supplied to the PICkit3 via the USB port.
Active (blue) – The PICkit3 has connection to the PC USB port and the communication link is active.
Status:
Busy (yellow) – The PICkit3 is busy with a function in progress, such as programming.
Error (red) – The PICkit3 has encountered an error.

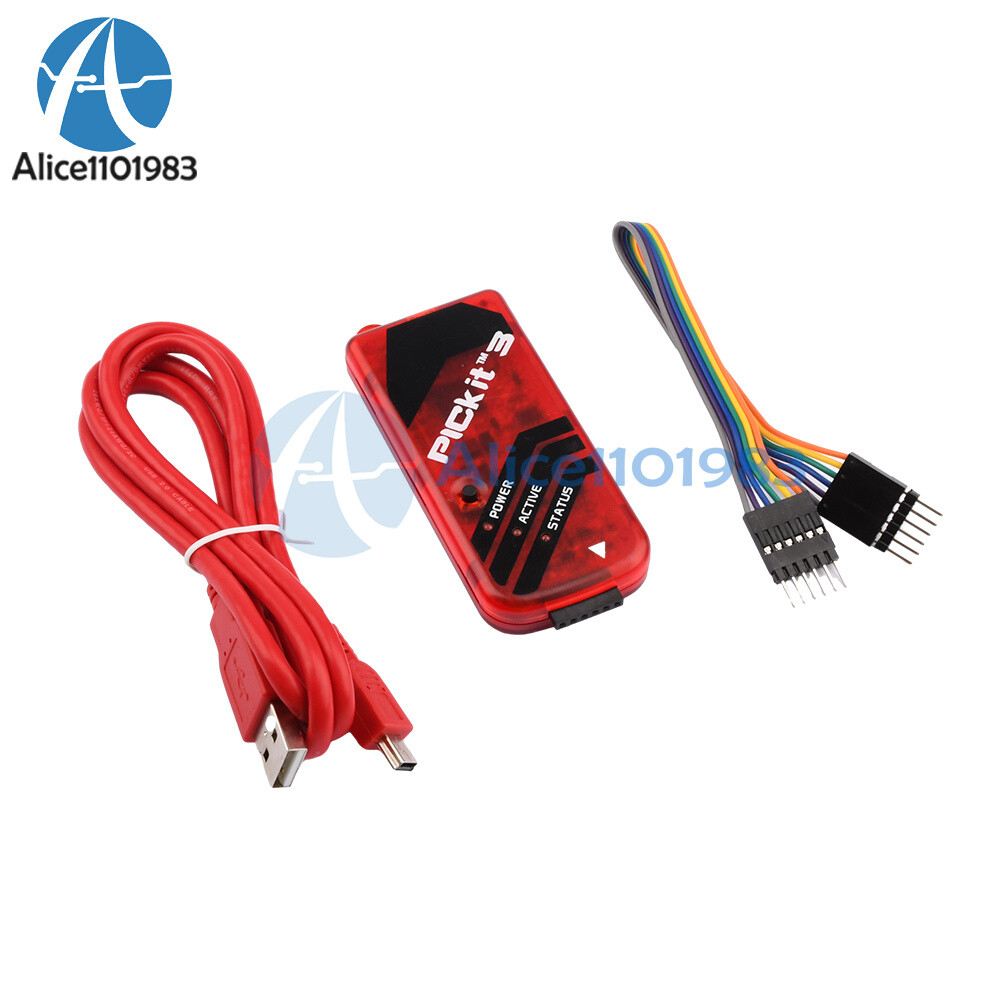

Package Include:1 x PICkit3 PIC KIT3 Debugger Programmer Emulator PIC Controller Development Board S
