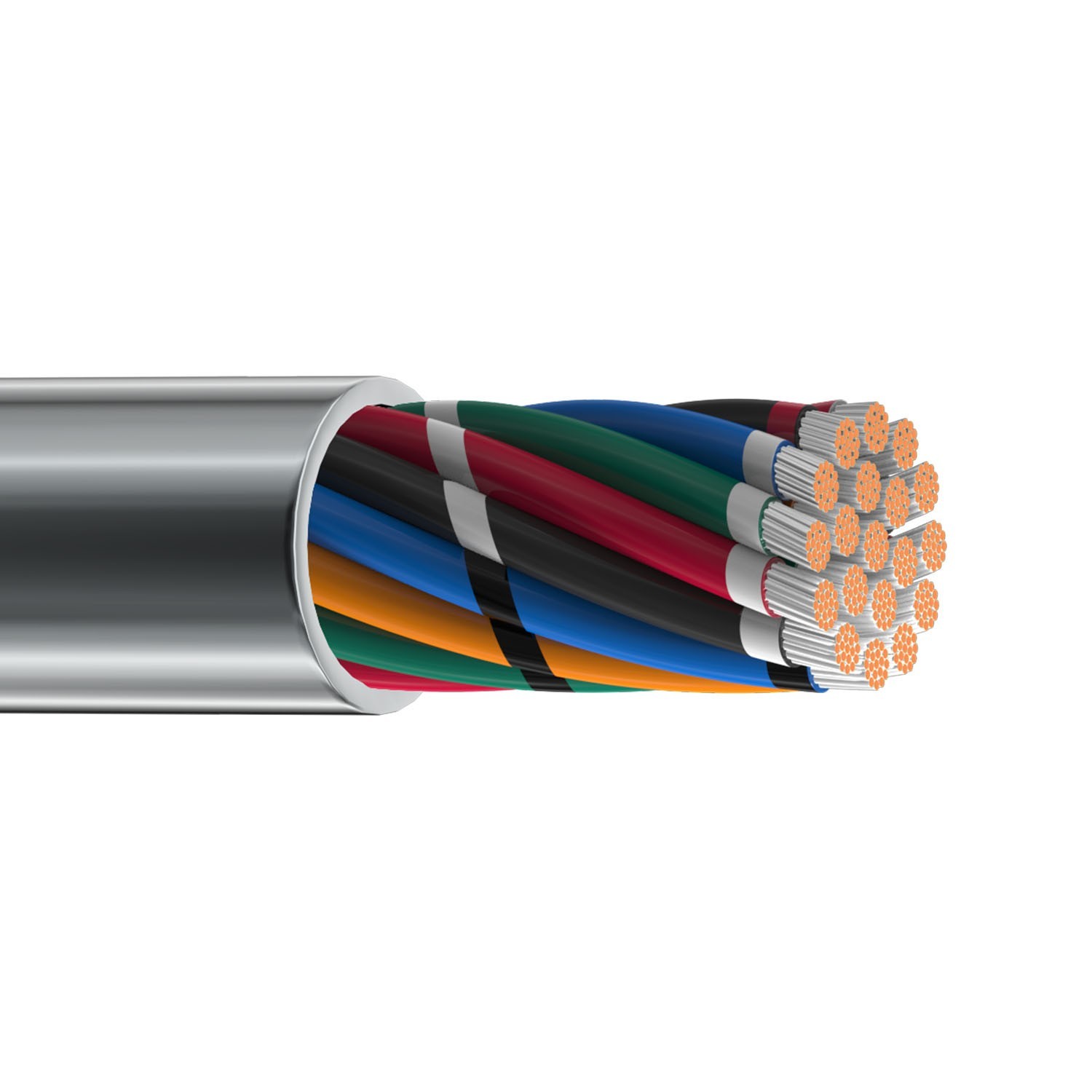

PER FOOT Belden 8619 18 AWG 19 Conductor Electronic Instrumentation Cable 300V Click Thumbnails to EnlargeDESCRIPTION
• Belden 8619 18 AWG 19 Conductor Electronic Instrumentation Cable 300V
APPLICATION
• Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Control (24v, …); Line Level Audio; Voice Communications; Panel Wiring
CONDUCTOR
• Tinned Copper
INSULATION
• Polyvinyl Chloride (PVC)
JACKET
• Polyvinyl Chloride (PVC)
TEMPERATURE
• UL Temperature: 60°C
• Operating Temperature: -20°C to 60°C
STANDARDS & COMPLIANCES
•Environmental Suitability: Indoor
• Sustainability:CA Prop 65
• Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
• CPR Compliance:CPR Euroclass: Eca
•NEC / UL Compliance: Article 800, CMG
•AWM Compliance: AWM Compliance
• CEC / C(UL) Compliance: CMG
•European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
•UK Regulation Compliance: UKCA Mark
• APAC Compliance:China RoHS II (GB/T 26572-2011)
PRODUCT SPECIFICATIONSSize AWG 18Number of Conductors 19Number of Strands 19Insulation Thickness (inch)0.018Jacket Thickness (inch)0.045Overall Diameter (inch)0.490Weight (lbs/1000ft)172
