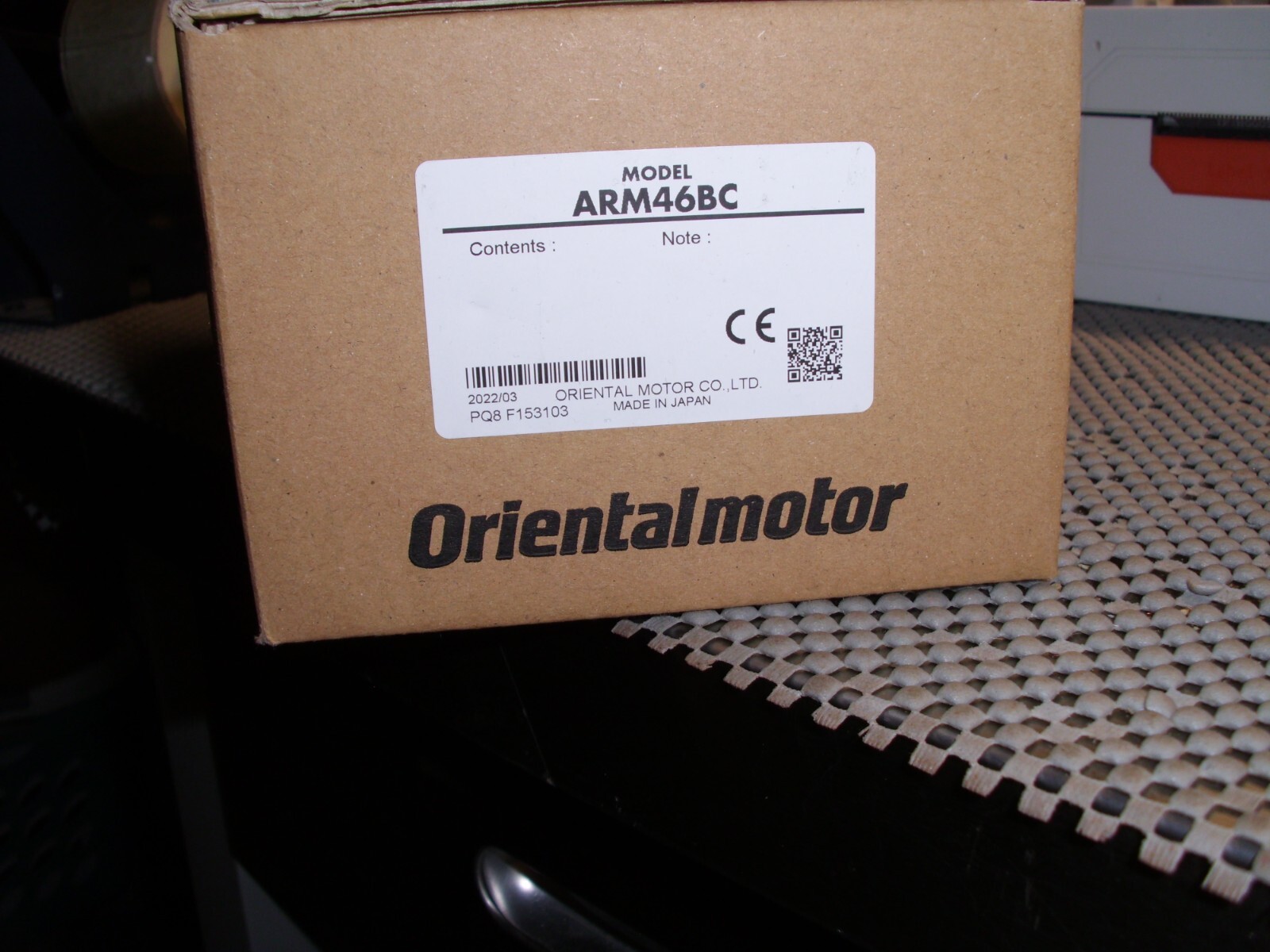

Oriental Motor ARM46BC, 1.65 in. (42 mm) AR Series Closed Loop Stepper Motor For Sale

The AR Series stepper motor adopts our αSTEP technology closed loop control so the motor does not lose synchronism even when subjected to abrupt load fluctuation or acceleration. Requires αSTEP AR Series (AC Input) Driver.

• Driver sold separately
• Designed for continuous operation
• Lower heat generation
• Low vibration
• High response
• No hunting
• No gain tuning
• Product LineOriental Motor®Motor TypeClosed LoopFrame Size1.65 inMotor Length2.68 in.Driver Voltage Input PowerACSpeed-Torque Characteristics
  Speed - Torque Characteristics
  Holding Torque42 oz-inShaft/Gear TypeRound Shaft with Flat (No Gearhead)ShaftDoubleElectromagnetic BrakeNot EquippedResolution (Resolution Setting: 1000 P/R)0.36 °/PulseRotor Inertia0.32 oz-in²RoHS CompliantThese products do not contain substances that exceed the regulation values in the RoHS Directive.Safety StandardsULCSAENCECE MarkingLow Voltage DirectivesEMC DirectivesInsulation ClassClass B [130ºC (266ºF)]Insulation Resistance100 MΩ or more when 500 VDC megger is applied between the following places:
  Case - Motor and sensor windingsDielectric StrengthSufficient to withstand the following for 1 minute:
  Case - Motor and sensor windings 1.5 kVAC 50 Hz or 60 HzAmbient Temperature-10 ~ 50ºC (14 ~ 122ºF) (non-freezing)
  (when a heat sink of a capacity at least equivalent to an aluminum plate with a size of 9.84 x 9.84 in., 0.24 in. thick is installed.)Ambient Humidity85% or less (Non-Condensing)Operating AtmosphereNo corrosive gases, dust water or oilDegree of ProtectionIP20Stop Position Accuracy±4 arc minutes (±0.067º)Shaft Runout0.05 mm (0.002 in.) T.I.R.Concentricity0.075 mm (0.003 in.) T.I.R.Perpendicularity0.075 mm (0.003 in.) T.I.R.Permissible Overhung Load0 in. from Shaft End = 7.8 lb0.2 in. from Shaft End = 9.9 lb0.39 in. from Shaft End = 13 lb0.59 in. from Shaft End = 19.1 lbPermissible Thrust Load1.03 lb
