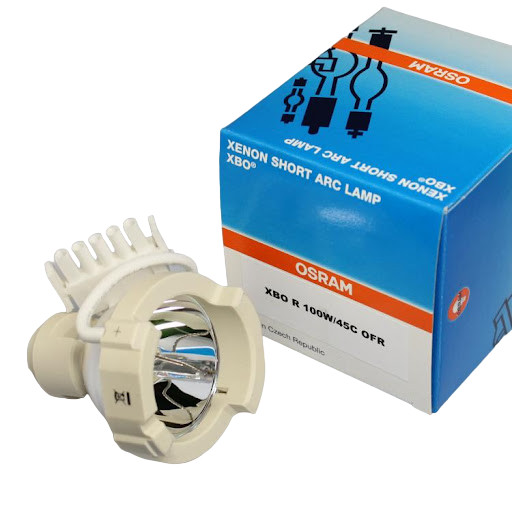

XBO R 100 W/45 CProduct characteristics
- Color Temperature: Approximately 6,000 K (Daylight)
- High color rendering index: Ra>95
- High arc stability
- Warm restart capability
- Dimmable
- Instant light on start
- Continuous spectrum in the visible range
Product benefits
- Very high luminance (point light source)
- Continuous color quality, no matter the lamp type and wattage
- Constant light color throughout the lamp life
- Long lamp life
Safety instructions
Due to their high luminance, UV radiation and high internal pressure in hot and cold states, XBO lamps can only be operated in built-in lamp cases. Always wear the protective clothing provided when handling these lamps. They can only be used as open lamps if appropriate safety measures are taken. Further information is available upon request or can be found in the leaflet included with the lamp or in the operating instructions.
The xenon lamp element is always under high pressure. It may explode if subjected to impact or damage. Therefore, spent XBO reflector lamps must be stored in an inaccessible location in the supplied case or under a protective cover until they are sent for disposal.
Technical DataElectrical DataRated power
10000W
Lamp voltage
12...14 V
Lamp current
70…74 A
Current type
Direct current (DC)
Lamp power
85 W
rated power
10000W
Luminotechnical DataFocus length
45,0 mm
Dimensions and weightMounting length
77,0 mm
Cable length
1250
Diameter
640 mm
Life ExpectancyMedium life
500 h
AttributesCooling
Forced cooling
Operating position
p20
Application
Other
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)Date of Declaration
05-03-2024
Primary Article Identifier
4050300367767
Candidate List Substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe Use Instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database
