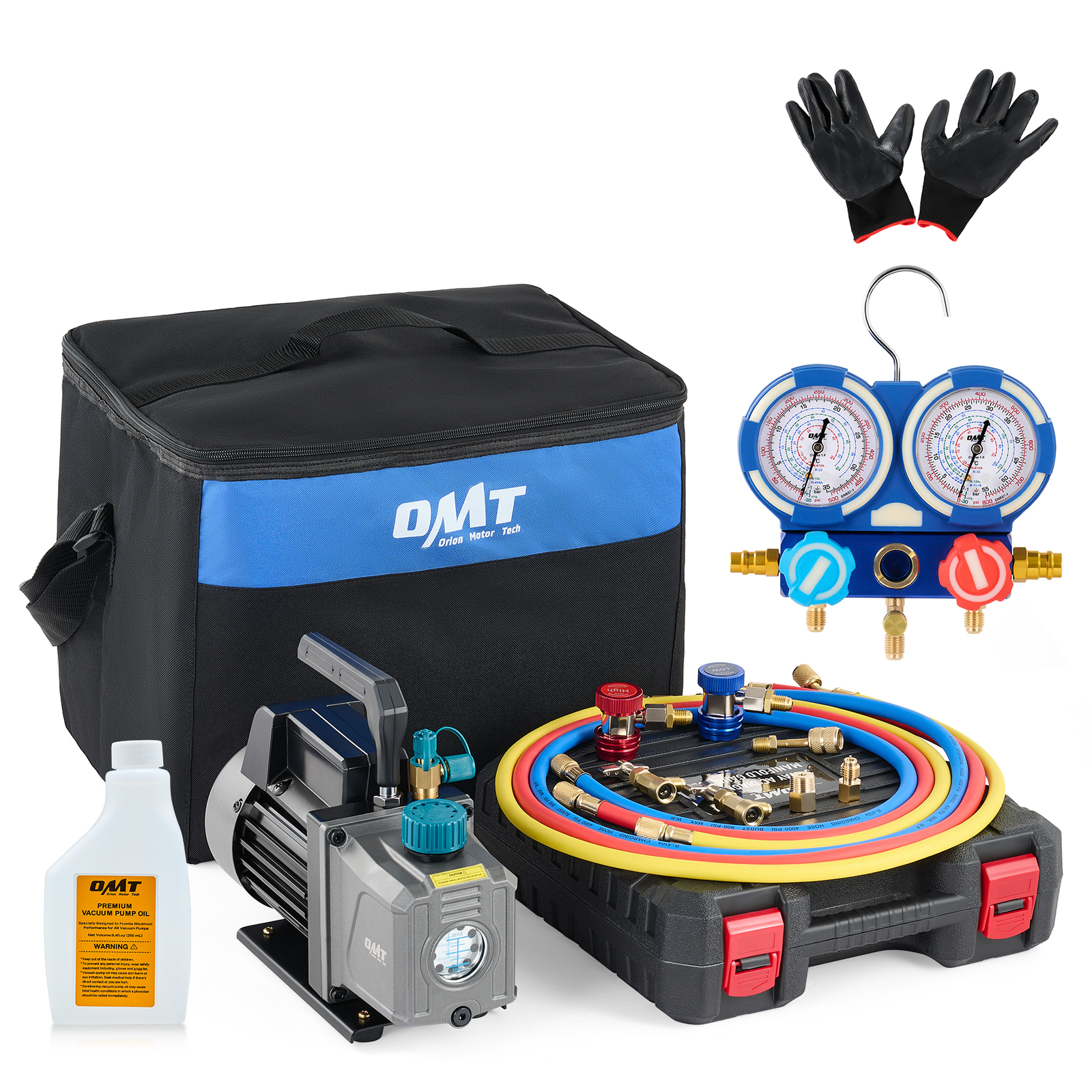

OMT Combo 3,5CFM 1/4hp Air Vacuum Pump HVAC Refrigeration AC Manifold Gauge Set For Sale

• ALL-COPPER MOTOR
• COMPACT & PORTABLE
• MINIMAL NOISE
• WIDE COMPATIBILITY
• MULTIPURPOSE OIL CAP

ALL-COPPER MOTOR

COMPACT & PORTABLE

MINIMAL NOISE

WIDE COMPATIBILITY

MULTIPURPOSE OIL CAP

• 3-WAY GAUGE SET
• SHOCKPROOF GAUGE
• PRESSURE RESISTANCE HOSES
• 4-LAYER NYLON BARRIERS

3-WAY GAUGE SET

SHOCKPROOF GAUGE

PRESSURE RESISTANCE HOSES

4-LAYER NYLON BARRIERS

• FAST HEAT DISSIPATION
• CONVENIENT SIGHT GAUGE
• EASY OIL DRAINAGE
• SHOCKPROOF BASE
• BUILT TO LAST

FAST HEAT DISSIPATION

CONVENIENT SIGHT GAUGE

EASY OIL DRAINAGE

SHOCKPROOF BASE

BUILT TO LAST

• R134A QUICK COUPLERS
• R134A CAN TAPS

R134A QUICK COUPLERS

R134A CAN TAPS

Specifications

• Material: Aluminum Alloy, A3 Steel, Copper, Rubber, Plastic
• Rated Power: 1/4 hp (186W)
• Ultimate Vacuum: 37.5 Microns (5 Pa)
• Evacuation Speed: 3.5 cfm (0.1 m3/m)
• Compatible Refrigerants: R134a, R404a, R22, R410a
• Low-Pressure Gauge Range: -15 to 500 psi (-1 to 34 Bars)
• High-Pressure Gauge Range: -15 to 800 psi (-1 to 55 Bars)
• Max. Hose Pressure: 3000 psi (207 Bars)
• Hose Length: 4 ft. (1.2 m) ea.
• Reservoir Capacity: 7.9 fl. oz. (225 mL)
• Included Oil Volume: 8.5 fl. oz. (250 mL)
• Net Weight: 19.8 lb. (9 kg)

Package List

• 1 x Vacuum Pump
• 1 x Gauge Set
• 1 x Evacuation & Charging Hose
• 1 x Low-Pressure Hose
• 1 x High-Pressure Hose
• 1 x Low-Pressure Quick Coupler
• 1 x High-Pressure Quick Coupler
• 1 x 1/4 in. to 3/8 in. Adapter
• 2 x R410a Adapters
• 1 x Vacuum Pump Oil
• 1 x Pair of Work Gloves
• 1 x Tape
• 1 x Puncture Style R134a Tap
• 1 x Self-Sealing Style R134a Tap
• 1 x Carry Bag
• 1 x Blow-Molded Case
• 1 x Instructions

• Complete HVAC Kit: This professional automotive air conditioner tool set includes a powerful 1/4 hp vacuum pump, a manifold gauge set, 3 hoses, a 1/4" to 3/8" adapter, two R410a adapters, two R134a taps, an 8.5 fl. oz. oil, and other accessories needed for easy refrigerant evacuation, recharging, and more!
• Durable Construction: Made of quality copper and lightweight aluminum alloy, our air rotary-vane vacuum pump provides efficient, dependable, and long-lasting service. The 3 color-coded hoses have a 4 foot reach and 3000 psi burst pressure.
• User-Friendly Designs: Our 3.5 cfm pump can draw your system down as low as 37.5 microns (5 Pa). Its innovative design prevents oil backflow and overheating for safe operation. The 7.6 fl. oz. reservoir includes a sight glass and a scale for easy monitoring of the oil level and its quality.
• Service-Ready Pump Set: The lubricating and absorptive oil comes included, along with one-size-fits-most gloves for quick and clean replacement. The dual ports and adapters allow this set to handle any low-tonnage HVAC systems using R22, R134a, R404a, or R410a coolants.
• Transport Between Jobs: Weighing only around 20 pounds, this vacuum pump and gauge kit comes with a blow-molded case and custom carry bag to keep everything organized and easy to store and transport between jobs.

• ALL-COPPER MOTOR
• COMPACT & PORTABLE
• MINIMAL NOISE
• WIDE COMPATIBILITY
• MULTIPURPOSE OIL CAP

ALL-COPPER MOTOR

COMPACT & PORTABLE

MINIMAL NOISE

WIDE COMPATIBILITY

MULTIPURPOSE OIL CAP

• 3-WAY GAUGE SET
• SHOCKPROOF GAUGE
• PRESSURE RESISTANCE HOSES
• 4-LAYER NYLON BARRIERS

3-WAY GAUGE SET

SHOCKPROOF GAUGE

PRESSURE RESISTANCE HOSES

4-LAYER NYLON BARRIERS

• FAST HEAT DISSIPATION
• CONVENIENT SIGHT GAUGE
• EASY OIL DRAINAGE
• SHOCKPROOF BASE
• BUILT TO LAST

FAST HEAT DISSIPATION

CONVENIENT SIGHT GAUGE

EASY OIL DRAINAGE

SHOCKPROOF BASE

BUILT TO LAST

• R134A QUICK COUPLERS
• R134A CAN TAPS

R134A QUICK COUPLERS

R134A CAN TAPS

Specifications

• Material: Aluminum Alloy, A3 Steel, Copper, Rubber, Plastic
• Rated Power: 1/4 hp (186W)
• Ultimate Vacuum: 37.5 Microns (5 Pa)
• Evacuation Speed: 3.5 cfm (0.1 m3/m)
• Compatible Refrigerants: R134a, R404a, R22, R410a
• Low-Pressure Gauge Range: -15 to 500 psi (-1 to 34 Bars)
• High-Pressure Gauge Range: -15 to 800 psi (-1 to 55 Bars)
• Max. Hose Pressure: 3000 psi (207 Bars)
• Hose Length: 4 ft. (1.2 m) ea.
• Reservoir Capacity: 7.9 fl. oz. (225 mL)
• Included Oil Volume: 8.5 fl. oz. (250 mL)
• Net Weight: 19.8 lb. (9 kg)

Package List

• 1 x Vacuum Pump
• 1 x Gauge Set
• 1 x Evacuation & Charging Hose
• 1 x Low-Pressure Hose
• 1 x High-Pressure Hose
• 1 x Low-Pressure Quick Coupler
• 1 x High-Pressure Quick Coupler
• 1 x 1/4 in. to 3/8 in. Adapter
• 2 x R410a Adapters
• 1 x Vacuum Pump Oil
• 1 x Pair of Work Gloves
• 1 x Tape
• 1 x Puncture Style R134a Tap
• 1 x Self-Sealing Style R134a Tap
• 1 x Carry Bag
• 1 x Blow-Molded Case
• 1 x Instructions

• Complete HVAC Kit: This professional automotive air conditioner tool set includes a powerful 1/4 hp vacuum pump, a manifold gauge set, 3 hoses, a 1/4" to 3/8" adapter, two R410a adapters, two R134a taps, an 8.5 fl. oz. oil, and other accessories needed for easy refrigerant evacuation, recharging, and more!
• Durable Construction: Made of quality copper and lightweight aluminum alloy, our air rotary-vane vacuum pump provides efficient, dependable, and long-lasting service. The 3 color-coded hoses have a 4 foot reach and 3000 psi burst pressure.
• User-Friendly Designs: Our 3.5 cfm pump can draw your system down as low as 37.5 microns (5 Pa). Its innovative design prevents oil backflow and overheating for safe operation. The 7.6 fl. oz. reservoir includes a sight glass and a scale for easy monitoring of the oil level and its quality.
• Service-Ready Pump Set: The lubricating and absorptive oil comes included, along with one-size-fits-most gloves for quick and clean replacement. The dual ports and adapters allow this set to handle any low-tonnage HVAC systems using R22, R134a, R404a, or R410a coolants.
• Transport Between Jobs: Weighing only around 20 pounds, this vacuum pump and gauge kit comes with a blow-molded case and custom carry bag to keep everything organized and easy to store and transport between jobs.

AC VACUUM PUMP & GAUGE SET

Model

3.5CFM&1/4HP

3.5CFM&1/4HP

4.0CFM&1/3HP

4.0CFM&1/3HP

Rated Pump Power

1/4 hp (186W)

1/4 hp (186W)

1/3 hp (248W)

1/3 hp (248W)

Flow Rate (FAD)

3.5 cfm (5.9 m³/h)

3.5 cfm (5.9 m³/h)

4 cfm (6.8 m³/h)

4 cfm (6.8 m³/h)

Refrigerant Compatibility

R12, R22, R134a, & R502

R134a, R404a, R22, & R410a

R12, R22, R134a, & R502

R22, R134a, & R410a

Included Hoses

3× 4 ft.

3× 4 ft.

3× 4 ft.

4× 5 ft.

Included Taps

Puncture&Self-Sealing R134a

Puncture&Self-Sealing R134a

Puncture&Self-Sealing R134a

Puncture&Self-Sealing R134a

Included Quick Couplers

R134a

R134a

R134a

R134a

Leak Detector Included

×

×

×

√
