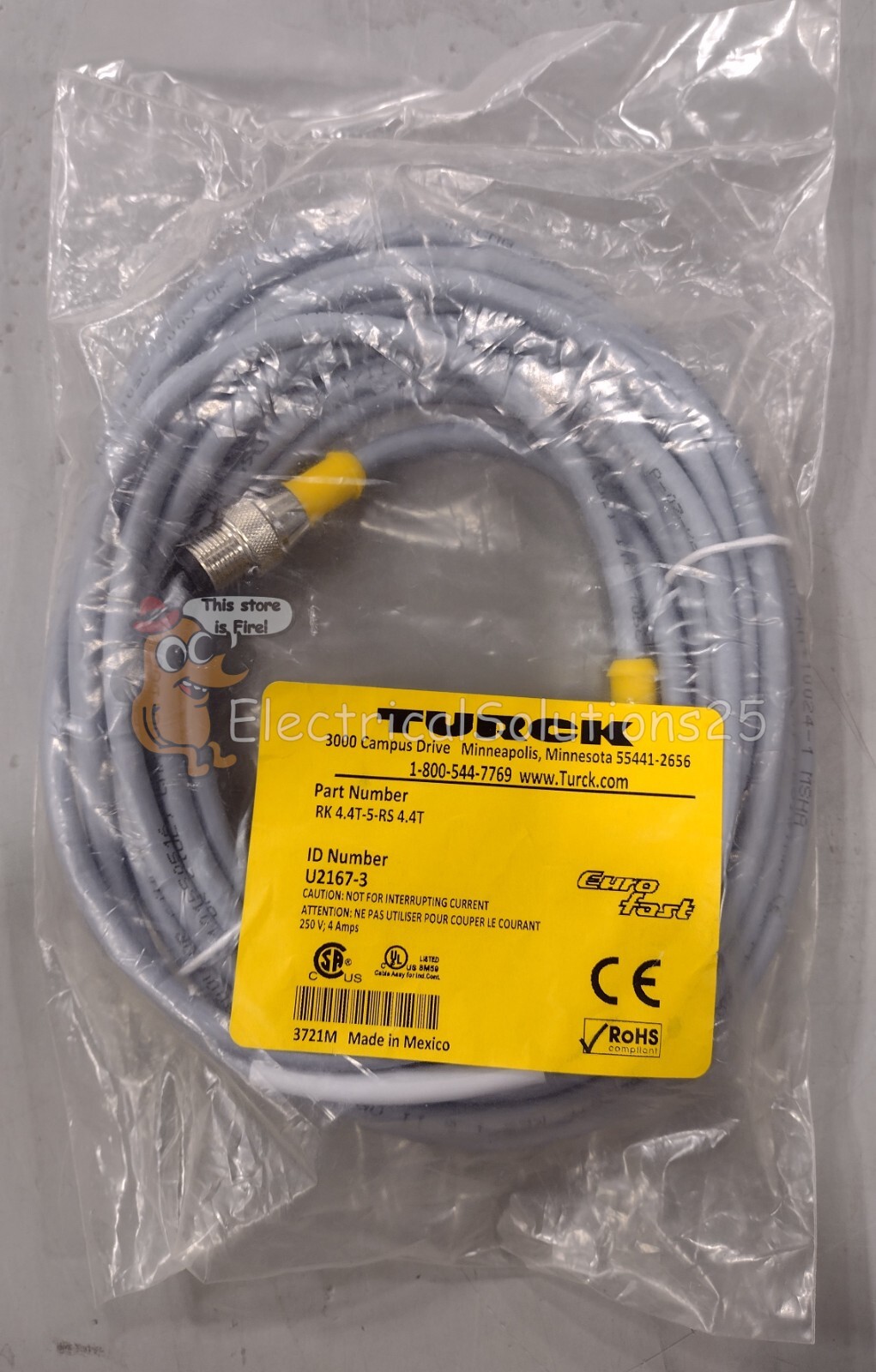

New Turck RK 4.4T-5-RS 4.4T Cordset U2167-3 4 Pin Straight - For Sale

• Free UPS Ground shipping

The Turck RK 4.4T-5-RS 4.4T is an actuator and sensor extension cable designed for industrial automation applications. It features straight M12 × 1 connectors on both ends—one female and one male—each with 4 pins and A-coding, adhering to IEC 61076-2-101 standards. This configuration facilitates secure and reliable connections between sensors, actuators, and control systems.

Features:

• Connectors: Straight M12 × 1 female and male connectors, 4-pin, A-coded
• Cable Length: 5 meters (approximately 16.4 feet)
• Cable Jacket: Gray PVC, providing flexibility and durability
• Conductor Size: 4 × 22 AWG tinned copper wires
• Temperature Range: -40°C to +105°C for static applications; 5°C to +105°C for dynamic applications
• Protection Rating: IP68 and IP69K when coupled, ensuring resistance to dust and high-pressure water
• Approvals: UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS compliant

Applications:

• Connecting sensors and actuators in industrial automation systems
• Machine building and robotics
• Control panels and instrumentation
• Environments requiring robust and reliable connectivity solutions

Specifications:

• Manufacturer Part Number: RK 4.4T-5-RS 4.4T
• Cable Diameter: 5.33 mm
• Conductor Insulation Material: PVC
• Conductor Colors: Brown (BN), White (WH), Blue (BU), Black (BK)
• Rated Voltage: 250 V
• Current Rating: 4 A
• Bending Radius (Static): ≥ 5 × Ø
• Bending Radius (Dynamic): ≥ 10 × Ø
• Mechanical Life: > 100 mating cycles
• Pollution Degree: 3

Please Note:

This summary provides an overview of the Turck RK 4.4T-5-RS 4.4T extension cable. For comprehensive details, including installation guidelines and safety considerations, please refer to the manufacturer's official documentation.
