Indication System: It features power and SWR (Standing Wave Ratio) indications, providing critical operational parameters for users to ensure effective communication.
High-Capacity Battery Life: Equipped with a 6000mAh high-capacity battery, it guarantees long-lasting outdoor communication needs without frequent charging.
Adjustable CW Tone and Sidetone: Both CW tone and sidetone volume can be adjusted to meet personalized requirements in different communication environments.
Durable Transmitter Tube Design: Utilizing IRF series transmitter tubes, which are less prone to damage compared to BS170, enhancing the device's service life.
Convenient Handheld Operation: With a side PTT button and built-in microphone, it supports handheld use, facilitating outdoor communication activities.
Wide Multi-Band Coverage: Supporting 8-band SSB/CW communication, covering the frequency range from 160m to 10m, meeting various communication needs.
Efficient DSP and SDR Capabilities: Built-in DSP and SDR functions provide advanced communication features such as automatic gain control, noise reduction, and voice triggering.
High Power Efficiency and Low Cost: Adopting EER (Electronic Emitter Regulator) technology, it improves power efficiency without the need for a bulky radiator, reducing costs.
Digital Software-Controlled SSB Signal: The SSB transmitter phase is fully controlled by digital and software, ensuring stable and reliable signal quality.
Optional Full-Digital SDR Receiver: An optional full-digital and software-based SDR receiver level provides higher communication performance and flexibility.
High Selectivity of Pre-Receiver: The pre-receiver features steep frequency adjustment characteristics, improving the selectivity and clarity of communication signals.
Powerful CW Decoder and CAT Support: It supports CW decoding and multiple keying modes, as well as CAT streaming for audio, key pressing, and display text, enhancing communication functionality and compatibility.
Economical and Easy-to-Build Transceiver: Simplified from the original QCX circuit, with a 50% reduction in installation components and no need for complex transformer windings or wiring procedures, lowering building difficulty and Supply: 13.8V 10W
Frequency Range: 160m-10m
Battery Capacity: 6000mAh
Filters: 4000Hz, 2500Hz, 1700Hz, 500Hz, 200Hz, 100Hz, 50Hz
Three independently switchable analog attenuators from the pre-receiver: 0dB, -13dB, -20dB, -33dB, -53dB, -60dB, -73dB
Mds receiver noise level: -135dbm (200hz bw) at 28mhz
Pre-receiver selectivity: steep frequency adjustment -45db/ ten times roll-off +/- 2khz
Blocking dynamic range: 20khz offset 123db, 2khz offset 78db
DSP functions: Controlling Automatic Gain Control (AGC), Noise Reduction (NR), Voice Activation (VA), Voice Activation for Transmission (VA xmit), Receiver Attenuator (ATT), Transmit (TX) Noise Gate, TX Drive Control, Volume Control, and DBM/S-Meter
Suitable Activities: For SOTA (Summit on the Air) and for POTA (Parks on the Air), as well as other scenarios where lightweight and efficient communication equipment is required
Interface Introduction:
Charging: Built-in lithium battery charging port. Only use the included charger! It is forofferden to use chargers by other producers.
DC13.8V/3A: External power interface
Key: Automatic key body connection (a, b, single key)
PA: External power amplifier, PTT signal
MIC: External microphone interface
UART: Serial communication (TS-480 compatible command)
SPK: External speakers

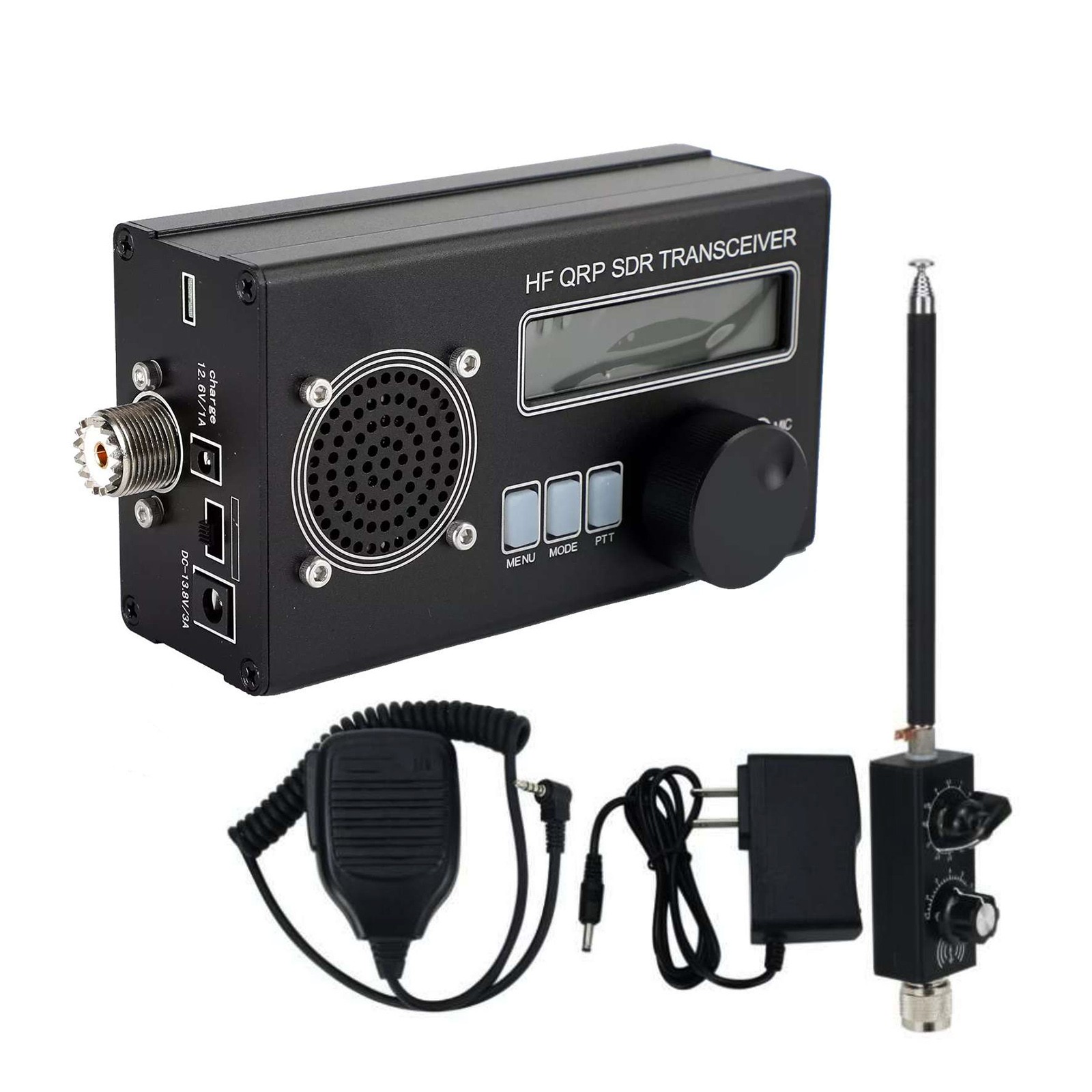

Package Included:
1 x Transceiver
1 x Power Adapter
1 x Mic
1 x Tuner
1 x Antenna
