Item Specifics:

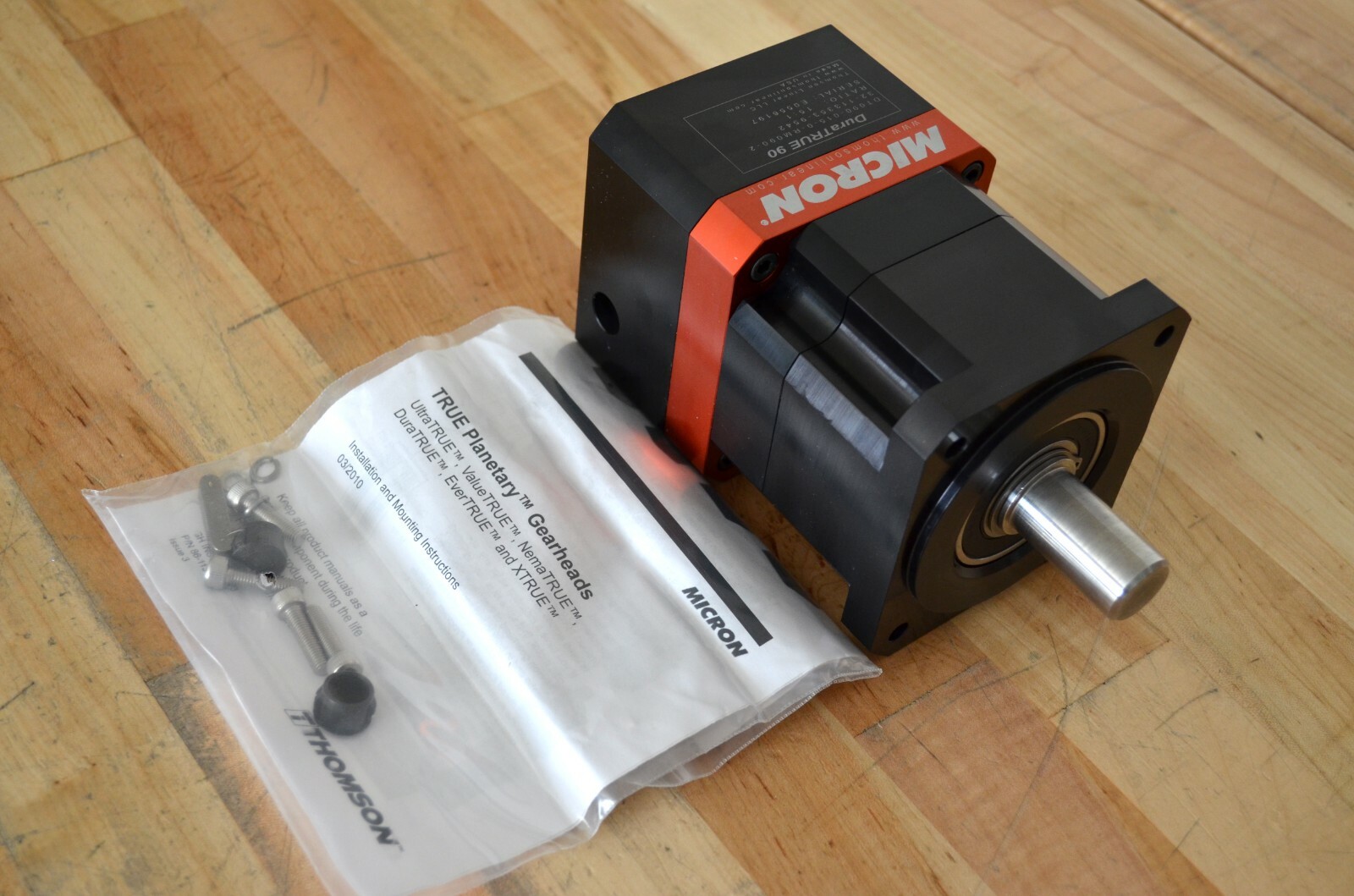

New Thomson DuraTRUE 90
Micron Planetary Gearhead,
Size 90mm , 15:1 Ratio
20mm dia. Output Shaft, 3/8"dia. Input
Includes Mounting Instructions + Hardware
Item Description:
This is a brand new Thomson DuraTRUE 90
planetarygearhead that is in perfect condition.
It is a model DT090-015 with a 15:1 ratio.
The frame sizeis 90mm with a 20mm dia. output shaft w/ key.
The input side of the gearhead is 90mm square with a 80mm dia.
'pilot' bore and mounting holes spaced on a 98.43mmbolt hole circle,
for usewith a 90mm frame motor that has a 3/8" dia. shaft.
(This will also work with nema34 motors with a 3/8" shaft.)
XT060-100 Spec's:
Torque @ 1,000 rpm's = 826in-lbs (93Nm)
Torque @ 3,000 rpm's = 702in-lbs (79Nm)
Torque @ 4,000 rpm's = 657in-lbs (74Nm)
Peak Output Torque = 1,479in-lbs (167Nm)
Torsional Stiffness = 43.7in-lbs/arc-min
Manufacturer Website Link:
