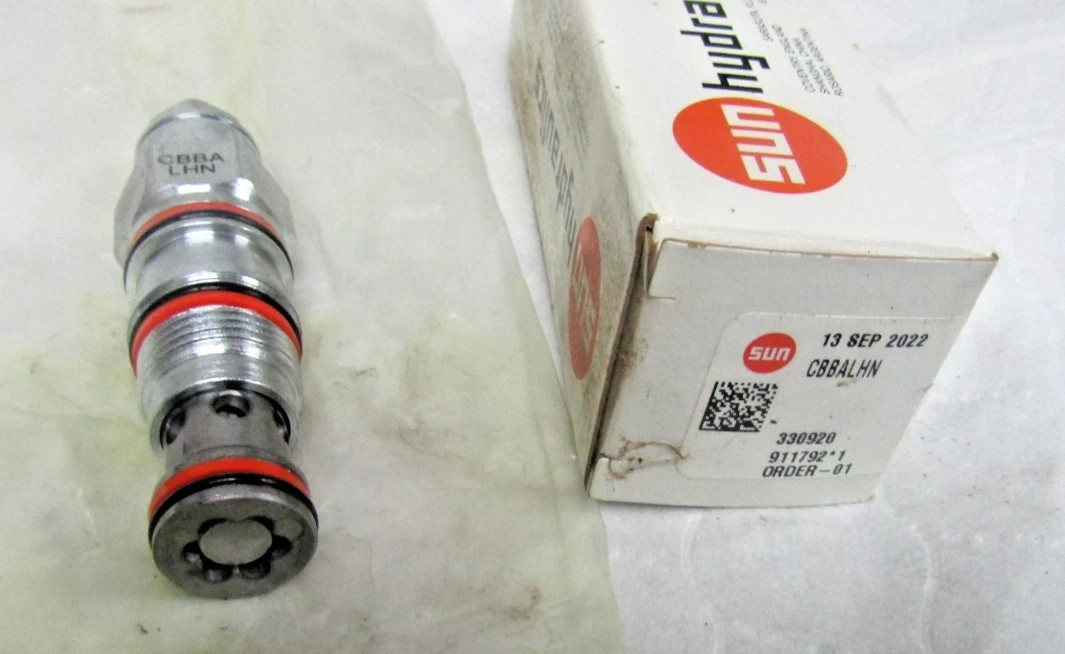

Sun Hydraulics CBBA-LHN 3:1 Restrictive Counterbalance Cartridge Valve
Genuine Sun Hydraulics restrictive counterbalance cartridge valve designed for load holding, motion control, and overrunning load applications in industrial and mobile hydraulic systems.
The integral check valve allows free flow toward the load, while the pilot-assisted counterbalance function controls flow from the load. This design helps provide controlled movement and load holding in compatible hydraulic circuits.
Product Details:
- Brand: Sun Hydraulics
- Part Number / MPN: CBBA-LHN
- Alternate Part Number: CBBALHN
- Model: CBBA
- Type: Counterbalance Cartridge Valve
- Operating Characteristic: Restrictive
- Pilot Ratio: 3:1
- Series: 1
- Capacity: 5 GPM / Approx. 20 L/min
- Cavity: Sun T-11A
- Functional Setting Range: 1,000–4,000 PSI / Approx. 70–280 Bar
- Standard Factory Setting: 3,000 PSI / Approx. 210 Bar
- Check Valve Cracking Pressure: 25 PSI / Approx. 1.7 Bar
- Maximum Setting: 4,000 PSI / 280 Bar
- Maximum Recommended Load Pressure at Maximum Setting: 3,075 PSI / 215 Bar
- Control Type: Standard Screw Adjustment
- Adjustment: 3.75 Turns
- Reseat: Greater Than 85% of Setting
- Seal Material: Buna-N / NBR
- Valve Hex Size: 7/8 in. / 22.2 mm
- Adjustment Screw Internal Hex: 5/32 in. / 4 mm
- Locknut Hex Size: 9/16 in. / 15 mm
- Installation Torque: 30–35 lbf-ft / 41–47 Nm
- Construction: Screw-In Hydraulic Cartridge
- Number of Ports: 3
This valve is designed to help control overrunning loads. The check valve allows free flow from port 2 to port 1, while the pilot-assisted relief section controls flow from port 1 to port 2. Pilot pressure at port 3 assists in opening the valve according to its 3:1 pilot ratio.
Condition: Please review all listing photos carefully for the exact cosmetic and physical condition of the item.
Only the item(s) shown in the listing photos are included unless otherwise stated.
Important: Please verify part number CBBA-LHN / CBBALHN, T-11A cavity, 3:1 pilot ratio, pressure range, flow requirements, and all other specifications before purchasing. Buyer is responsible for confirming compatibility and suitability for their specific hydraulic application.
Suitable for compatible industrial hydraulic systems, hydraulic power units, mobile equipment, lifting equipment, manufacturing machinery, agricultural equipment, construction equipment, and other load-control applications.
Manufacturer: Sun Hydraulics
MPN: CBBA-LHN / CBBALHN
Type: Restrictive Counterbalance Valve
Pilot Ratio: 3:1
Capacity: 5 GPM
Setting Range: 1,000–4,000 PSI
Cavity: T-11A
