NEW BODINE ELECTRIC, 4435, 1/4 Hp, 2500 Rpm, 101 Oz-in., 42A5FEPM, 130 Vdc., NEM For Sale

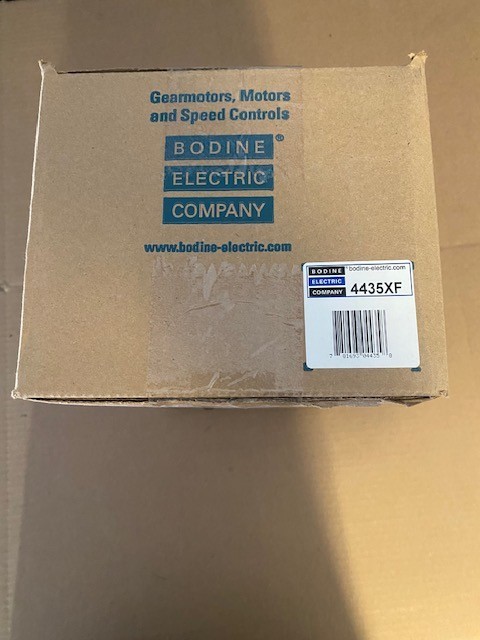

BRAND NEW, BODINE ELECTRIC MOTOR.BOX WAS OPENED TO TAKE PICTURES OF THE CONTENTS ONLY, BOX IS NEW, PRODUCT IS NEW, NEVER USED, BRAND NEW.SOLD AS IS, NO WARRANTY, NO RETURNS, FREE SHIPPING IN THE US.
4435, 1/4 Hp, 2500 Rpm, 101 Oz-in., 42A5BEPM, 130 Vdc., NEMA 42C Face Mount, With accessory Shaft, Permanent Magnet DC Motor
4435, 1/4 Hp, 2500 Rpm, 101 Oz-in., 42A5BEPM, 130 Vdc., NEMA 42C Face Mount, With accessory Shaft, Permanent Magnet DC Motor

• SPECIFICATIONSSTANDARD FEATURES
  • Totally enclosed non-ventilated (IP-40).
  • Class "B" insulation.
  • NEMA 42CZ models are class "F" rated.
  • External brush access for easy inspection and replacement.
  • Constant force brush springs for long life and quietness.
  • Pre-seated graphite or copper-graphite brushes for optimum performance and quiet operation.
  • Skewed armature for smooth low speed operation.
  • Oversized magnets resist demagnetization, stabilized to common strength for consistent performance.
  • High starting torque and self-braking.
  • Noise-tested ball bearings permanently lubricated.
  • Locked bearing minimizes Torque (oz-in):101Amps:1.8Motor HP:1/4KT (oz-in/A):60KE (V/krpm):44Winding Resistance (ohms):5.5Length XH (inch):6.72Weight (lbs):13Connection Diagram:07410101Radial Load:90Relates Products:trueWinding Inductance (mH):20Rotor Inertia (oz-in-sec):0.082Rated Voltage:130VProduct Type:42A5FEPMAccessory Shaft:YES
