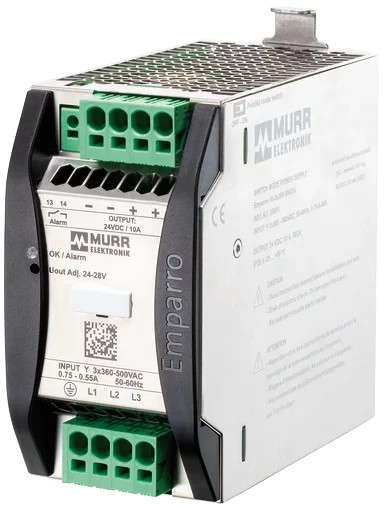

EMPARRO Power Supply 3-Phase; IN 360 - 500Vac; OUT 24-28Vdc/10A; power boost - for 5 seconds 50% additional power - substituted by new part(s) #MURR-85001AC/DC power supply unit (PSU) & DC/DC converter - SELV - adjustable output voltage - Murrelektronik (Power supplies - EMPARRO series) - 24Vdc...28Vdc / 10A / 240W output - with push-in spring-clamp connections - 3-phase or DC input - 450Vdc...745Vdc (500Vdc / 575Vdc / 600Vdc) / 324Vac...572Vac (380Vac / 400Vac / 415Vac / 440Vac / 480Vac / 500Vac / 525Vac nom.) input - DIN-rail mounting (65mm width) - order code #85691 - replaces MURR-85001Input voltage: 3 x 324 - 572 V AC/450 - 745 V DC
Input current: 0.75 A (3 x 360 V AC); 0.45 A (3 x 500 V AC)
Inrush current after 1 ms: max. 9 A
Power factor: 0.66 (3 x 500 V AC)
Frequency: 50 - 60 Hz
Input fuse (internal): 3 x 6.3 A (T)
Standards: EN 60950-1, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
Relative humidity: 5 - 95%, no condensation
Efficiency: 93.7% (3 x 400 V AC); 93.2% (3 x 480 V AC)
Dimensions H x W x D: 143x65x143 mm
Mounting method: DIN-rail mountable TH35 (EN 60715)
Temperature range: -40 - 70 degrees Celsius, - 70 degrees Celsius derating (storage temperature -40 - 85 degrees Celsius)
Output voltage: 24 V DC (SELV), /-1%; 24 - 28 V adjustable
Power Boost: Iout N x 150% (min. 5 s)
Output current: 12 A (45 degrees Celsius); 10 A (60 degrees Celsius); 7 A (70 degrees Celsius)
Mains failure bridging time: min. 45 ms (3 x 500 V AC); 10 A (24 V DC)
Ripple: max. 20 mVrms
Spikes: max. 50 mV p-p
Unit protection: short circuit and overload protected, permanently by 20% (to 45 degrees Celsius)
LED display: LED (green): OK; LED (red): overload, overheating or short-circuit
Parallel usage/serial usage: max. 3 units
The switch mode power supply is the core of your control cabinet - and Murrelektronik's regulated power supply units are the perfect regulators. Murr focuses on providing consistent, constant output voltages for your system - independent of how much input voltage fluctuates. They offer the most reliable solutions for almost any application, for example: in the machine tool building industry, in the processing industry or in the shipbuilding industry.
Murrelektronik's power supply units have many approvals and feature a wide input voltage range, which makes them suitable for global applications. Comprehensive product range with switch mode power supplies, transformers, buffer modules, redundancy modules, load circuit monitoring and much more. High flexibility with the right model for your needs. 100 % compatible. For global applications. Durable units ensures system availability.
Electrical dataParallel connectionYesNumber of devices parallel connection max.3Series connectionYesNumber of devices series connection max.3Electrical data | SupplyProtective measureSELVPower frequency50 ... 60 HzElectrical data | InputPhase number input3Input voltage AC min.324 VInput voltage AC max.572 VNominal input voltage AC3 × 360 V … 500 VInput voltage DC min.450 VInput voltage DC max.745 VNominal current AC3 × 0.75 A @ 360 V,0.55 A @ 500 VInrush current max.9 A @ 500 VPower factor3× 500 V ACEfficiency93.7 % @ 3× 400 V AC 93.2 % @ 3× 480 V ACCharacteristic back-up fuseInertiaFuse protection primary side internal6,3 AElectrical data | OutputOutput voltage adjustableYesOutput voltage DC24 VOutput voltage DC min.24 VOutput voltage DC max.28 VOutput current12 AMains failure bridging min.45 ms @ 3× 500 V ACPower Boost150 %Duration Power Boost min.5 sSpikes (s-s) max.50 mVRipple effective max.20 mVDevice protection | ElectricalDegree of protection (EN IEC 60529)IP20Overload protection outputYesShort-circuit protection outputYesMechanical data | Mounting dataHeight143 mmWidth65 mmDepth143 mmMounting methodgeschnapptSuitable for mounting typeMounting rail TH35, (EN 60715)Environmental characteristics | Electromagnetic compatibilityInterference emissionEN IEC 55011, IEC 61000-3-2Environmental characteristics | ClimaticOperating temperature min.-40 °COperating temperature max.70 °CDerating70 °CAmbient temperature (storage, transport)-40 °C … 85 °CRelative humidity (operation)5 % … 95 %Additional condition relative humidityno condensationConformityProduct standardEN IEC 61010-2-201, EN 61204-3ApprovalsSEMI F47compliantConnection dataConnection typesConnection type 1AlarmConnection type 2InputConnection type 3Input / OutputConnection type 1-1Family construction formterminalNo. of poles2GenderfemaleColor contact carriergreenConnectionSpring clamp terminals FKPIN 113PIN 214Connection type 2-2Family construction formterminalNo. of poles4GenderfemaleColor contact carriergreenConnectionSpring clamp terminals FKPIN 1PEPIN 2L 1PIN 3L 2PIN 4L 3Connection type 3-3Family construction formterminalNo. of poles4GenderfemaleColor contact carriergreenConnectionSpring clamp terminals FKPIN 1-PIN 2-PIN 3+PIN 4+Commercial dataURL tariff number85044095US-Customs tariff tariff number85044095EAN4048879538558Packaging unit1
