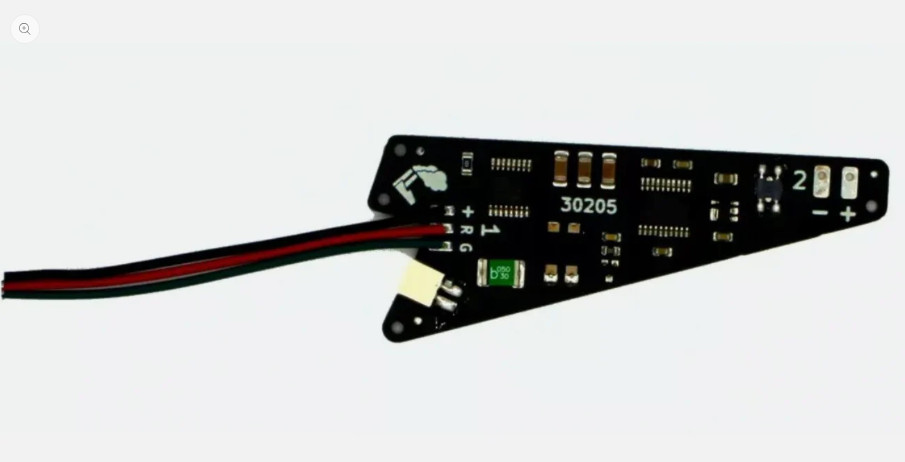

Marklin/TRIX Compatible MFX Switch Decoder for all C Track turnouts For Sale

This is a cost effective, quality German made alternative to Marklin74462 Marklin/TRIX Turnout Decoder for C-Track - at a fraction of a price!
Exactly the same functionality as 74462 Marklin decoder, including MFX automatic registration. Compare Marklin decoder at $50 vs Decoderwerk for $29!
Description

• The decoder has 2 outputs.
• Operation can be done with DCC or Märklin®Motorola.
• The decoder is suitable for controlling Märklin®or Trix® C-track turnouts and the optional turnout lantern.
• 100% quality control of all decoders
  Development and production in Germany
  We only use components from well-known brand manufacturers

Compatible

• DecoderThe decoder is the ideal alternative for the built-in digital decoders 74460, 74461 and 74462.
• Drives The decoder can be connected directly to the electric point drives 74490, 74491 and 74492.
• Märklin®C-TrackThe decoder can be inserted and connected directly into the following turnouts.
  • Left switch 24611
  • Switch right 24612
  • Slim switch left 24711
  • Slim switch right 24712
  • Curved switch left 24771
  • Curved switch right 24772
  • Curved switch left 24671
  • Curved switch right 24672
  • Double crossing switch 24624
• Trix C-Track:The decoder can be inserted and connected to the following turnouts. The required connecting cable is included.
  • Left switch 62611
  • Switch right 62612
  • Slim switch left 62711
  • Slim switch right 62712
  • Curved switch left 62671
  • Curved switch right 62672
  • Slim curved switch left 62771
  • Slim curved switch right 62772
  • Double crossing switch 62624

Voltage

• Build up
  • 9-24V track voltage
  The decoder is powered directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 1A current
  The outputs can be loaded with 1A and provide 9-24V DC voltage.
• Requirement
  • Quiescent current below 5mA
  The decoder itself requires less than 5mA in idle mode. The current consumption of the output depends on the connected device.
• Short circuitThe decoders are protected against short circuits with a self-resetting fuse.

Coupling

• Artificial intelligence?A little bit, anyway. The decoder features an automatic learning mode for addressing, or MFX (on CS3 select "Discover MFX"). For manual programming, all you have to do is press a button and call up the desired addresses on your central unit. Done.
• Remote control:The decoder can be configured directly at its location from a DCC central unit using Programming-on-Main. All CVs can be updated.
• InspectionThe decoder can be configured on a DCC programming track. All CVs can be read and written via Direct Mode.

Configuration

• StandardBy default, the output makes small steps with a switching pulse of 400ms.
• Let there be lightThe decoder supports the control of the switch lamp and automatically restores the last switching of the switch lamp when the decoder is started.
• ReversedThe switch output can be inverted. This allows, for example, opposing switches to be switched with the same address.
• Small steps:You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible, in small increments of 10 ms.

Installation

• Connections:The decoder is equipped with all the connecting cables for direct installation into a Märklin C-Track turnout.
  A suitable connecting cable is included for connecting Trix turnouts.
• MountingThe decoder can be easily mounted in the inner bed of a C-track turnout from Märklin or Trix.
