Magnetic Drill Press 1400W 13000N 810RPM 2\" Coring/Tapping/Drilling Machine For Sale

1400W Electric Magnetic Drill Press, 2922lbf/13000N Powerful Magnetic Force Mag Drill Press with 6 HSS Annular Drill Bits, 2\" Boring Diameter Stepless Speed Coring/Tapping/Drilling Machine for Metal Surface Working, Home Improvement Industry RailwayBullet Point

• High Power Motor--The electromagnetic drill with a 1400W all-copper wire motor has a strong driving force and can drill into various hard materials at a speed of 810 RPM; it has the excellent performance of stable speed, fast drilling, high temperature resistance without burning, and long service life.
• Efficient Cooling System--The portable drilling machine has a detachable integrated cooling system, and the body adopts a multi outlet design, which can efficiently dissipate heat, effectively protect the motor, and extend the service life of the motor and gear of the magnetic drill.
• Dual Coil Magnetic Drill Base--The electromagnetic base generates a strong force of 2922lbf/13000N at two pure iron anchoring endpoints, firmly locking the magnetic drilling machine and the slide rail to prevent deviation during the drilling process. The standby half wave mode of the magnetic base effectively reduces the functional consumption in the standby state of the magnetic base and prolongs its lifespan.
• Double Dovetail Guide Rails--The magnetic drill guide rail adopts a double dovetail groove design with high-precision structure, ensuring stable drilling and low friction coefficient, thereby reducing the wear of the magnetic drill bit. Equipped with an extended rocker, the height of the drill machine head can be easily controlled, making operation more convenient.
• Stepless Speed & Reversible Function --This drilling machine is set to 10 drilling speeds, and twisting the stepless speed control knob can smoothly adjust your drilling speed according to your requirements; Simultaneously configuring a reversible direction switch allows you to reverse the drilling direction during various drilling processes.
• High Quality Gears & Rotor Shaft--The secondary reduction gears forged from aluminum alloy have stronger load-bearing capacity and greater torque force. The rotor shaft made of copper-silver alloy has high hardness and good wear resistance, greatly improving the rigidity of the spindle and making the drill bit work stably.
• Strong Practicality--The powerful magnetic drill can be applied to stainless steel, steel plates, steel structures, hard plates, marble, granite, angle steel and other materials. It can be used for various industrial purposes and home maintenance scenarios such as steel structure bridge drilling, steel structure oil drilling platforms, shipbuilding, railway construction, bridge engineering, machinery manufacturing, etc.
• Quick-change Drill Bit: This magnetic drill spindle is equipped with a self-locking drill bit function, so there is no need to use wrench tools to disassemble and assemble the drill bit when replacing it. It makes your work more convenient and saves time and effort. (Model: WF21456-Z3840RE
• 1. Strong Driving Force: Excellent performance with stable rotational speed, fast drilling (810 RPM), high temperature resistance without burning, and long service life.
• 2. Effective Heat Dissipation：360 ° grille style air outlet design for increased air efficiency, both heat dissipation and dust prevention
• 3. 13000N Strong Magnetic Force: Strong magnetic adsorption, safe & reliable, capable of reverse suction/side suction/vertical 90 ° adsorption during operation.
• 4. Two-way Dovatail Guide Rail: It ensures the rigidity of the sliding part and can adjust the motor height as needed, with wear and high temperature resistance.
• 5. Multifunctional Magnetic Drill: Multi purpose drilling (0.1-0.6\"/ 3-16 mm) / tapping (M2-M14) / coring (2\"/ 50 mm) machine.
• 6. Precision Gears & Rotor Shafts: Precision manufactured gears and shafts with stable performance, high transmission accuracy, and strong WF21456-Z3840RE 1400W
• Power: 1400W
• Voltage: 110V
• Power Frequency: 60Hz
• Amperage: 10 Amps
• Power Source: Corded Electric (2m)
• Material: Metal
• Color: Orange & Grey Green
• Special Features: Overload Protection, Alloy Guide Rail
• Maximum Spindle Speed: 810 R/MIN
• Max. Coring Drill Diameter: 2\"/ 50 mm
• Twist Drilling Range: 0.1-0.6\"/ 3-16 mm
• Tapping Range: M2-M14
• Spindle Stroke: 4.3\"-8.3\" / 110-210 mm
• Magnetic Force(Base): 2922 lbf / 13000 N
• Magnetic Base Size: 7.09\" x 3.35\" x 1.97\"/18 x 8.5 x 5 cm
• Product Size(Full Installation): about 12.21\" x 10.63\" x 18.31\"/ 31 x 27 x 46.5 (L*W*H)
• Package size: 15.75\" x 8.66\" x 11.8\" / 40 x 22 x 30 cm (L*W*H)
• Item Weight: 26.02 lbs / 11.8 kg
• 28.22 lbs / 12.8 kg

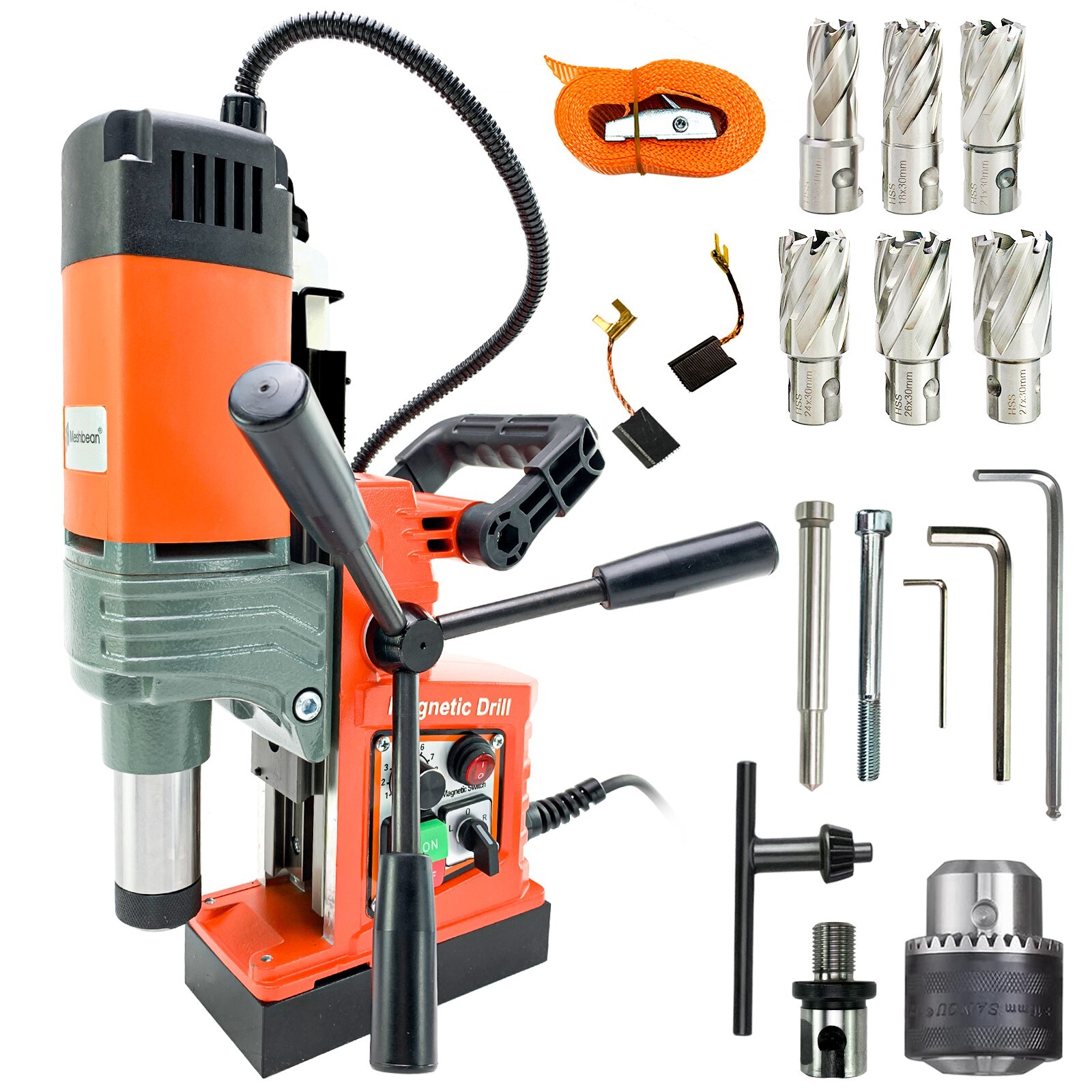

Package Includes

• 1 x Magnetic Drill ( WF21456-Z3840RE 1400W)
• 1 x Drill Chuck
• 1 x Drill Chuck Key
• 1 x Drill Chuck Adapter
• 3 x Hex Wrench
• 6 x Core Drill Bits (∅15/18/21/24/26/27mm x 30mm)
• 1 x Pilot Pin
• 1 x Bolt
• 2 x Carbon Brushes
• 1 x Safe Strap
• 1 x Coolant Tank & Stand & Hose
• 3 x Hand Crank
• 1 x Handles
• 1 x Manual
