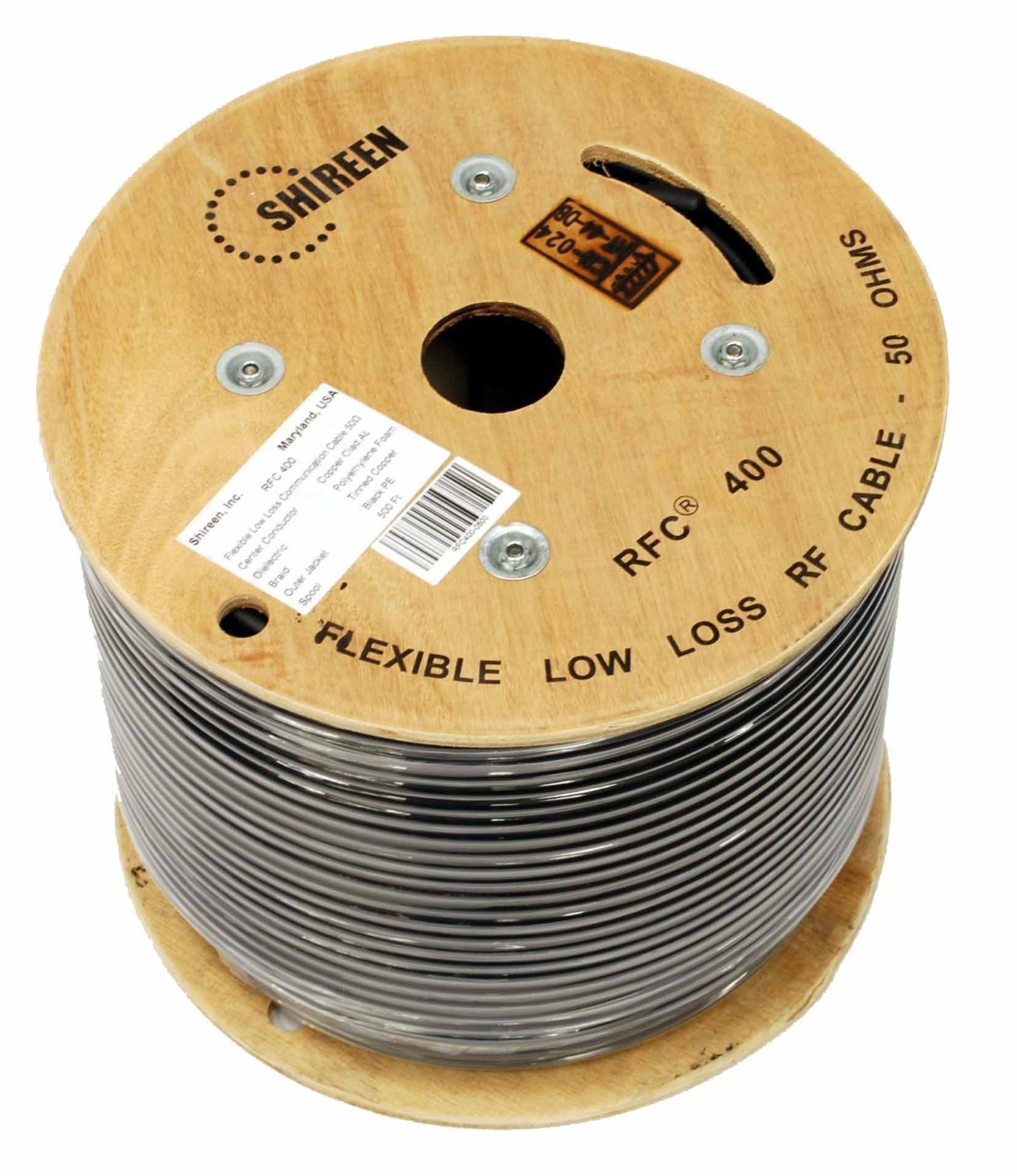

500\' Spool Ultra Low Loss 400 grade cableRFC400®
RFC400® cable is equivalent or better in specs than LMR400® and Cinta400®. Details specs are listed below:
To fulfill legal requirement, its hereby stated that: RFC® is registered trademark of Shireen Inc. Cintra400® is registered trademark of Andrew Corporation & LMR® is registered trademark of Times Microwave
Also available in UF (ultraflex) and DB (direct burial) & FR flavors at very competitive prices.
We carry the largest stock of coax cables. Special prices on skid, truck load and container qty..
Buy Factory Direct and Save
We also stock full range of RF connectors for this cable (Type N, TNC, RPTNC, SMA, RPSMA, BNC, FME etc.)
In addition to 500ft spools, also offered in 250ft &1000ft spools and cut lengths per order.
Need a free 1 ft sample sent? send us a note.
This is the lowest loss of any RG8/RG213 type cable. This is achieved through the use of a high velocity gas injected closed cell foam dielectric and bonded aluminum tape outer conductor. The UV protected black polyethylene jacket makes the cable rugged and resistant to the full range of outdoor environments.
Note: This is a new item and carries full manufacturer\'s warranty
Specifications: Impedance: 50 ohms Foamed Polyethylene 100% Bonded Aluminum Foil Tinned Copper Braid - CuSn Flame-retardant PVC Polyethylene Jacket Ft markings Centre Conductor mm 2.74 Solid CCA Insulation mm 7.24 1st Shielding Bonded Aluminum Foil 1st Outer Conductor mm 0.15 x 192 CuSn Outer Jacket mm 10.29 Min. Bending Radius mm 25.4 Tensile Strength kg 72.5 Attenuation (20 °C, dB/100 ft) f = 30 MHz 0.67 f = 50 MHz 0.88 f = 100 MHz 1.31 f = 150 MHz 1.52 f = 220 MHz 1.86 f = 450 MHz 2.71 f = 900 MHz 3.90 f = 1500 MHz 5.12 f = 1800 MHz 5.67 f = 2000 MHz 5.97 f = 2500 MHz 6.77 f = 3000 MHz 7.62 DC Resistance (Centre Conductor) ohm /km 3.07 DC Resistance (Outer Conductor) ohm /km 6.88 Insulation Resistance ohm /km 5000 Dielectric Strength Kv 1.6 Velocity ratio % 87% Peak Power Rating Kw 16 Cut Off Frequency GHz 16.2 Votage Withstand VDC 2500 Capacitance 78.4pF +/- 3 per M Screening factor at 1 - 1000MHz > 90dB Admissible ambient temperature °C -40°C to 80°C
