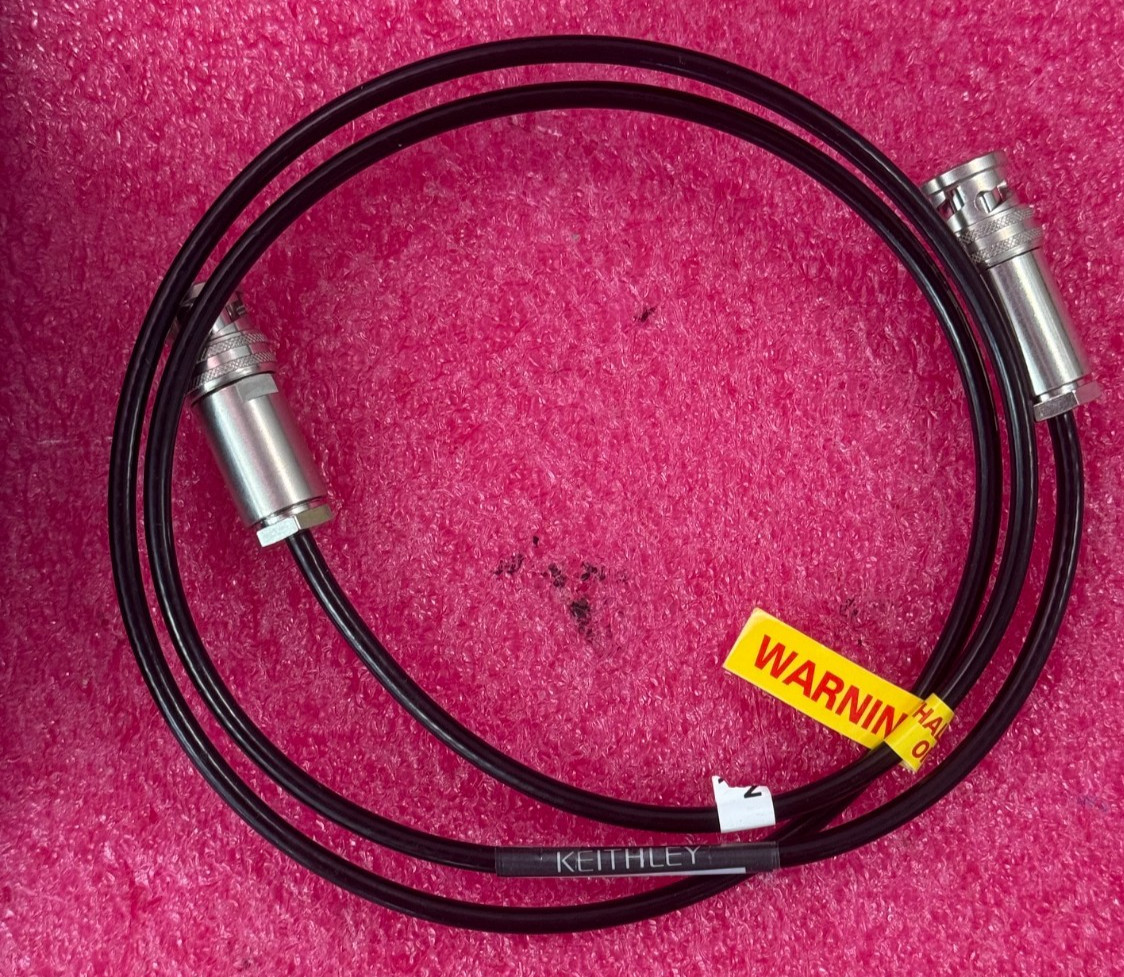

Keithley 7078-TRX-3 — Product Model 7078-TRX-3TypeLow‑noise three‑slot triaxial cableLength3 ft (0.9 m)ConnectorThree‑slot male triaxial connectors, both endsMaximum working voltage600 V peak center conductor to inner shield; 1,300 V peak center conductor and inner shield to outer shellMaximum current≈1 mA (typical rating for low‑current triax applications)Operating temperature0–50 °CRelative humidity0–70%Typical uses / compatibilityLow‑noise measurements and connections for source‑measure units, electrometers, picoammeters, and triax‑equipped instruments (examples: Keithley 2634B/2635B/2636B/2635A/2636A, 6220/6221, 6487, 6514, 6517A/6517B, 7072, 7174A).Key handling noteKeep connectors clean (remove dirt/oil) to maintain insulation resistance; clean with methanol and dry if contaminated.
Primary technical details and the compatibility list are documented in Keithley product literature and distributor datasheets.
