Made by Iscar.

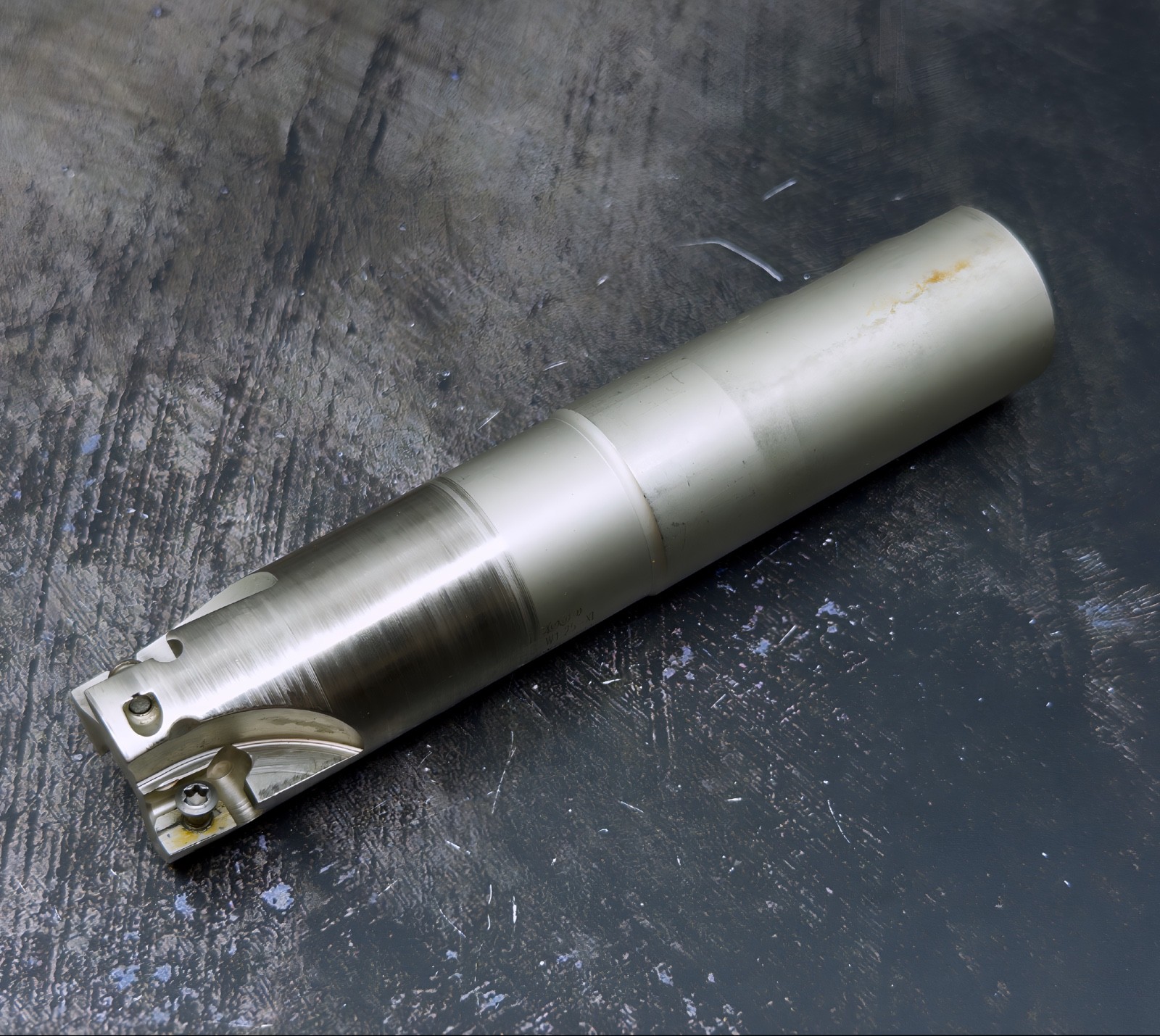

This is a used HELI2000 Square Shoulder Mill End Mill in GREAT condition. The edge of one of the pockets has a little bit of damage, but shouldn\'t affect the cut from what I can see.
Model: Diameter: 1-1/4\"
Depth of Cut: 0.39\"
Shank Diameter: 1-1/4\" Weldon flat
Usable Length: 3.96\"
Cutting Angle: 90 degrees
Ramping Angle: 3 degrees maximum
Number of Insert Stations: 3
Overall Length: 6.3\"
Master Insert Identification: APKT 1003PDR-HM
Applications: Counter Boring | Facing | Fast Feed Milling | Helical Interpolation | Rampdown | Shouldering | Slotting
Coolant: No
-Ref 37-44
