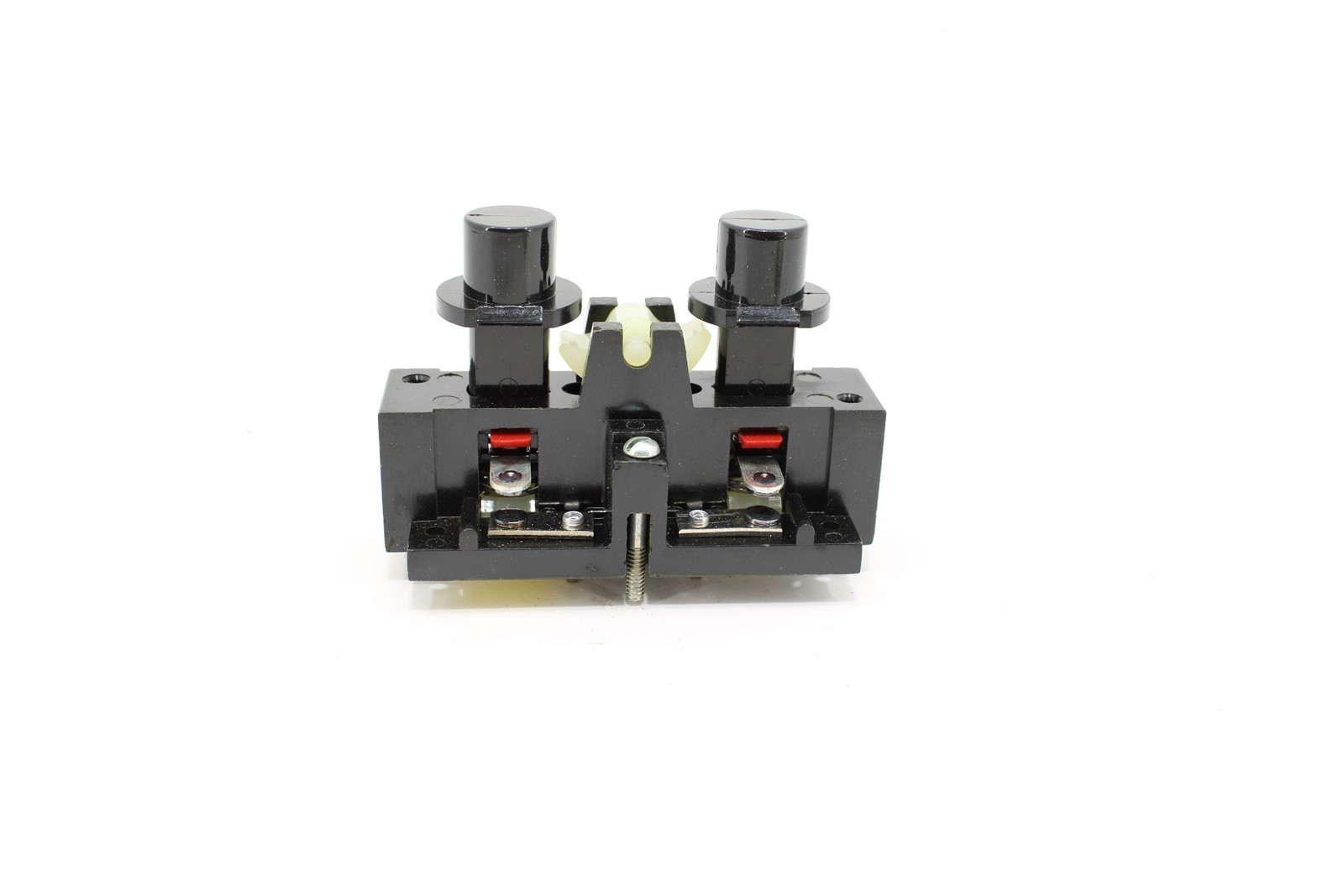

Hubbell 28318-001 PBP PG1 Pushbutton Insert | Single Speed | Momentary NO For Sale

Hubbell 28318-001 PBP PG1 Pushbutton Insert | Single Speed | Momentary NO

New – Open box:May have shelf wear on thepackage but contents are new.

Description

The Hubbell 28318-001 is a Single Speed Plug-In Pushbutton Insert in the Euclid PBP pendant pushbutton station family, catalog number PG1. It is also referenced under the alternate part numbers HC28318-001, 2020-28318001, and 202028318001. Refer to manufacturer documentation to confirm compatibility with your specific application.

This insert provides One (1) Single-Speed, Momentary Normally Open (N.O.) contact function. It is a plug-in style module rated for pilot duty at 250V AC max, with AC ratings of 120/240/480V AC at 6A/3A/1.5A respectively and DC ratings of 125/250V DC at 1.1A/0.55A. The insert plugs into a compatible TB2 terminal base (28326-000), which is purchased separately and required for installation.

This insert is designed for use within Hubbell Euclid PBP pendant enclosures, which are fully-gasketed and NEMA 4X rated. Compatible enclosures are available in 2-, 5-, 7-, and 9-button configurations, with the 28318-001 occupying one button position per insert slot.

• Brand: Hubbell
• MPN: 28318-001
• Catalog Number: PG1
• Type: Momentary Pushbutton Insert (Plug-In)
• Series: Euclid PBP
• Contact Configuration: Single Pole Single Throw (SPST), Momentary Normally Open (N.O.)
• Number of Buttons: 1
• Speed Configuration: Single Speed
• AC Voltage Rating: 120/240/480V AC
• AC Current Rating: 6A / 3A / 1.5A (at 120 / 240 / 480V AC)
• DC Voltage Rating: 125/250V DC
• DC Current Rating: 1.1A / 0.55A (at 125 / 250V DC)
• Duty Rating: Pilot Duty, 250V AC Max
• Mounting Style: Plug-In (into TB2 Terminal Base 28326-000)
• Compatible Enclosure Type: NEMA 4X, Fully-Gasketed PBP Pendant Enclosures
• Required Accessory: TB2 Terminal Base (Part No. 28326-000), sold separately
• Country of Manufacture: United States
