Heath Zenith Hands Free Motion Sensor Wall Switch for 3 Way Circuits SL-6107 For Sale

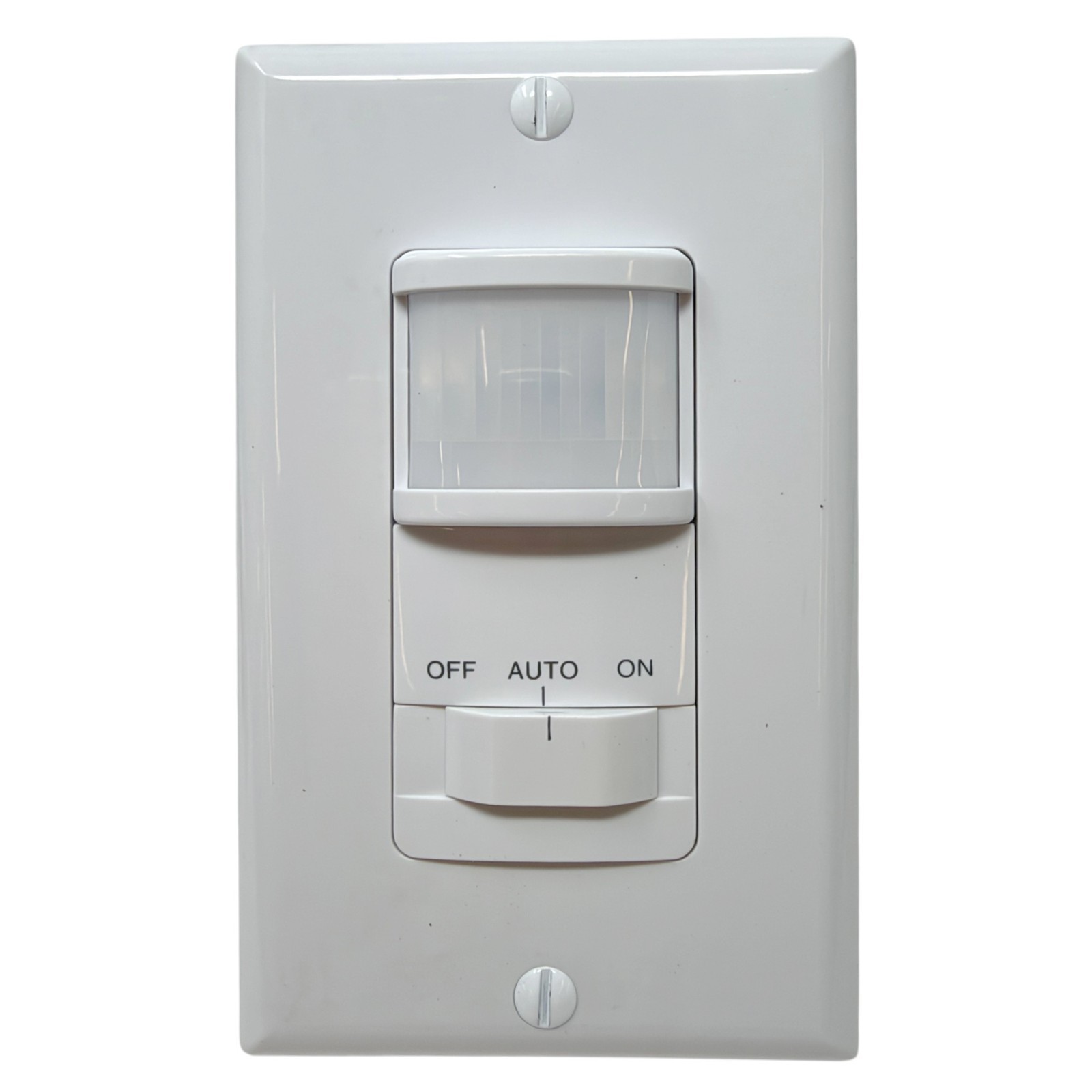

Heath Zenith Hands Free Motion Sensor Wall Switch for 3 Way Circuits SL-6107
On, Off or Automatic Motion Sensing Control for 3 Way Circuits with 4 WiresNote: A “3-way” circuit controls lights from two separate switches.
The SL-6107 Motion Sensor Wall Switch detects motion to turn onlights for an adjustable amount of time. A built-in photo cell can beset to keep lights off when the lights aren\'t needed. The unit has excel-lent sensitivity and a wide 150° detection range. It can be used with incandescent lighting as well as rapid start fluorescent lighting. Installation is as easy as replacing a wall switch. However, somecodes require installation by a qualified electrician.
Features

• 150° motion detection angle
• Adjustable on-time from 5 sec. to 20 min.
• Adjustable photocell
• Works with incandescent and rapid startfluorescent lighting
• Works with motors up to 1/8 hp
• Slide switch selectable OFF, ON, and AUTO modes

The Heath/Zenith Motion Sensing 3-Way Wall Switch® automatically controls indoor lighting. In AUTO mode, the control automatically turns the light on when you enter the room. The length of timethe light stays on is adjustable. The Heath/Zenith SL-6107 Motion Sensing 3-Way® Wall Switch replaces any \"3-way\" switch. Perfect for rooms or hallways where two wall switches controla single light.
InstallationFor your safety, turn off power at the fuse or circuit breaker. Note: A “3-way” circuit controls lights from two separate switches.Select a 3-way circuit that controls a light or an outlet to a lamp. Total lighting must be from 25 to 500 watts incandescent, or 60 to 400 watts fluorescent using a rapid start ballast. Note: May not be used to operate electronic or magnetic ballasts. Less wattage than the minimum may not allow the control to work properly. The switch selected for replacement should be in a place that can detect motion in the desired area.For easier re-wiring later, mark the house wiring with tape indicating where the wire had been connected. In the following section you will install a jumper wire at one 3-way switch and replace the other switch with the SL-6107.*Note: The existing 3-way switch will be referred to as the “Remote Switch”

• Mount the SL-6107 into the junction box with the two junction box screws.
• Turn the circuit breaker back on.
• Preset the controls: Time to minutes, Photo Adjustment fully clockwise. Cover the lens with masking tape.
• With the motion sensor in the “ON” position, turn the remote switch on and off several times. Go to step 1, 2, or 3, depending on results.

The sensor can be prevented from turning on lights when there is already enough light in the room. Use a small screwdriver to set the light level using this diagram as a guide. In the fully clockwise position, the sensor turns on lights even in full daylight. In the fully counter-clockwise position, the sensor only turns on lights when the surrounding light level is very low.With the switch in the AUTO position and the light at the desired level for the lights to turn on, put the LIGHT control to the minimum dark (fully counter-clockwise) position. Wait for the lights to turn off.Move your hand in front of the sensor. While moving your hand in front of the sensor, slowly turn the LIGHT adjustment clockwise until the lights controlled by the sensor come on
Specifications

• Electrical Input: 120V, 60 Hz.
• Fluorescent Load: 30 Watts minimum, Up to 400 Watts Maximum Rapid Start
• Motor Load: Up to 1/8 HP Maximum
• Incandescent: Up to 500 Watts Maximum at 120VAC
• On-Time: Adjustable approximately 5 sec. to 20 min.
• Photocell Sensor: From full daylight to less than 1 FC.
• Coverage: up to 15 ft. (4.6 m) at 150°, up to 30 ft. (9.1 m) in front of the sensor
