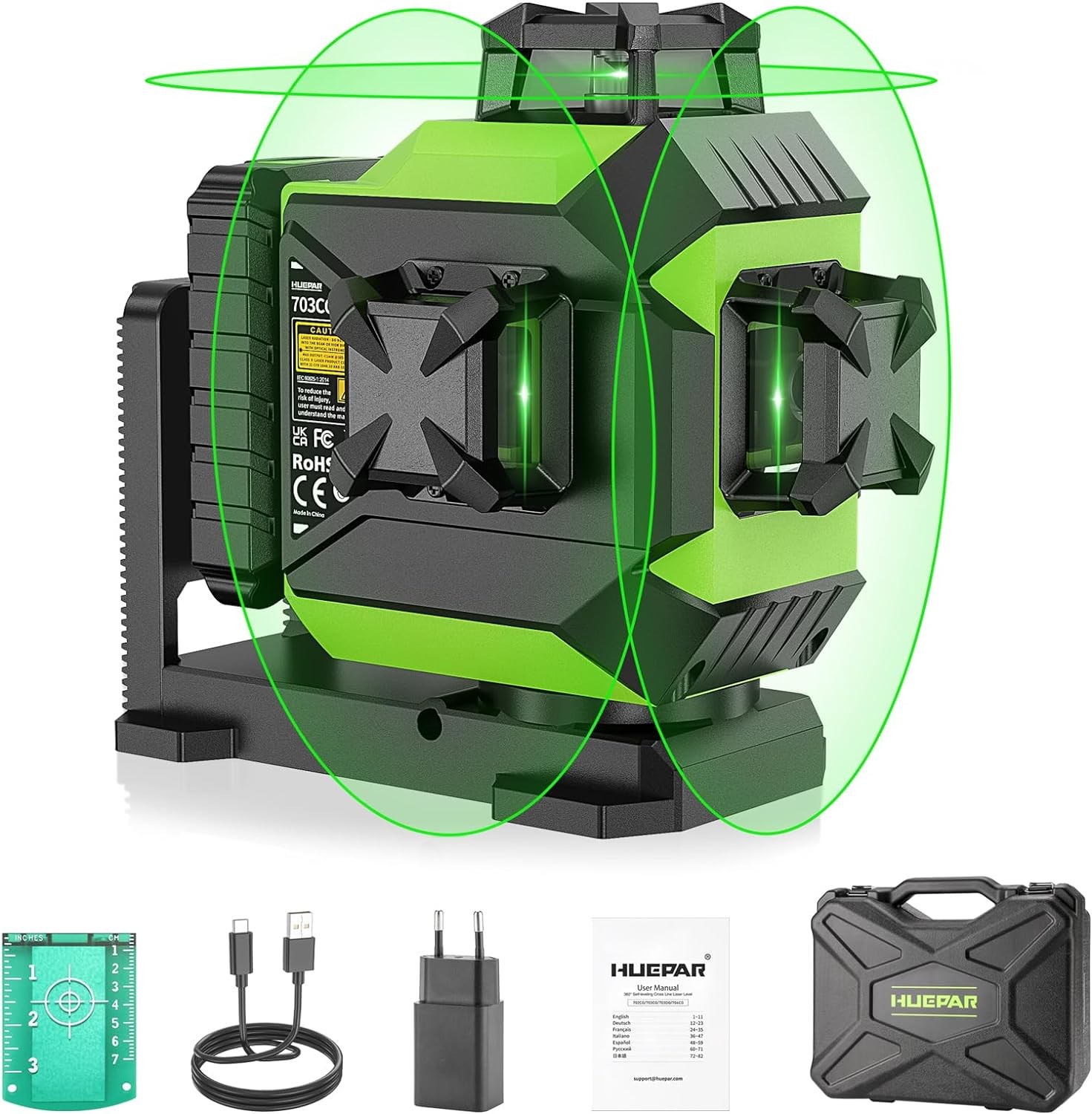

HUEPAR 3D Self Leveling Cross Line Laser Level with Pulse Mode Alignment Tool For Sale

• sale
• US STOCK
  • Ship to the world
• 【Manual Mode & Self-Leveling Mode】The 360 laser level with slide switch enables you to set 2 modes, self-leveling and manual mode. In self-leveling mode, the range of leveling compensation is 3.5°and the laser level will automatically level for cross line, otherwise, the laser will flash to indicate the out-of-level condition. In manual mode, the self-leveling function is deactivated and the laser tool is locked to be used at any angle. No Standalone lithium batteries are sold with the product.
• 【High Visibility & Accuracy】This self-leveling laser adopts the bright Osram’s green laser unit, which is 4x brighter than the red beam to assist your leveling jobs, brighter and clearer. High accuracy of ±1/9 inch at 33Ft. with a working range of up to 98 feet (300LUX). The brightness of the laser can be adjusted according to the working needs. The outdoor pulse mode can be activated by pressing the Pulse Mode Button, extending the laser range up to 197 feet with Huepar Line Laser Detector.
• 【Flexible Installation Method】Equipped with an integrated L-shaped magnetic bracket, which is easy to fix on the metal surface and realizes 360° rotation. The laser level with bracket is also available with 1/4\"-20 & 5/8\"-11 mounting thread to suit standard tripod or laser pole mounting. The laser windows can be removed and replaced with a screwdriver.
• 【Advanced Protection and Long Working Time】: Class 2 (IEC/EN60825-1/2014), <1mW protection level, IP54 (shockproof, waterproof, dustproof, wear-resistant, cold-resistant, and high-temperature resistant). Equipped with a 3.7V / 6600mAh lithium battery and providing up to 10 hours of running time, enjoys lower energy consumption and a longer battery lifespan.
• 【Package Contents】1x 703CG Laser Level Tool with integrate magnetic bracket with 6600mAh Li-ion Battery, 1x Hard Carry Case, 1x Laser Target Plate, 1x Type-C Cord, 1x User 703CG Green Beams Laser Level
• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW
• Laser Wavelength: 505-520nm
• Leveling Accuracy: ± 1/9\" at 33Ft.
• Leveling/Compensation Range: ±3.5°
• Self-leveling Time: ≤3 Seconds
• Reference Working Distance: 98Ft.(60-100 LUX)
• Reference Working Distance 197Ft. with Laser Receiver
• Power Source: 3.7V/6600mAh Li-ion Battery
• Reference Operating Time: About 10 hours
• Charging Time: About 4.0 hrs with 5V/2A adapter
• Mount Size: 1/4\"-20 & 5/8\"-11
• IP Rating: IP54 Temperature: 14℉ ~ 122℉ (-10℃~ 50℃)
• Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)

1x 703CG Laser Level Tool with integrated magnetic bracket Magnetic \"L\" Base

1x Li-ion Battery with type-c charging port

1x Type-C Cable

1x Power Adapter

1x Hard Carry Case

1x Laser Target Plate

1x User Manual

• One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, and ceiling all around the room.
• The three laser lines can be selected individually depending on job site applications, you can easily choose to turn on/off any laser line to assist your leveling jobs, bright and clear.
• Ideal for paving tiles, installing photo, door, window, or furniture carpentry, hanging wallpaper, & Manual Mode

  This 360 laser level can set 2 modes, self-leveling mode, and manual mode.

  Self-leveling mode:

  • Unlock the pendulum, and enable the self-leveling mode, when the tool exceeds the self-leveling range by 3.5°±1°.
  • The laser beam(s) will blink about every 3-5 seconds to notify the user it is not self-leveling now.

  Manual mode:

  • Once the pendulum is locked, it switches to manual mode, the self-leveling function is disabled, the cross laser tool is locked, and you can position the laser level at any angle you need.
  Power-Saving Outdoor Pulse Mode
  • Turn ON the pulse mode: After powering ON, short press the \"P\" button to switch ON/OFF the pulse mode.
  • Pulse mode extends the working range up to 60m/197ft in brighter working conditions when using Huepar Line Laser Detector (ASIN: B07L6FP48S).
  • When the pulse mode is activated, the laser beams are dimmer, the pressure on the eyes is less when working at close range, and the working time can be appropriately extended.
  • It is compatible with Huepar LR-6RG / LR-5RG/ LR-8RG Line Laser Receiver (need to purchase separately) only.
  • Keep the pulse mode on when using a receiver.
  Type-C Charging Port
  • Power by a 3.7V / 6600mAh lithium battery with the Type-C charging port can be charged separately and provides up to 10 hours of running time.
  • Direct input charging: When taking in the battery, the laser tool can be used at the job.
  • Three battery indicators on the keypad allow users to know the current battery volume.
  • Charging protection helps prevent brightness adjustment
    • Short press the “Light bulb” button to adjust the beam\'s brightness.
    • When turning on the unit, the beam(s) is full brightness by default and the Power Indicator lights up in Green.
    • Short press the “Light bulb” button to reduce the brightness. The power Indicator will be on and flash as a reminder.
    • Short press the “Light bulb” button again to reduce the brightness further. The power Indicator will be on and flash quickly.
    • *Note: The brightness cannot be adjusted under pulse mode.
    High Protection Grade
    • The line laser reaches IP54 protection grade (shock resistant, waterproof, dustproof, shockproof, wear-resistant, impact resistant, cold and high temperature.).
    • The durable and high-quality shockproof enclosure provides 4 Ft. collision protection.
    • It\'s compact and lightweight for easy gripping, but large enough to sit stably, ideal for construction site work.
    Integrated Flexible Magnetic Bracket Mounting Design
    • The laser level is equipped with a 360° strong magnetic bracket （not removable）that allows for quick positioning to metal surfaces, helping hang the laser level for wall applications.
    • And the 1/4\"-20 and 5/8\"-11 mounting threads on the bottom of the bracket can suit different tripod © Huepar. All rights reserved.
