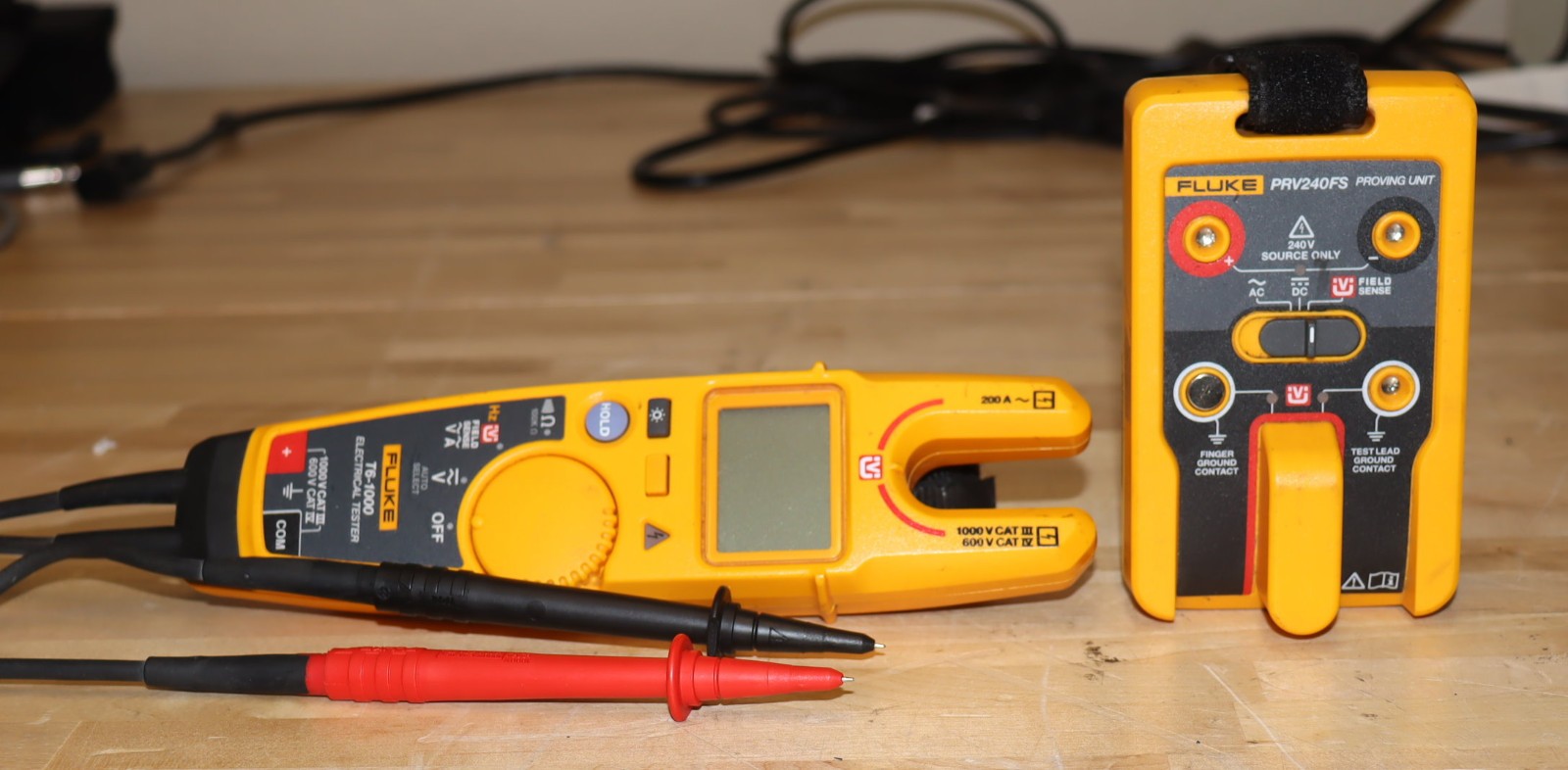

This is a Fluke T6-1000 Electrical Tester with the PRV240FS Proving Unit. This unit is in GREAT condition, and guaranteed fully operational. I have a large quantity of these, all fully operational. One set per offer. Combined shipping available on quantities. NOTE: Batteries are not included on these units. They take standard AA batteries, nothing special.
Product overview: Fluke T6-1000 Electrical TesterMeasure voltage without test leads
The Fluke T6-1000 Electrical Tester with FieldSense™ technology lets you quickly, safely take True rms voltage and current measurements without test leads.
Unlike other fork testers that merely detect voltage, the T6-1000 makes actual measurements, without contacting a live, metallic conductor. Just slide the 17.8 mm open fork, the widest in the industry, over a conductor and read simultaneous voltage and current values. Or simultaneous frequency and current values. The open fork works with wires up to AWG 4/0 (120 mm2). Or, you can use the attached test leads to measure voltage DC to 1000 V.
- True rms voltage and current to 200 A AC, 1000 V AC
- Resistance 1 Ω to 100 kΩ
Work on any jobsite
Make use of the HOLD button to temporarily freeze the reading on the screen so you can keep working with the same measurement up. Plus, the display features large, easy-to-read numbers and a backlight for darker work environments or inside cabinets. The T6-1000 works with the Fluke TPACK ToolPak™ Magnetic Meter Hanger to make it even more convenient.
How FieldSense™ technology works
FieldSense ™ technology is different than other open fork testers work by interpreting a magnetic field to show AC current. FieldSense™ detects an electrical field that interacts with a T6 reference signal, showing a voltage value on the tester’s display.
Product overview: Fluke PRV240FS Proving Unit:TestVoltage Indicators
Designed for safety and compliance
Verify your test tool works without unnecessary exposure to shock and arc flash. Make the process easy by using the PRV240FS Proving unit. Verifying that your T6 electrical tester is working properly reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification before tests are performed. (PPE is still needed for absence of voltage testing when appropriate).
On the PRV240FS, a single switch and a set of LEDs indicate functionality of both standard AC and DC measurements with test leads, and FieldSense, “no-test-lead” voltage measurement capability. This unit is a simple-to-use solution for complying with verification procedures of your test tools.
The PRV240FS also provides AC and DC voltages for all high impedance instruments in your toolbox. When paired with the included TPAK magnetic hanging strip and the long battery life, including this proving unit in your toolbox is an easy decision. The PRV240FS will last for 2000 tests per set of four AA batteries, with a 10-second test average.
“Test Before Touch”
Fluke’s PRV240FS allows you to “Test Before Touch” (TBT), which involves testing your T6 against a known live source before, and after, the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.
Voltage is sourced through a central hub designed to test the T6 FieldSense open fork, as well as through recessed contacts that are activated when test probes are inserted to avoid accidental contact. The PRV240FS has been tested and includes a IEC61010-1, IEC61010-2-030 safety rating.
Shipping in the USA is $30.
