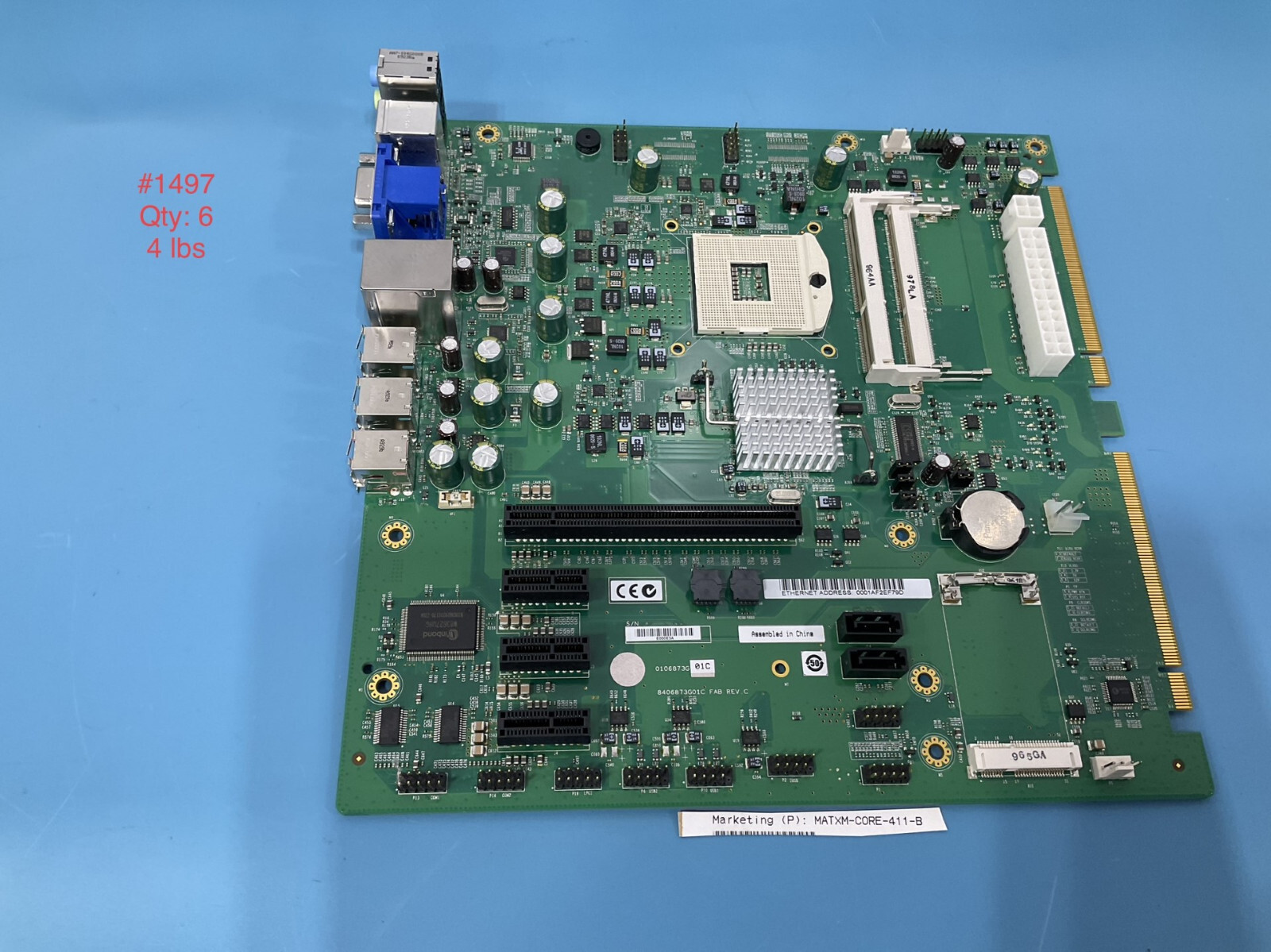

Emerson, Artesyn Embedded Power, MOTHER BOARD , MATXM-CORE-411-B , NEW For Sale

Emerson , MOTHER BOARD , MATXM-CORE-411-B , MOTHER BOARD INTEL I7 CPU
Motherboard, 2.6GHz Intel CPU 2GB DDR3 10Mbps/100Mbps/1000Mbps
Hardware Specifications
PROCESSOR SOCKET
ƒ rPGA989 socket (Socket G) for Intel® Core™ i7 at
2.6 GHz
CHIPSET
ƒ Mobile Intel® QM57 Express
MEMORY
ƒ 2GB DDR3 SO-DIMM
PCI EXPRESS
ƒ MATXM-CORE-411-B is fitted with one x16 and
three x1 PCI Express gen 2 slots
ETHERNET
ƒ MATXM-CORE-411-B has a single RJ-45 connector
with integrated link/activity and connection speed
LEDs mounted in the back panel I/O region for
10/100/1000 BaseT Ethernet connection provided
by the QM57 integrated MAC and Intel® 82577
Hanksville Gigabit Ethernet (GbE) PHY.
ƒ Wake-on-LAN and AMT6 are supported.
WIFI/WIMAX
ƒ Supplied with a PCI Express Mini Card connector
supporting the Intel® WiMAX/WiFi Link 5050 and
Intel® WiFi Link 5000 Series wireless devices.
STORAGE
ƒ There are a total of three internal SATA interfaces to
connect physical or solid state SATA disks. Two of the
SATA ports are directly on the MATXM-CORE-411-B
motherboard and a third is situated on the midplane.
ƒ One eSATA port is available on the rear I/O panel for
external storage.
ƒ In addition, there is a socket for a Z-U130 flash
based hard drive that is available in sizes up to
16GB. These flash drives are consume very little
power, have impressive read/write speed and are
extremely robust with a high mean time between
failure (MTBF).
USB
ƒ All USB ports, including PoweredUSB, support
low-speed, full-speed, and high-speed using the
USB 2.0 Enhanced Host Controller Interface (EHCI).
There are two standard type A connectors located
on the back panel I/O region.
ƒ In addition, there are two 12V PoweredUSB ports
and one 24V PoweredUSB port. PoweredUSB uses a
standard USB host connector combined with an
additional connector that is keyed to carry 5V, 12V,
or 24V supplemental power.
ADDITIONAL I/O
ƒ Serial Ports – there are two on-board serial ports
for legacy applications implemented on 10-pin
dual-row headers.
ƒ Fan Connections – Two 4-wire headers are situated
near the CPU socket and two 4-wire headers are
built onto the midplane.
ƒ PS2 keyboard and mouse
ƒ Audio – Standard 3.5mm mini-jack connections
are provided for line output, microphone and
headphone. In addition there is a 2-channel HD
audio output as part of the integrated HDMI
interface.
ƒ Watchdog timer with programmable timeout
COMPLIANCE AND CERTIFICATION INFORMATION
ƒ EMC Compliance Standards
c Motherboard industry standard requirements:
Class B (FCC, VCCI, MIC, AS/NZ)
ƒ Safety Standards
c Motherboard industry standard requirements
