Electric Auto Door Opener with Extend Inswing Push Arm,Maximum Door Frame Depth For Sale

Electric Auto Door Opener with Extend Inswing Push Arm,Maximum Door Frame Depth of Auto Swing Door Opener Can be up to 12.99inch Including Door Thickness 1.57inch

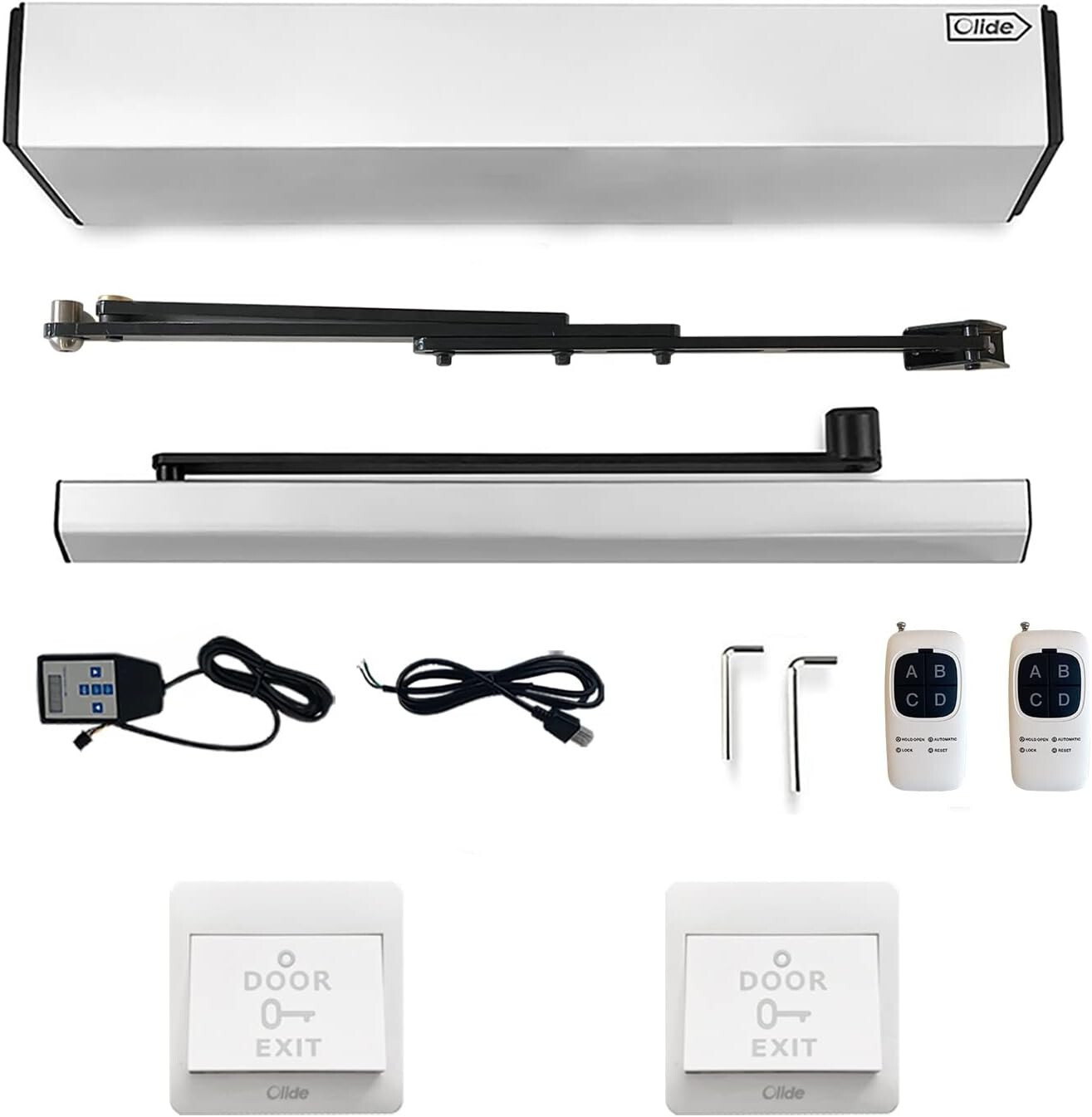

Includes

• 2 pcs Wireless and not hardwired LARGE fob keys,working frequency is 315MHz,can add up to 15 wireless remote controls per automatic door opener
• 2 pcs plastic white exit buttons
• 1pcs outswing bracket push arm and 1pcs extend inswing bracket pull arm length 22.64inch
• Parameters adjusting hand programmer
• 2 pcs auto door attention stickers
• Screw and screw anchors
• Black and white manual
• US plug and cords

The Olide-120B is a electric automatic door opener with extend inswing push open arm,maximum door frame depth can be up to 12.99inch,longer than regular inswing push arm.This automatic electrical door opener operates in both automatic and manual modes,In manual mode, door opens with very little pressure and closes slowly providing easy operation for handicapped or pedestrians

With advanced wide voltage technique,it makes the automatic door operator Olide-120B highly adapt to voltage fluctuations between 110-220VAC +/-10%, it can be used in areas almost of the world whether it is a peak in urban power or insufficient power supply in remote areas.More energy saving and durable than ordinary single input voltage.

The Olide-120B is a remote swing door opener kit with an automatic door opener for both inswinging and outswinging doors and two exit buttons and two wireless fob keys for automatic doors. This heavy duty swing door opener system is designed to secure your door and have the capabilities of automatically and manually opening and closing it as well. A simple yet secure system for areas such as offices, hospitals, elderly homes, banks, commercial locations, and much more.

Extend Inswing Push Open Arm,Longer than Regular Push Arm of Automatic Swing Door Opener Olide-120B,Maximum Door Frame Depth Can be up to 12.99inch

• WITH EXTEND INSWING PUSH OPEN ARM---With extend inswing push arm for automatic door opener Olide-120B,it is longer than regular push arm,Maximum door frame depth of electric door opener can be up to 12.99inch
• AUTO OPEN DOOR---Wireless fob keys or wired exit button activate the automatic door,fast and convenient entry
• SAFE---Automatically re-open door if touchless door opener notices an object in the closing path,make sure safety of the people in the door way,If used for disabled access, it is recommended to install a optional motion safety scanner to extend the re-opening time
• EASY PARAMETER ADJUSTMENT---Lots of parameters such as manually push force can be adjusted on closing force by handheld programmer
• EASY INSTALLATION&DEBUG---USA Technical phone support,easy installation and debug

Widely application in both commercial and residential swing doorsEasy Program and Debug Front Door Automatic Door Opener Closer with 1PCS Wired Surface-Mounted Face Recognition Sensor via Handheld ProgrammerAlways Keeping Door Open Available via adjust parameter\"hold-open time\"to\"--\"
Integrated High-Efficiency Working Controller and Wide Voltage, Durable MotorKnowing More Details

Large Wireless Fob Keys for Olide-120B

• The remotes that come in this kit are Wireless and not hardwire
• The remotes working frequency is 315MHz
• You can add up to 15 wireless devices per automatic door opener

Handheld Programmer for Olide-120B

• Please plug into Olide-120B to adjust parameters such as closing force,locking mode,etc
• If shows Err03 on the display,please plug and re-plug the handheld programmer with power on,it will disappear

Technical Parameter

• Swing application: one-way inswing or outswing open, single leaf and double leaf standard doors
• Voltage: 110-220 VAC +/-10%
• Motor: DC 24V brushless motor
• Power Consumption: 50W
• Opening Time: 3-7 sec. @ 90 degrees
• Hold Open Time: 1-30 sec. Adjustable
• Max. Door Frame Depth:200mm / 7.87\"(the data is only applicable to work with push arm)
• Door Width: Max. 1200mm / 47.2\" Min. 660mm / 26\"
• Max. Opening Angle:120 degrees
• Environment Temperature: -20C to 50C -4F to 122F
• Operation noise: Less than 55db
• Opener size: style=\"box-sizing: border-box; list-style: disc; overflow-wrap: break-word; margin: 0px;\">Opener weight:9.5kg/ 20.9 LBS

Trouble Shooting

• Symptoms 1Motor always spin slowly and not stop
• Remedies 1Please install the whole item on the door to test,the door opener need to find a closing position firstly, if not installed, the motor just keep spin very very slowly in one direction and not stop. The system will go to a properly operation after find a closing position. If want to test on your workbench, you can install a arm, and manually stop in a position. (As closing position), And then give system a open signal.
• Symptoms 2The door opens in wrong direction and machine does not work
• Remedies 2Power off, manually open the door in half open,then power on, the door goes to closing direction, if not, change the open direction
• Symptoms 3Rebound when closing the door,repeat open and close actions
• Remedies 3Clear the obstacle away or increasing the closing force by hand programmer
• Symptoms 4Electric Lock not work
• Remedies 4Please press the lock button on the remote for first close
