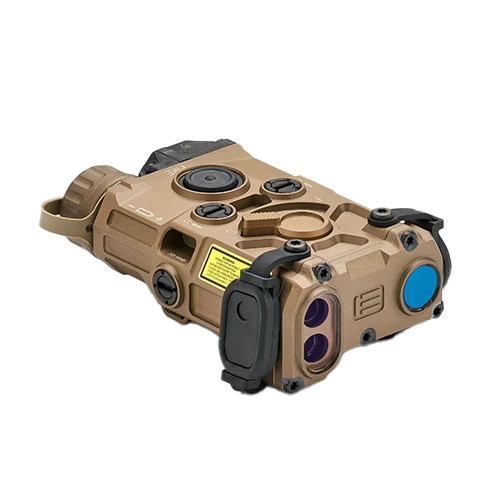

Due to the value of this item, it will be shipped Ups, signature required!EOTech OGL Commercial Laser System
The EOTech OGL Commercial Power (On-Gun Laser) is an eye-safe, consumer-ready version of the OGL Standard, originally developed for military and law enforcement. It retains a rugged aluminum housing with intuitive controls, including a mode selector, windage and elevation adjustments focus slide, and protective covers.
Co-aligned green visible and IR aiming lasers support daylight, low-light, and night-vision use, while a dedicated IR illuminator delivers fast spot-to-flood adjustment for enhanced situational awareness. Designed for top-rail mounting and adaptable to either side of the handguard, the OGL C avoids interference with front iron sights.
Specifications
Visible Aim Laser
Output Power High: ≤ 5.0 mW (Class 3B)
Beam Divergence: < 0.5 MRAD
Wavelength: 520 nm (±10 nm)
NIR Aim Laser
Output Power High: ≤ 0.67 mW (Class 3B)
Beam Divergence: < 0.5 MRAD
Wavelength: 830 nm (±10 nm)
NIR Illuminator
Output Power High: ≤ 105 mW (Class 3B)
Beam Divergence: Spot ≥ 23 MRAD, Flood ≥ 105 MRAD
Wavelength: 860 nm (+10 / –30 nm)
EOTech OGL Features
• Commercial power
• 9 hours of runtime with (1) CR123 lithium battery
• All aluminum housing for extreme durability
• Compact design, similar in size to a deck of cards
• Enhanced ergonomics
• Shared optical bench for Visible Green and IR Aiming Lasers
• VCSEL Illuminator variable beam divergence: ~30 MRAD to ~105 MRAD*
• ~0.2 MRAD windage and elevation adjustments, 50 MRAD total
• Crane-type laser port
• Modlite ModButton Lite 7″ switch included
• Tethered battery cap & pattern generators
