THIS LISTING IS FOR THE VHX SERIES WITH CARBON FIBER FACE AND BLUE LIGHTING.

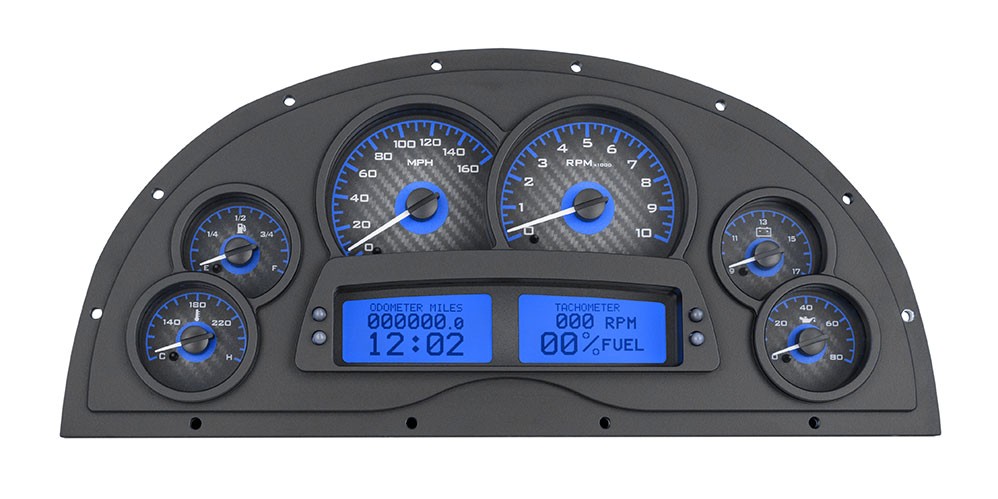

VHX-1200-C-B: 1967- 69 Marquez Designs Camaro From Dakota Digital VHX
The VHX-1200 is designed to fit the Marquez Design Fiberglass Dash for the 1967- 69 Camaro . Created as a crossover between the pure function of race gauges and the usability of street instrumentation, this system provides the best of both. With a 0-160 MPH Speedometer, a 0-10,000 RPM Tach and large-sweep Oil Pressure, Temperature, Voltmeter and Fuel Level readouts, even the most radical of applications are covered. Four programmable, digital message centers allow for nearly unlimited expansion.
The billet aluminum faceplate is powdercoated flat-black and features intricate machining to create a unique multi-layered look. Measuring in at 16\" x 7.25\"H, this system is a direct-fit to the Marquez Designs dash, but also lends itself to custom applications (template included with kit).
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display response, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!Specs:
Analog GaugesSpeedometer·0 -160 MPH (optional metric version 0- 255 kmh)Tachometer·0- 10,000 RPMOil Pressure·0- 80 psiWater Temperature·100- 260ºF (optional metric version 40- 120ºC)Fuel Level·E, 1/4, 1/2, 3/4, FVoltmeter·9- 17 VDCLighting·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.Digital Message Centers
Standard Displays·Odometer (One time user settable, Million Mile)·Dual (A/B) Trip Meter (0- 9,999.9)·Clock (12 hour)Performance Meters·0- 60 MPH Timer (0- 100 kmh)·1/4 mile time·1/4 mile end speed (trap speed)·High speed recall·High RPM recallGauges·Speedometer (0- 255 MPH/kmh)·Tachometer (0- 9,900 RPM)·Oil Pressure (0-100 psi displayed in 1 psi increments)·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)·Voltmeter (9- 17 VDC)·Fuel Level (0-99% full)Lighting·Auto-contrasting LCD display for optimal view in the brightest of sunlight.·LED backlit at night to match/ complete the look at night.Built-in Indicators
Indicators·Turn Signals (Left/ Right)·High Beam·Check Engine·Parking Brake·Cruise Control (On/ On & Engaged when vehicle is equipped)·Gear Position (Optional GSS-3000 sensor required)·4 x 4 (When vehicle is equipped)·Wait to Start (When vehicle is equipped)**Not all OEM indicator lamp functions will be replaced.If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.Included Sensors
sVHX Specs GM (bottom)Water Temperature·1/8\" NPT, ground isolated sensor with a 10 ft harness.Oil Pressure·1/8\" NPT solid state sensor with a 10 ft harness.Cable Driven Speed Sensor/ Generator·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5\" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)Bushings·Each kit comes with 1/8\" to 1/4\", 3/8\" and 1/2\" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.Control Box Dimensions5.5\" x 3.5\"x 1\"Calibration
Pushbutton·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
