DS18 PRO-X694BM 6x9" Mid-Range Car Speaker 200W RMS 4 Ohm (1 Speaker) For Sale

🔑 Key Features

• 6x9" mid-range loudspeaker with bullet design

• 200W RMS power handling and 400W MAX power

• 4-ohm impedance for standard audio system compatibility

• 96dB sensitivity with included grill

• Ferrite magnet motor structure

🧩 Features

Design

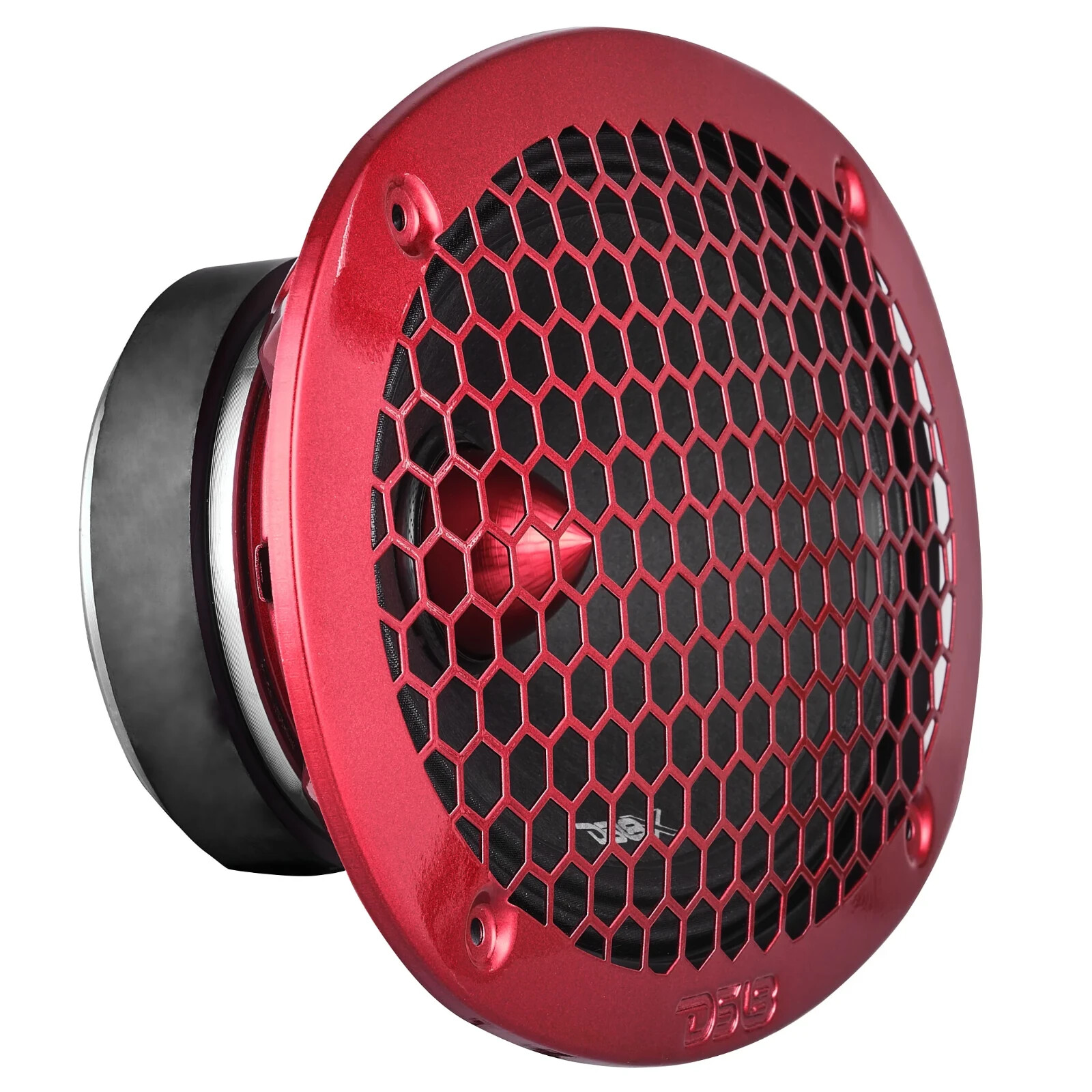

Glossy red honeycomb grill, aluminum bullet dust cap, and glossy red steel basket create a bold visual design. The speaker uses a non-pressed paper cone with a cloth surround and steel basket 200W RMS and 400W MAX power handling with 96dB sensitivity and a frequency response of 100Hz–12.5KHz for mid-range audio output.

Motor Structure
Built with a 1.5" Kapton voice coil, CCAW winding material, and a 27 oz ferrite magnet for stable with a 3.27" mounting depth and compatible front mount cutout of 8.7 x 6". Grill is included.

📏 Specifications

• Brand: DS18

• Model: PRO-X694BM

• SKU: PRO-X694BM

• Nominal Diameter: 6 x 9" / 152 x 228mm

• Nominal Impedance: 4 Ohm

• RMS Power Handling: 200W

• MAX Power Handling: 400W

• Sensitivity (1w/1m): 96dB

• Frequency Response: HI Pass Crossover: 120Hz

• Sold: Single

• Grill Included: Yes

• Voice Coil Diameter: 1.5" / 38.6mm

• Voice Coil Former Material: Kapton

• Winding Material: CCAW

• Cone Material: Non-Pressed Paper

• Bullet Material: Aluminum

• Bullet Color/Finish: Glossy Red

• Surround Material: Cloth

• Basket Material: Steel

• Basket Color/Finish: Glossy Red

• Magnet Material: Ferrite

• Magnet Weight: 27Oz

• Displacement Volume: 0.32L / 0.011ft3

• Equivalent Volume: 20.38L / 0.719ft3

• Excursion (One Way): 7.7mm

• Free Air Resonance: 120Hz

• Mechanical Factor (Qms): 5.166

• Electrical Factor (Qes): 0.731

• Total Factor (Qts): 0.64

• Mechanical Mass (Mms): 8.551g

• Mechanical Compliance (Cms): 0.225mm/N

• BL Factor: 6.544

• Voice Coil Inductance (Le): 3.86mH

• Cone Area (Sd): 207.34cm2

• DC Resistance (Re): 3.2 Ohms

• Overall Diameter: 9.25 x 6.5" / 235 x 165mm

• Overall Diameter With Grill: 10.2 x 7.08" / 260 x 180mm

• Overall Depth: 3.5" / 88.85mm

• Overall Depth With Grill: 3.9" / 100mm

• Front Mount Baffle Cutout: 8.7 x 6" / 222 x 152mm

• Mounting Depth: 3.27" / 83mm

• Motor Diameter: 4.3" / 110mm
