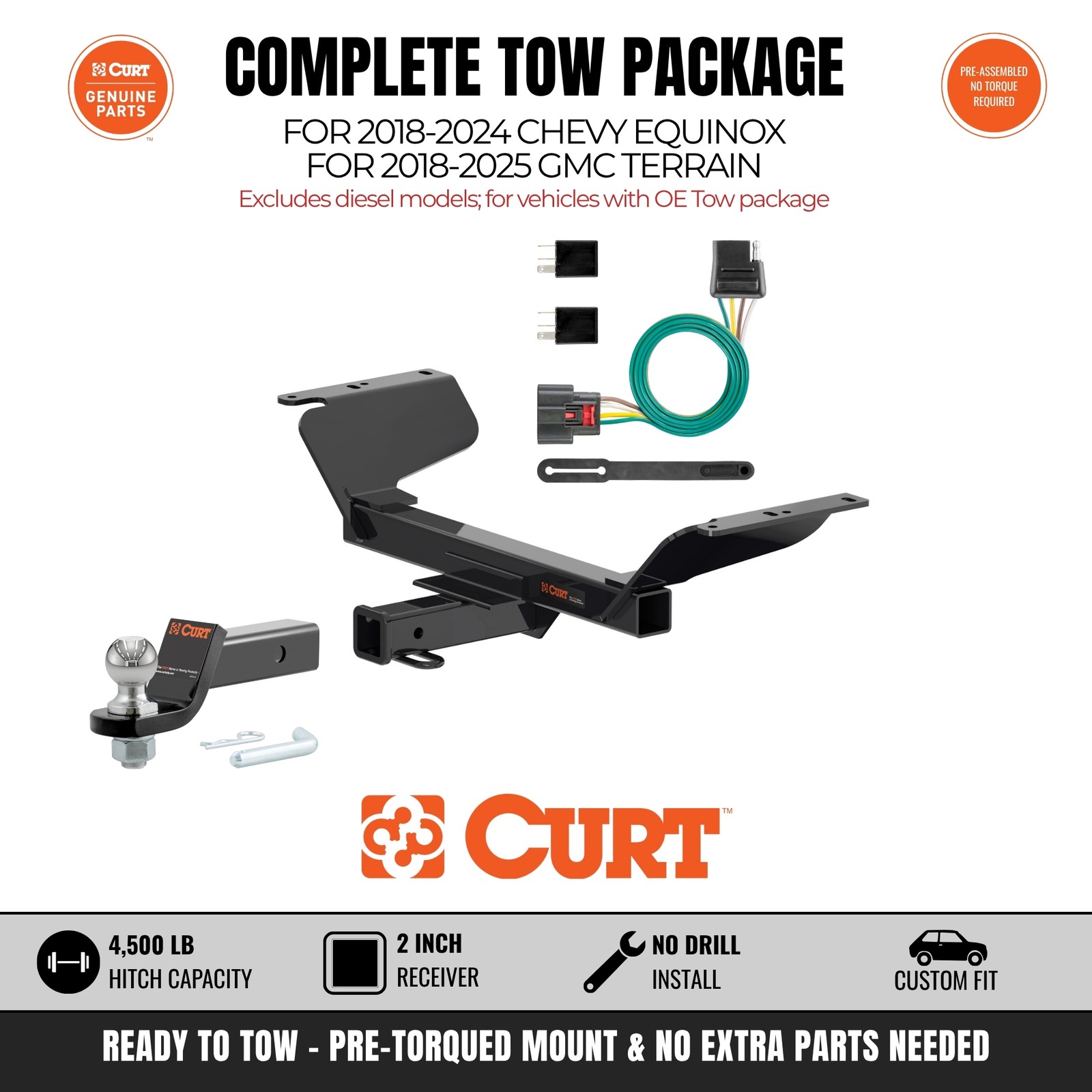

Curt 13439, Curt 56375, Curt 45036, Class 3, Trailer Hitch, Receiver, Tow, Towing, Camper, RV, Boat, Bike Rack, ATV, UTV, Tow Package, Tow Bundle, Tow Kit, Custom Wiring, Wiring Harness, Loaded Ball Mount, Chevy Equinox, GMC Terrain Curt Class 3 Hitch & Wiring w/ 2" Loaded Mount for 18-24 Equinox / 18-25 Terrain PART NUMBER: 13439 | 56375 | 45036
BRAND: Curt DESCRIPTION This bundle includes the following pieces:
- Class 3 Trailer Hitch, 2" Receiver - #13439
- Custom 4-Flat - #56375
- Loaded Ball Mount with 2" Ball (2" Shank, 7,500 lbs., 2" Drop) - #45036
Class 3 Trailer Hitch, 2" Receiver
Driving the family up to the campground? Hauling tools and equipment from the home improvement store? Pulling your boat to the nearby swimming hole? Whatever your destination and whatever trailer you're towing, Bring It® with a CURT trailer hitch!
CURT class 3 trailer hitches are designed, built and tested to accommodate a wide variety of towing applications. They are used on everything from full-size cars, vans and crossovers to light-duty pickup trucks and SUVs. Class 3 trailer hitches are perfect for towing fishing boat trailers, popup campers, ATV trailers, utility trailers and much more. They are also ideal for adding storage space to your vehicle with a hitch-mounted cargo carrier or bike rack (NOTE: Never exceed the lowest-rated towing component).
- Rated to 4,500 lbs. gross trailer weight and 675 lbs. tongue weight
- Compatible with weight distribution hitch (4,500 lbs. WD / 675 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hitch weight ratings are limited to vehicle manufacturer's stated capacities
- Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
- Includes installation hardware
PRODUCT SPECIFICATIONS
- Color: Black
- Finish: GLOSS BLACK POWDER COAT
- Installation Difficulty: Novice
- Main Body Shape: Square
- Material: Carbon Steel
- Part Type: Class 3 Trailer Hitch
- Product Weight: 42.000
- Receiver Tube Size: 2 IN
- Shipping Weight: 56.000
- Side Application Type Description: Not Applicable
- Tongue Weight (TW): 675 LB
- Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
- Weight Carrying Capacity (WC): 4,500 LB
- Weight Distribution (WD): 4,500 LB
Custom 4-Flat
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
- Factory (OEM) tow package required for installation
- Includes wiring (OEM) tow package required for installation
- Includes wiring components
PRODUCT SPECIFICATIONS
- Battery-Powered: No
- Electrical System Type: 2W
- Installation Difficulty: Novice
- Output Type: 4-Way Flat
- Product Weight: 0.400
- Shipping Weight: 1.000
- T-Connector Location: S6
- Tail Light Circuits: 7.5 Amps
- Turn and Brake Circuits: 7.5 Amps
- Warranty: One-Year Limited Warranty
Loaded Ball Mount with 2" Ball (2" Shank, 7,500 lbs., 2" Drop)
- Rated to 7,500 lbs. gross trailer weight and 750 lbs. tongue weight
- Fits trailer hitches with a 2" x 2" receiver tube opening
- Factory-torqued CURT trailer ball accepts a 2" coupler
- 2" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Trailer ball features a polished chrome-plated finish
- 5/8" hitch pin & clip for secure mounting in receiver tube
- Assembled in USA
- Limited lifetime warranty (one-year finish, one-year 2" trailer ball #40037, pin & clip
- Weight capacity may change if trailer ball is removed
- Factory-torqued CURT trailer ball accepts a 2" coupler
PRODUCT SPECIFICATIONS
- Ball Diameter: 2 IN
- Drop: 2 IN
- Finish: GLOSS BLACK POWDER COAT
- Gross Trailer Weight (GTW): 7,500 LB
- Length: 7 1/2 IN
- Master Case Qty: 1
- Material: Carbon Steel
- Part Type: Loaded Ball Mount
- Receiver Tube Size: 2 IN
- Shipping Weight: 8.720
- Tongue Weight (TW): 750 LB
- Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
VEHICLE COMPATIBILITY 2018-2024 Chevy Equinox **excludes diesel models; with OE tow package; Hole enlargement required for installation2018-2025 GMC Terrain ** excludes diesel models; with OE tow package; Hole enlargement required for installation
