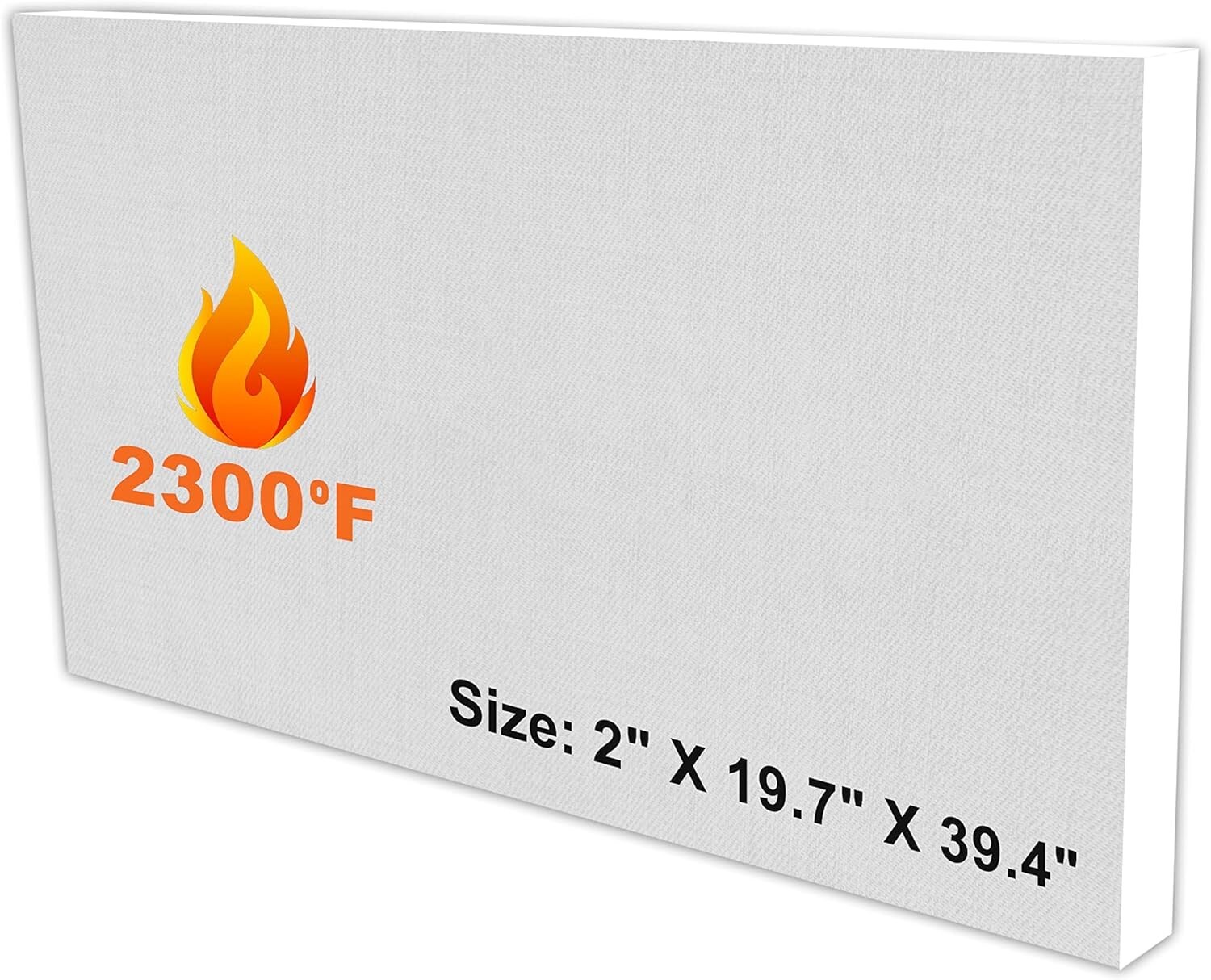

Ceramic Fiber Board - 2\"x19.7\"x39.4\"- 2300 F - Ceramic Fiber Insulation Board For Sale

Know About us

Simond Store is dedicated to providing customers with a convenient and comfortable experience. Quality and the fastest delivery are the key aspects of our business. Our goal is to conserve energy by supplying high-quality insulation products.

Simond Store is a well-known brand that supply high-quality products for a variety of applications. We have extensive experience and expertise in refractory products. We\'ve gained a large number of satisfied customers in the USA.

Know More About Ceramic Fiber BoardWhat is ceramic Fiber Board?

Ceramic Fiber Board is made from refractory fibers and binders which have low organic content, the mixture is vacuum processed into boards that impart good mechanical strength even after heating. Boards are manufactured in various densities and temperature grades to suit application requirements.

Ceramic Fiber Boards are a rigid and self-supporting insulating product of the ceramic fiber family that is intended for use in applications that require

• Higher insulating properties
• Increased strength and rigidity to resist gas erosive forces
• Fire resistance and direct heat resistance up to 2300°F
• High resistance to thermal shock (ability of a solid to withstand sudden changes in temperature either during heating or cooling)

Available in Various SizesProduct SpecificationsClassification Temperature (F)2300ColourWhite/TanDensity (Lbs/ft3)20 - 24Size (T x W x L)2 inch x 19.7 inch x 39.4 inchThickness Tolerance- 0.04 inch, + 0.08 inchWidth Tolerance± 0.12 inchLength Tolerance-0.12 inch, +0.2 inchHardness (Shore A)50 MinimumMoisture (%)10 MaximumModulus of Rapture (Kpa)980 Minimum – For 1” Thick; 588 Minimum – For 2” ThickPermanent Linear Shrinkage (%)3.5 Maximum (After 24 Hrs. shocking Heat at 2200°F)Compressive Strength (Kpa)274.6 Minimum (10% deformation for 1” Thick)Compressive Strength (Kpa)539.4 Minimum (25% deformation for 1” Thick)Al2O3 (%)44-45SiO2 (%)55-58LOI % at 1832°F4 - 7Key Product Features

Low Thermal Conductivity

Low thermal conductivity of the board reduces heat transfer.

High Heat Resistant

Ceramic fiber board has high heat resistance and can withstand temperature up to 2300F

Chemical Resistant

Remains unaffected when exposed to chemicals due to its excellent resistance against chemical attacks.

Thermal Shock Resistant

It can easily withstand extreme and rapid changes in temperature.

Lightweight

They are light in weight when compared to other insulation alternatives and helps to keep overall weight of the equipment low.

Asbestos Free

These Boards made from purest form of alumina and silica, and are asbestos free.

Easy to Cut and Shape

Extremely Easy to Cut and Shape for the desired size and shape.

Easy Installation

Extremely easy to work with because of lightweight, flexibility and easy to cut & shape feature.

Wide Applications

Ceramic Fiber Insulation Board is ideal for use in Wood Stoves, Fireplaces, Pizza Ovens, Kilns, Forges, Internal Baffle of Wood Stove, Pellet Stoves, Backup Insulation of Refractory Bricks, and Castable Linings, Furnace Hot Face Linings and Boiler Wall Insulation, Heat shields, Combustion Chambers and fire protection.
