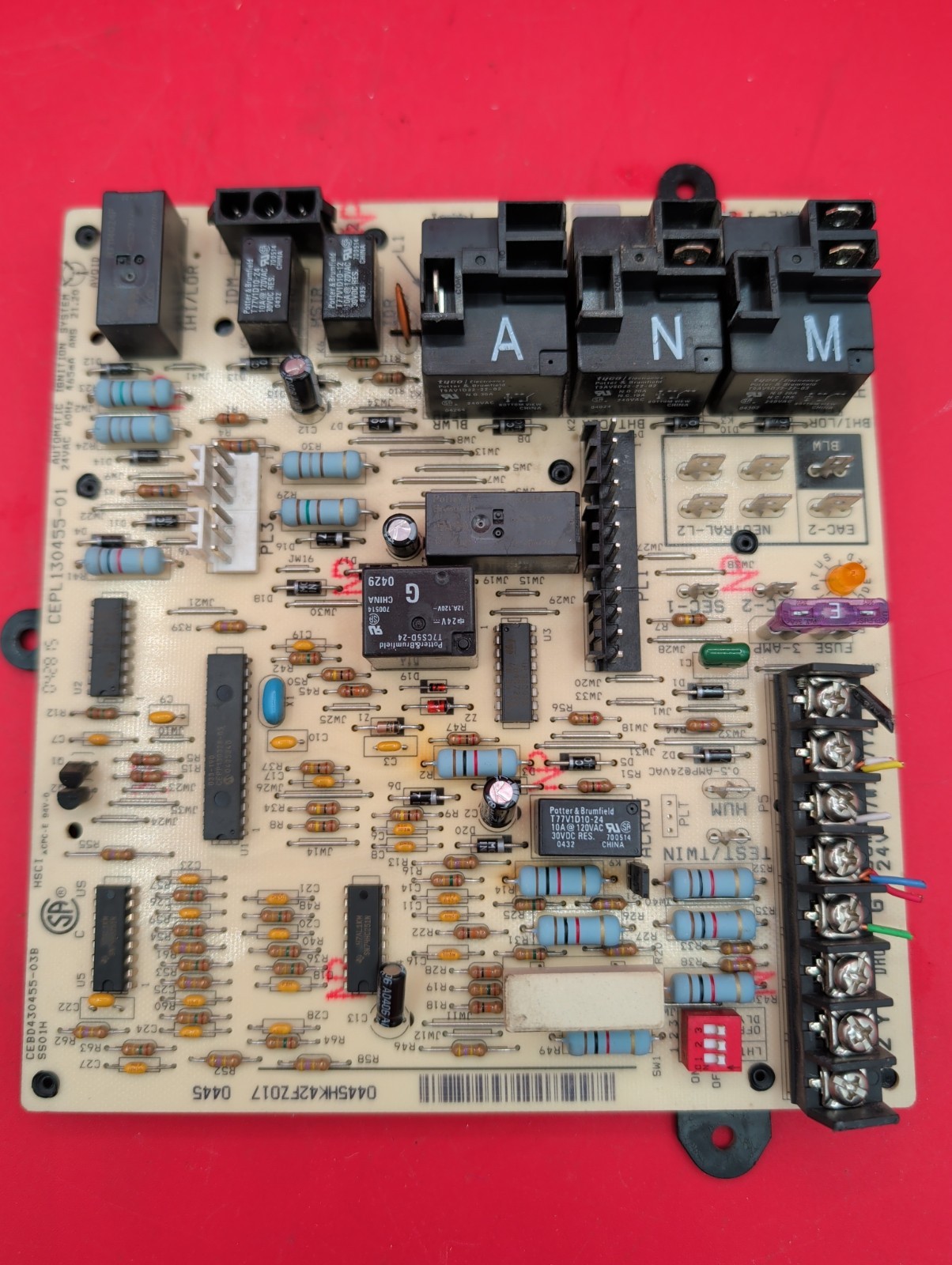

Carrier Bryant Payne CEPL130455-01 HK42FZ017 Furnace Control Board CEBD430455-03B
---
Carrier Bryant Payne Furnace Control Board
OEM Part CEPL130455-01 | HK42FZ017 | CEBD430455-03B | Tested
This listing is for a genuine OEM integrated furnace control board removed from a working Carrier/Bryant/Payne gas furnace. The board has been professionally tested, cleaned, and inspected to ensure proper operation before removal.
OEM Part Numbers
HK42FZ017
0445
Please match your original board number before purchasing.
---
Compatible Brands
Carrier
Bryant
Payne
Used in numerous residential gas furnaces utilizing an integrated ignition and blower control system.
---
Board Functions
Integrated Furnace Control (IFC)
Hot Surface Ignitor (HSI) Control
Inducer Motor Control
Indoor Blower Control
Heating Operation
Cooling Operation
Continuous Fan Operation
Electronic Air Cleaner (EAC) Output
Humidifier Output
Flame Rectification Monitoring
Limit Switch Monitoring
Rollout Switch Monitoring
Pressure Switch Monitoring
Twin Furnace Capability
Diagnostic LED Status
24-Volt Thermostat Interface
Compressor Control
Fan Delay Timing
---
Terminal Connections
Includes terminals for:
R
C
W/W1
Y/Y1
G
HUM
EAC
TWIN
LIMIT
PRESSURE SWITCH
HSI
IDM (Inducer Motor)
Blower
Neutral
Line Voltage
---
Diagnostic Steps Before Replacing
Before replacing the control board, verify:
24 VAC between R and C
Proper 120 VAC line voltage
Transformer output
Thermostat is calling for heat/cooling
Pressure switch operation
Limit switch continuity
Rollout switches reset and closed
Hot surface ignitor resistance
Flame sensor cleanliness and flame signal
Gas valve coil continuity
Inducer motor operation
Blower motor and capacitor condition
Wiring harnesses fully seated
Relay outputs functioning correctly
If all external components test properly and the board fails to energize the inducer, ignitor, blower, or gas valve, the control board is likely defective.
---
Common Symptoms of a Failed Board
Furnace will not start
No heat
Blower runs continuously
Inducer will not energize
No ignitor voltage
No gas valve output
Diagnostic LED not functioning
Intermittent ignition
Lockout conditions
No response to thermostat
Fan timing problems
Cooling or heating outputs not operating
---
Condition
Genuine OEM Carrier/Bryant/Payne control board
Professionally tested
Cleaned and inspected
Fully functional
Normal cosmetic wear from previous installation
No cracked circuit board
No broken connectors
Actual item shown in photos
---
Includes
(1) OEM Furnace Control Board
Part Numbers
HK42FZ017
---
30-Day Warranty
Every board is individually tested prior to shipment and is backed by a 30-Day Replacement Warranty. It will be packaged in an anti-static bag with protective cushioning for safe delivery.
