Specification: - 100% New and High Quality
- 1 Year Warranty
- Type:Bushing Installation Tool
- Bushing Type:Narrow Bushing
- Material:High Quality Steel
- Fitment Type:Direct Replacement
- High quality steel Components,Durable & Strength,Resists Corrosion,Black Oxide Coating
- Direct Replacement for S-24736
- For use withNarrow Bushing Kits
- Ensure that threads on tool are well lubricated before and during use to avoid damaging threads

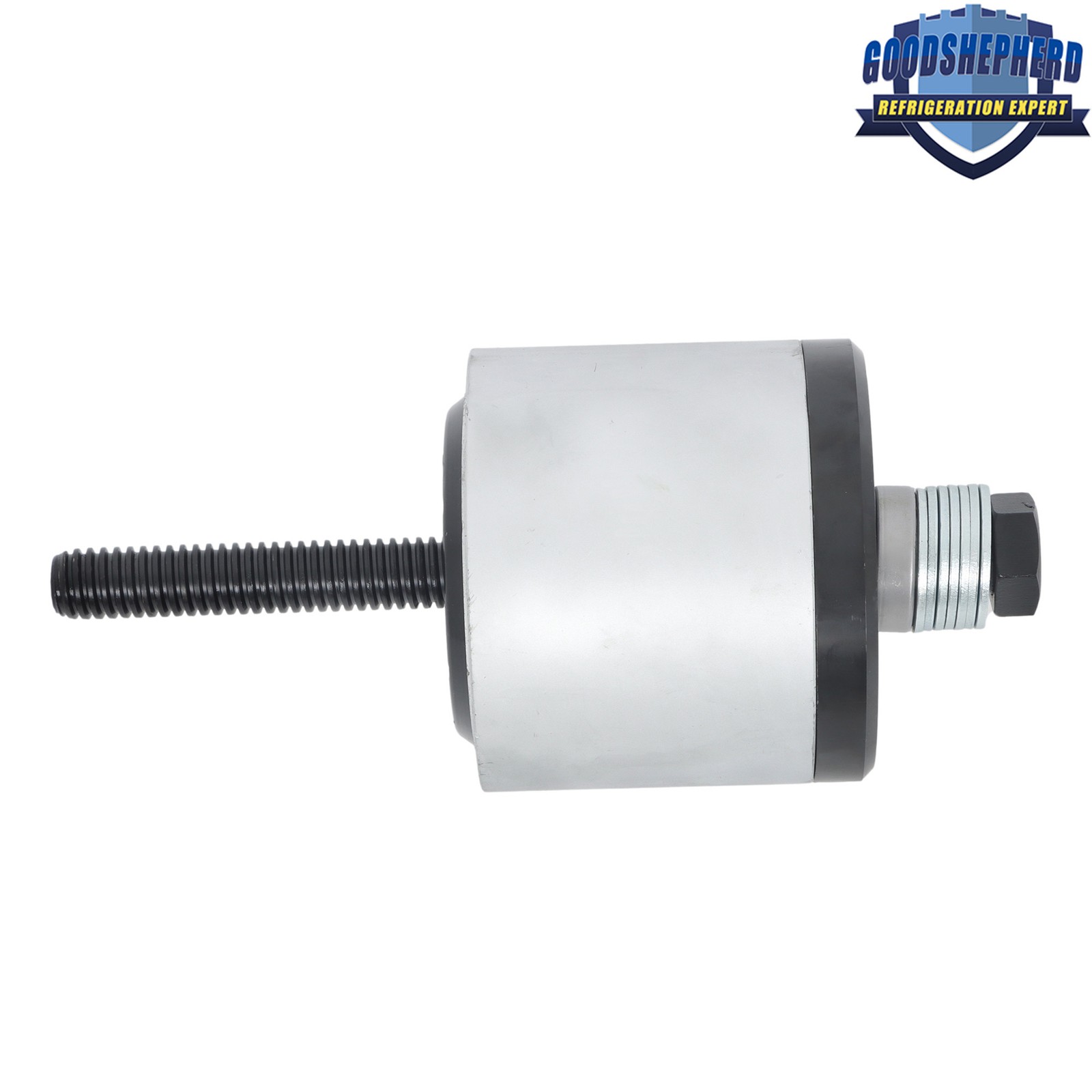

Removal of Bushing: Bushing Installation Tool For Narrow Bushing Installation Tool S-24736
Specification:
- 100% New and High Quality
- 1 Year Warranty
- Type:Bushing Installation Tool
- Bushing Type:Narrow Bushing
- Material:High Quality Steel
- Fitment Type:Direct Replacement
- High quality steel Components,Durable & Strength,Resists Corrosion,Black Oxide Coating
- Direct Replacement for S-24736
- For use withNarrow Bushing Kits
- Ensure that threads on tool are well lubricated before and during use to avoid damaging threads
Removal of Bushing:
1.Scribe the bushing orientation on the beam tube and compression tube.
2.The spring pins are not required to line up with the bushing holes during removal.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
Installation of Bushing:
1.Lubricate the bushing and insert the bushing into compression cylinder.
2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing. Hook up hydraulics and begin installation operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
OE Include:
1 SetNarrow Bushing Installation Tool
W/O Product check the pictures carefully before buying to determine whether these products are what you need.If you are unsatisfied with your order, please contact usand we will work with you to resolve it to your satisfaction.
Item SpecificsCountry of Origin United StatesBrand goodshepherd18Manufacturer Part Number GP1128121DHType Bushing Installation ToolBushing Type Narrow BushingWarranty 1 YearOE Part Number S-24736Set or Single Item SetColor As shown in the pictureMaterial High Quality SteelFitment Type Direct ReplacementFeatures Durable/Easy to installInterchange Part Number S-24736
