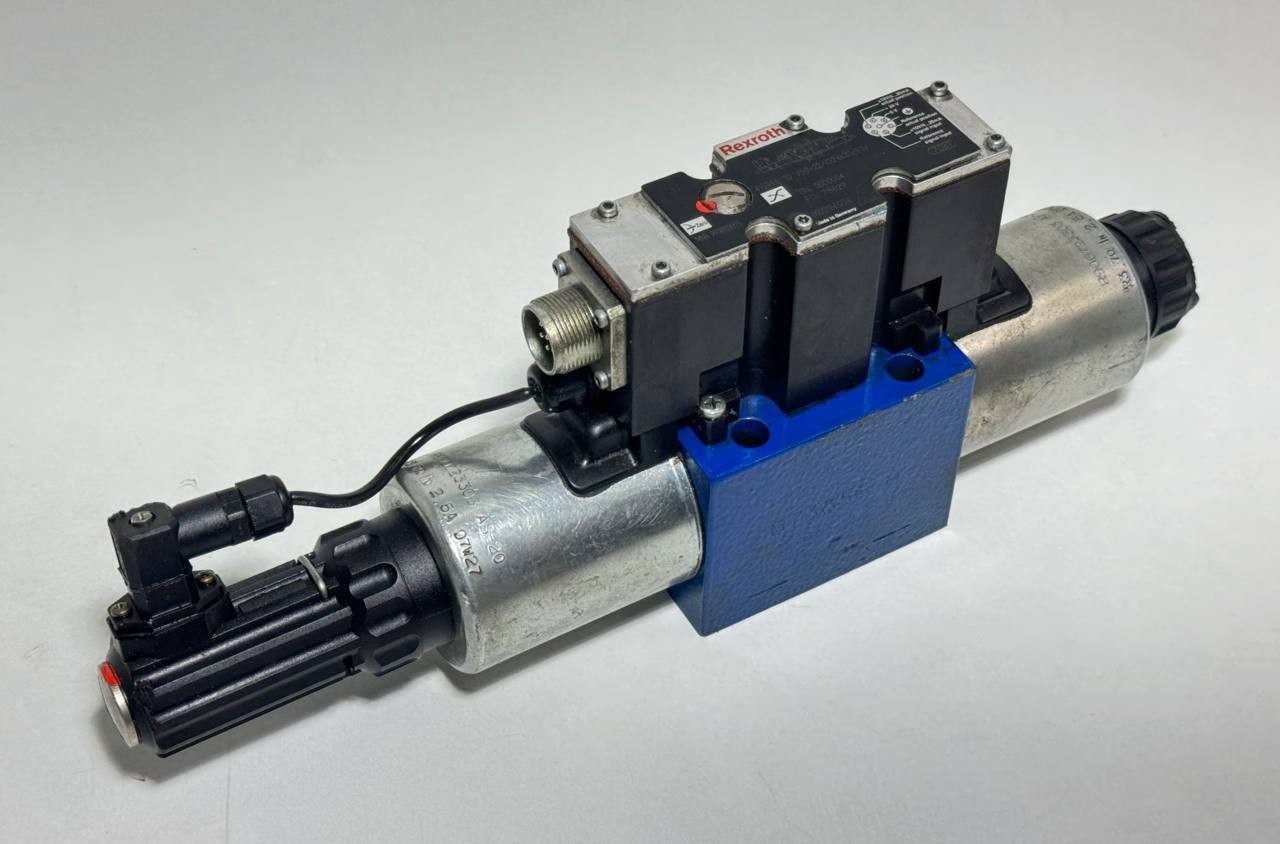

Bosch Rexroth 4WREE 10 V50-22/G24K31/F1V 4/3 Proportional Directional Valve For Sale

PRODUCT DESCRIPTION

Bosch Rexroth 4/3 Proportional Directional Valve with integrated electronics (OBE).

Here is a breakdown of the technical specifications and identification details for this component:

Core Identification

• Model Code: 4WREE 10 V50-22/G24K31/F1V

• Material Number (MNR): R900924975

• Solenoid Part Number: R900723303 AS-20

• Size (NG): 10 (Cetop 5)

• Type: 4-way, 3-position proportional valve with electrical position response and integrated electronics.

Technical SpecificationsFeatureDetailOperating Voltage24V DCMax Flow RateApproximately 50 L/min (based on the V50 code)Control Signal+10V(Voltage) or 4...20mA(Current)Solenoid Resistance3.7Ω(cold)
Nominal Current ($I_N$)2.5AElectrical Connection6-pin + PE (Standard Bosch Rexroth connector)Pinout Configuration (Integrated Electronics)

The diagram on the nameplate identifies the following wiring for the 7-pin connector:

• A: +24VSupply

• B: 0V(Common)

• C: Reference (Actual position output)

• D: Signal Input (+10Vor 4 …20mA)

• E: Reference Signal Input

• F: Actual Position response (+10Vor4 …20mA)

• PE: Earth Ground

Features & Function

• Integrated Electronics (OBE): The black box on top eliminates the need for an external amplifier card. It processes the command signal and controls the solenoid current internally.

• Position response: The \"E\" in 4WREE signifies an LVDT (Linear Variable Differential Transformer) position transducer. This allows the internal electronics to monitor the exact position of the valve spool for high-precision flow control.

• Zero Adjustment: The small screw labeled \"Zero\" under the Rexroth logo is used for null-point adjustment to ensure the valve is perfectly centered when the command signal is at zero.
