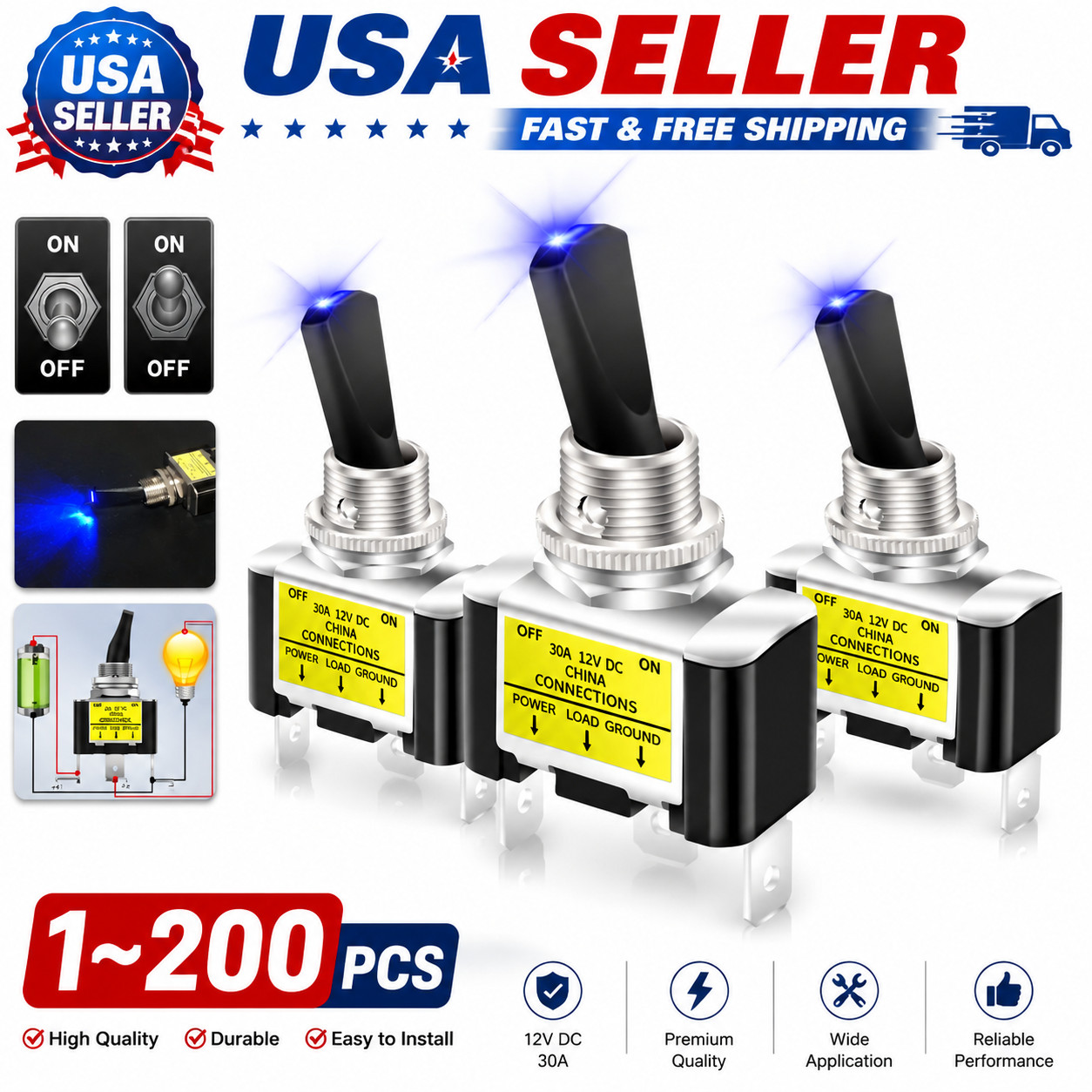

Nilight Blue LED Toggle SwitchON OFF Toggle Switch with LED Indicator
Easy Installation Toggle Switches:
- Insert switches into 0.48" (12mm) mounting hole, and tighten the top hex nut
- Adjust the bottom hex nut to leave ample space.
- Connect load, power source, and ground to terminals.
- SPST Toggle switch with LED Indicator
- Size: 1.12*0.63*2.21 inches(28.3*16*56 MM)
- Package includes:1~200 pcs toggle switch
Speciflcation:Rating30A 12VDC/ 15A 24VDCContact Resistance:≤50mΩInsulated Resistance:≥100MΩOperating Temperature:-25℃~+85℃Electrical Life:≥10,000 CyclesPanel Cut-Out Size:12mmPanel Thickness:10mm MaxWaterpoof Degree:IP40LED Rating:20mALED Endurance:≥20,000 HoursProduct details
ON/OFF Toggle Switch
- This 12v toggle switch is 3 Pin SPST ON-OFF design,the rating of this automotive toggle switch is 30A 12VDC/ 15A 24VDC.
- Switch function: when you toggle the switch on, LEDs on and the accessory is on. When you flip the switch cover, LEDs off, accessory is off.
SPST 3 terminal PIN
3 pin terminals i s made of brass copper, the blade type terminals for quick connections of plug and play.
Wiring Method
- "+1"Power, +12VDC To Power Supply Positive
- "+2" Load , +12VDC To Load
- "-" Power , To Power Supply Negative
LED Indicator
The blue LED indicator will be illuminated when the switch is turned on. e.g. When the switch is turned on, the light is also turned on；Switch off, light off
Application
Car
Truck
Motorcycle
Boat
