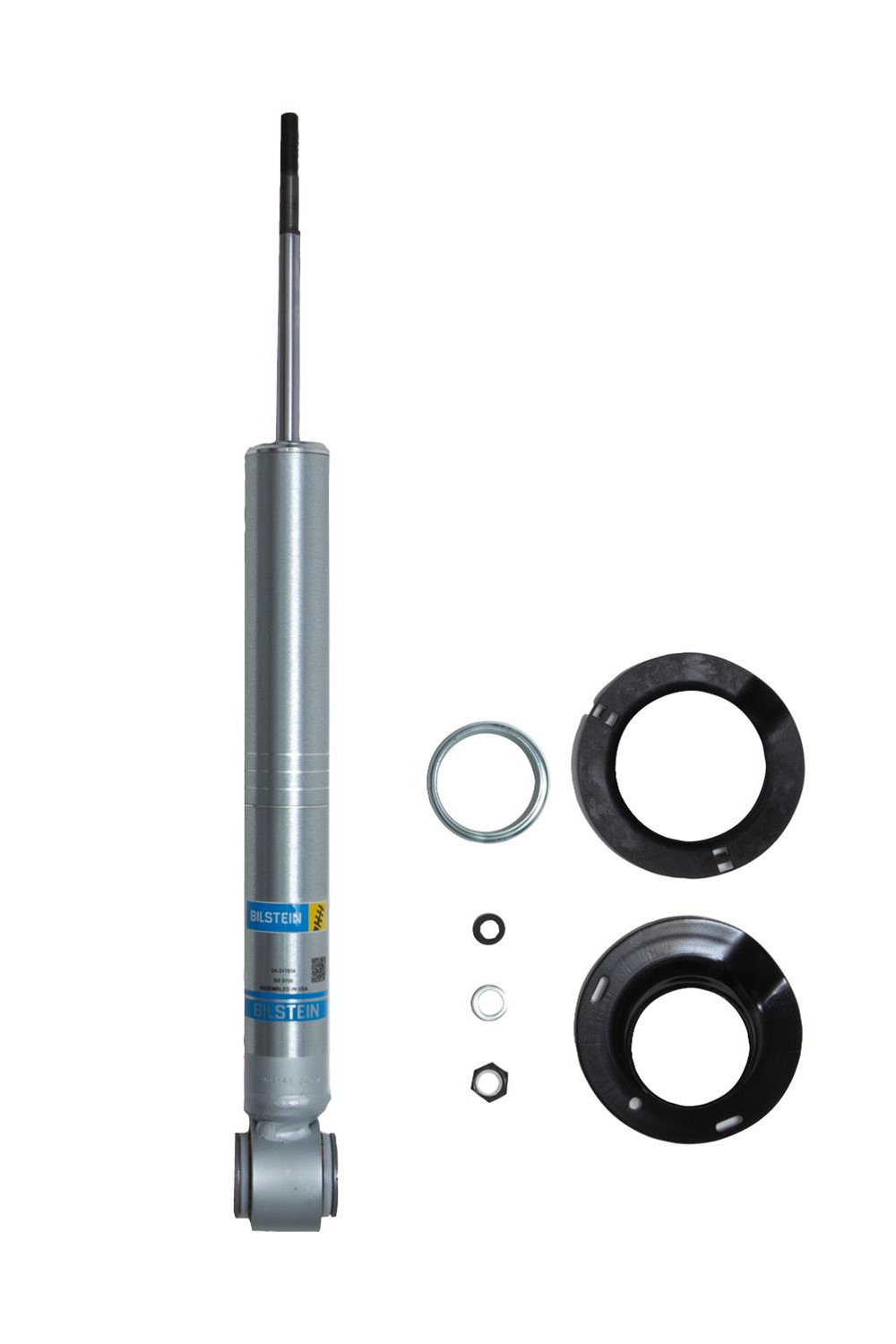

Bilstein 24-317856 B8 5100 Adjustable Front Shock for 2009-2013 Ford F-150 4WD For Sale

- AUTHORIZED DEALER
- AUTHENTICPART

Part Brand: Bilstein

Part Number: 24-317856

• 2009-2013 Ford F-150 (All Trims, 4WD, Front, Adjustable 0-2.25″ Lift)

• Bilstein B8 5100 Series front shock with ride height adjustable spring seat
• Monotube gas-pressurized design for consistent performance and heat dissipation
• 46 mm piston with velocity-sensitive digressive valving for improved damping control
• Adjustable spring seat allows custom front ride height from approximately stock up to ~2.25″
• Durable zinc-plated corrosion-resistant finish
• Designed to work with OE coil-over style suspension
• Enhanced handling and wheel control over standard shocks
• Direct bolt-on replacement -- no trimming/modification required

• Part Number: 24-317856
• Series: Bilstein B8 5100 (Ride Height Adjustable)
• Position: Front (Driver or Passenger Side)
• Internal Design: Monotube gas-pressurized
• Damping: Non-adjustable
• Body Diameter: ~46 mm
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet (~20.3 mm)
• Collapsed Length: ~16.93″ (430 mm)
• Extended Length: ~21.86″ (555.2 mm)
• Spring Seat Included: Yes
• Boot Included: No
• Adjustable Lift Range: ~0-2.25″ Front

• 1x Bilstein B8 5100 Ride Height Adjustable Front Shock (24-317856)

The Bilstein 24-317856 B8 5100 Adjustable Front Shock is engineered as a performance-oriented suspension upgrade for 2009 through 2013 Ford F-150 4WD trucks. Featuring a monotube gas-pressurized design and a 46 mm digressive piston, this shock improves damping response and wheel control compared to factory units while providing adjustable ride height using the included spring seat. By moving the spring perch to different positions, you can raise the front ride height from stock up to approximately 2.25″ without additional spacers.

Installation is straightforward, with the 24-317856 shock mounting directly into the original front suspension mounting points and requiring no trimming or modifications. The durable zinc-plated finish enhances corrosion resistance for long service life, and the adjustable design gives flexibility for leveling or light lift setups. Sold individually, it’s recommended to install matching shocks on both sides for balanced suspension performance and improved ride quality on lifted or leveled F-150s.

*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
