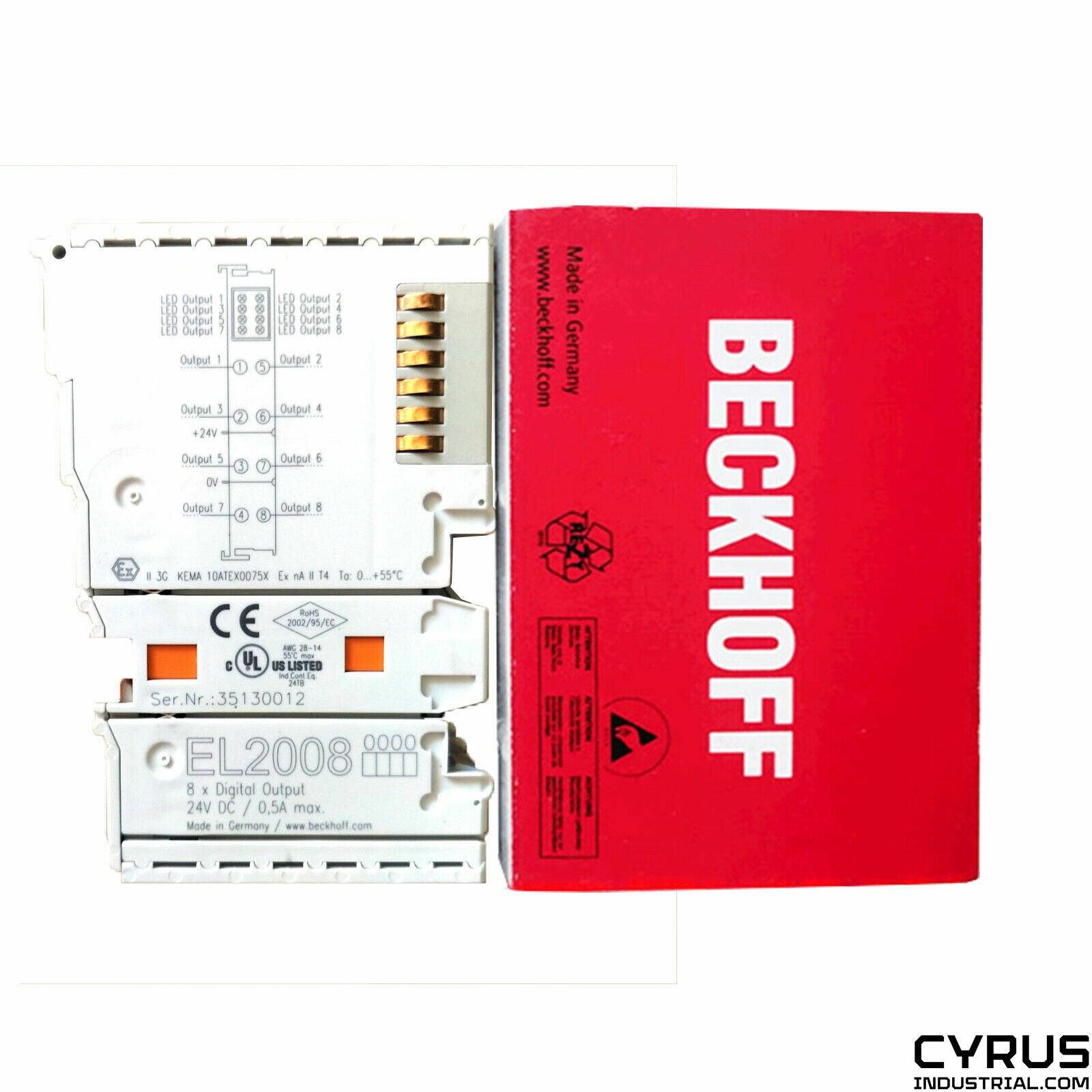

The EL2008 digital output terminal connects the binary 24VDC control signals from the automation device on to the actuators at the process level with electrical isolation. EachEtherCATTerminal has eight channels that indicate their signal state via light emitting diodes.
Special features:
- Connection of different load types possible (ohmic, inductive, lamp load)
- Max. output current 0.5A per channel
- Short-circuit-proof outputs and reverse polarity protection
Technical dataEL2008, ES2008Connection technology1-wireNumber of outputs8Nominal voltage24 V DC (-15 %/+20 %)Load typeohmic, inductive, lamp loadDistributed clocks–Max. output current0.5 A (short-circuit proof) per channelShort-circuit currenttyp. < 2 AReverse voltage protectionyesBreaking energy< 150 mJ/channelSwitching timestyp. TON: 60 µs, typ. TOFF: 300 µsCurrent consumption E-bustyp. 110 mAElectrical isolation500 V (E-bus/field potential)Current consumption power contactstyp. 15 mA + loadBit width in the process image8 outputsConfigurationno address or configuration settingWeightapprox. 55 gOperating/storage temperature-25…+60 °C/-40…+85 °CRelative humidity95 %, no condensationVibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4Protect. rating/installation pos.IP20/see documentationPluggable wiringfor all ESxxxx terminalsApprovals/markingsCE, UL, ATEX, DNV GL, IECEx, cFMusEx markingATEX:
II 3 G Ex nA IIC T4 Gc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
