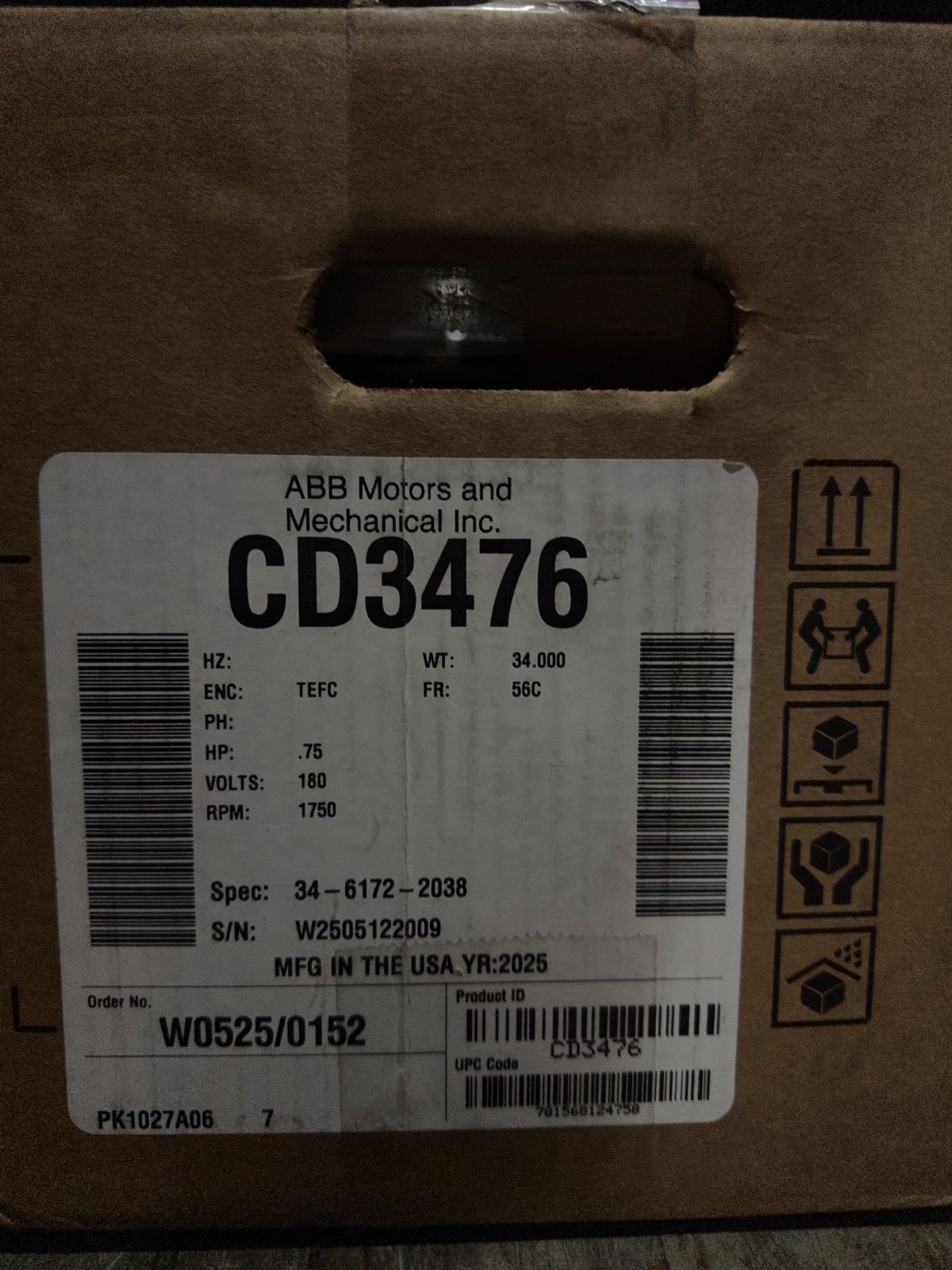

Baldor-Reliance CD3476 Industrial DC Motor - 0.75 HP, 1750 RPM, 180 VDC, 56C Frame, TEFC
Condition: New / Unused (Surplus)
Product Specifications:
Brand: Baldor-Reliance
Catalog Number (CAT. NO.): CD3476
SPEC.: 34-6172-2038
Horsepower (H.P.): 0.75 HP (.75)
RPM: 1750 RPM
Armature Voltage (ARM VOLTS): 180 VDC
Armature Amps (ARM AMPS): 3.8 A
Field Volts (FIELD VOLTS): 200/100 VDC
Field Amps (FIELD AMPS): .3/.6 A
Frame: 56C
Enclosure (ENCL.): TEFC (Totally Enclosed Fan Cooled)
Type: 3428D
Insulation Class (INSUL.): F
Duty: CONT (Continuous)
Ambient Temp (AMB.): 40°C
Bearings: 6203 (DE / ODE)
Brush: 2/BP5000H03
Serial Number: W2505122009
Country of Manufacture: USA
Description:For sale is a heavy-duty Baldor-Reliance Industrial DC Motor, model CD3476. Rated for 0.75 HP at 1750 RPM with a 180V armature voltage and 56C C-face mounting. Totally enclosed fan cooled (TEFC) design built for high performance and continuous operation in industrial settings.
