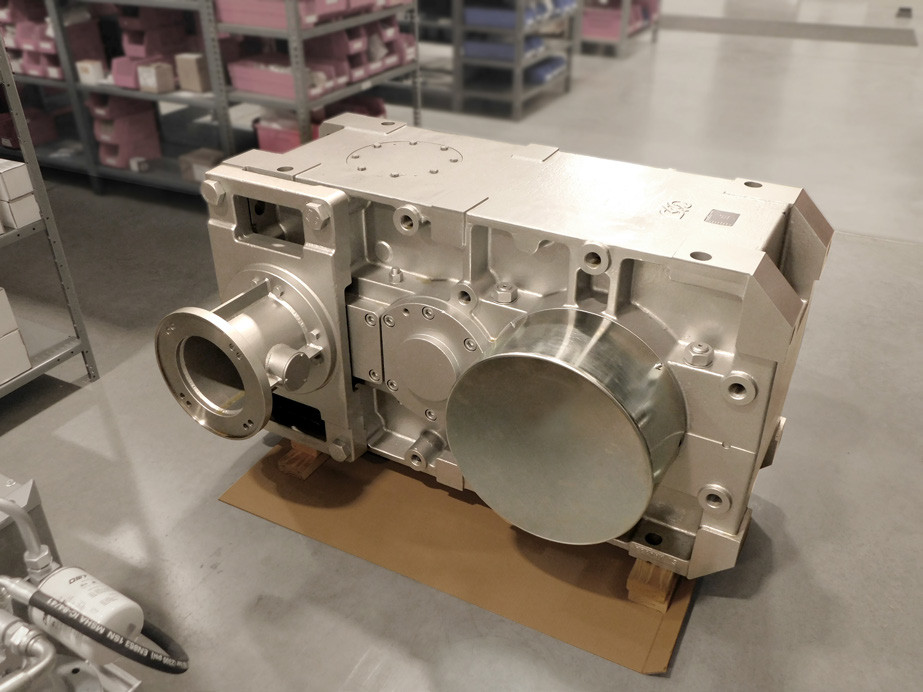

BRAND NEW- These were a part of a build that was cancelled.
When high output torque, robustness reliability and long operating life must be achieved, Bonfiglioli\'s HDx Series represent the best solution. Thanks to high quality materials and an optimized design, HD Series can operate in the harshest environment, as well as in explosive atmospheres, with low maintenance costs and long time service intervals. The output shaft can be chosen both in the parallel (HDP).
PRODUCT SERIES HDP - Parallel Shaft GearboxFRAME SIZE 140 -Mn2=87060Nm/Tn2=770546LbInREDUCTIONS 4 - 4 Reduction StagesGEAR RATIO 444.4OUTPUT SHAFT S - Hollow O/P Shaft Shrink DiscSHAFT LAYOUT LR - O/P on Left I/P RightINPUT CONFIGURATION NGR - Inch Bell Housing RightSideINPUT DEFINITION N320TC - NEMA Input MotorAdaptor 320TCMOUNTING POSITION B7
TECH.DATAMeasurement Internat. System IMPERIALn1 Input Speed [min-1] 1800Pn1 input rated power [hp] 50n2 Output Speed [min-1] 4.1Tn2 Output rated torque[lb*in] 716120PT thermal capacity basis [Hp] N/ARn1max I/P Over.Load Max[lbs] 405Rn2max O/P Over.Load Max[lbs] 42714An2max O/P Ax.Force Max [lbs] 21357Output Shaft Dimensions Ø180 H7 mmOil Quantity [gal] 38.833
