BENDIX ~ MS27467T23F35S ~ 100 CONTACT(S), ALUMINUM ALLOY, FEMALE, CONNECTOR For Sale

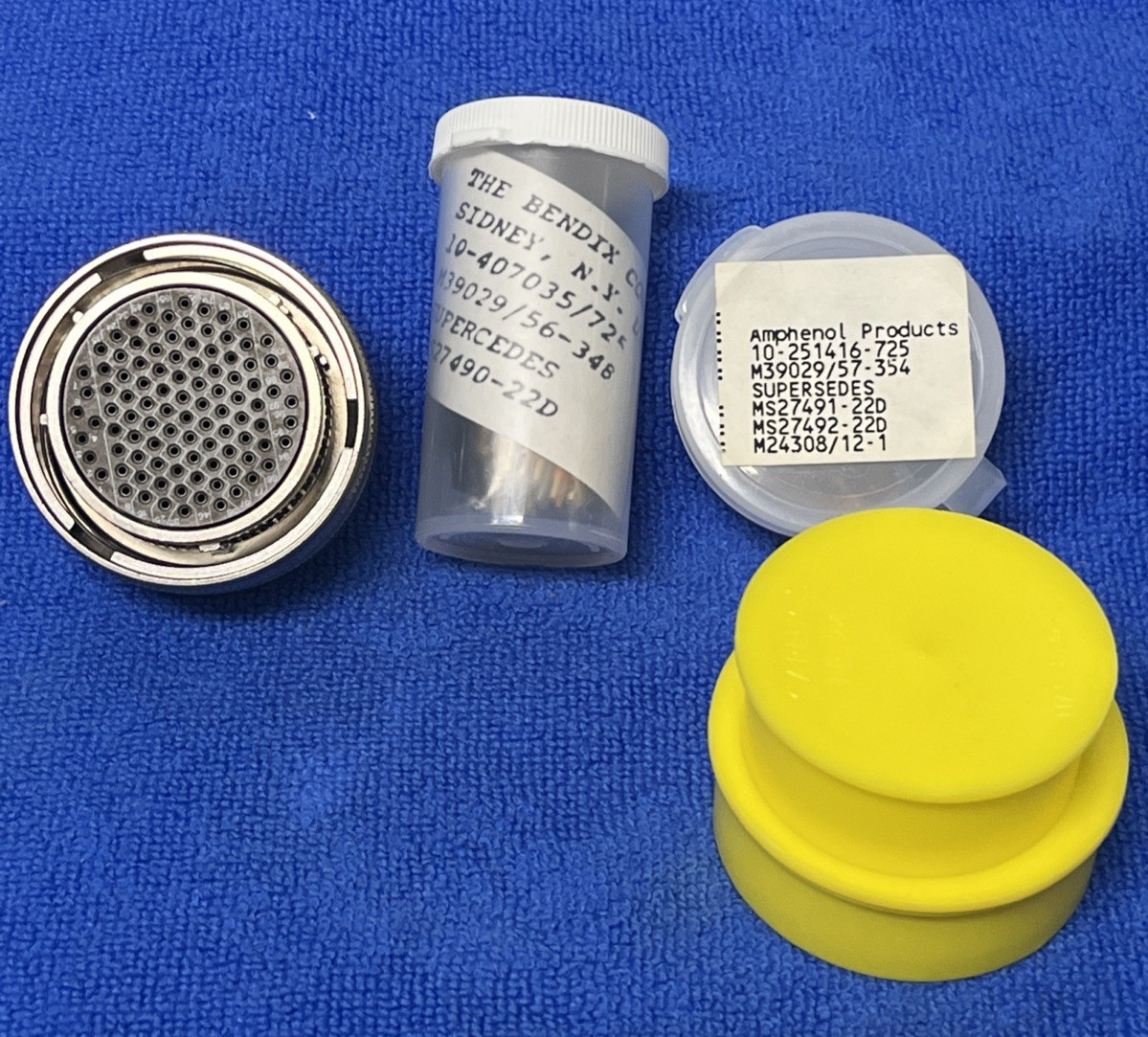

BENDIX ~ MS27467T23F35S ~ 100 CONTACT(S), ALUMINUM ALLOY, FEMALE, CONNECTOR
LOT 40020 G16
NEW OLD STOCK
Technical Data | NSN 5935-01-077-0227 Characteristic Specifications BODY STYLE 7A STRAIGHT SHAPE, INTERNAL COUPLING OVERALL LENGTH 1.234 INCHES MAXIMUM OVERALL DIAMETER 1.766 INCHES MAXIMUM CONNECTOR LOCKING METHOD BAYONET LATCH THREADED DEVICE TYPE BACK SHELL THREAD SERIES DESIGNATOR UNEF NOMINAL THREAD SIZE 1.312 INCHES THREAD CLASS 2A THREAD DIRECTION RIGHT-HAND SHELL TYPE SOLID SHELL MATERIAL ALUMINUM ALLOY SHELL SURFACE TREATMENT CADMIUM POLARIZATION METHOD KEYWAY OR MULTIPLE KEYWAY INSERT POSITION IN DEG 0.0 MATING END QUANTITY 1 CONTACT POSITION ARRANGEMENT STYLE EFAL 23-35 SINGLE MATING END INCLUDED CONTACT QUANTITY 100 SINGLE MATING END SINGLE CONTACT GROUPING CONTACT REMOVABILITY REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING INCLUDED CONTACT TYPE ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CONTACT SURFACE TREATMENT GOLD SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL TYPE CRIMP SINGLE MATING END SINGLE CONTACT GROUPING TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING MANUFACTURERS CODE 81349 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-C-38999 MANUFACTURERS CODE 96906 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS27467T23F35S
