BEING Dental High Speed Handpiece Fiber Optic Air Turbine 4/6Hole Coupler Fit NS
BEING Dental Fiber Optic High Speed Handpiece Push button Standrad/Torque 4/6 Holes Coupler Fit NSK Machlite/Phatelus Coupling
Model Available:

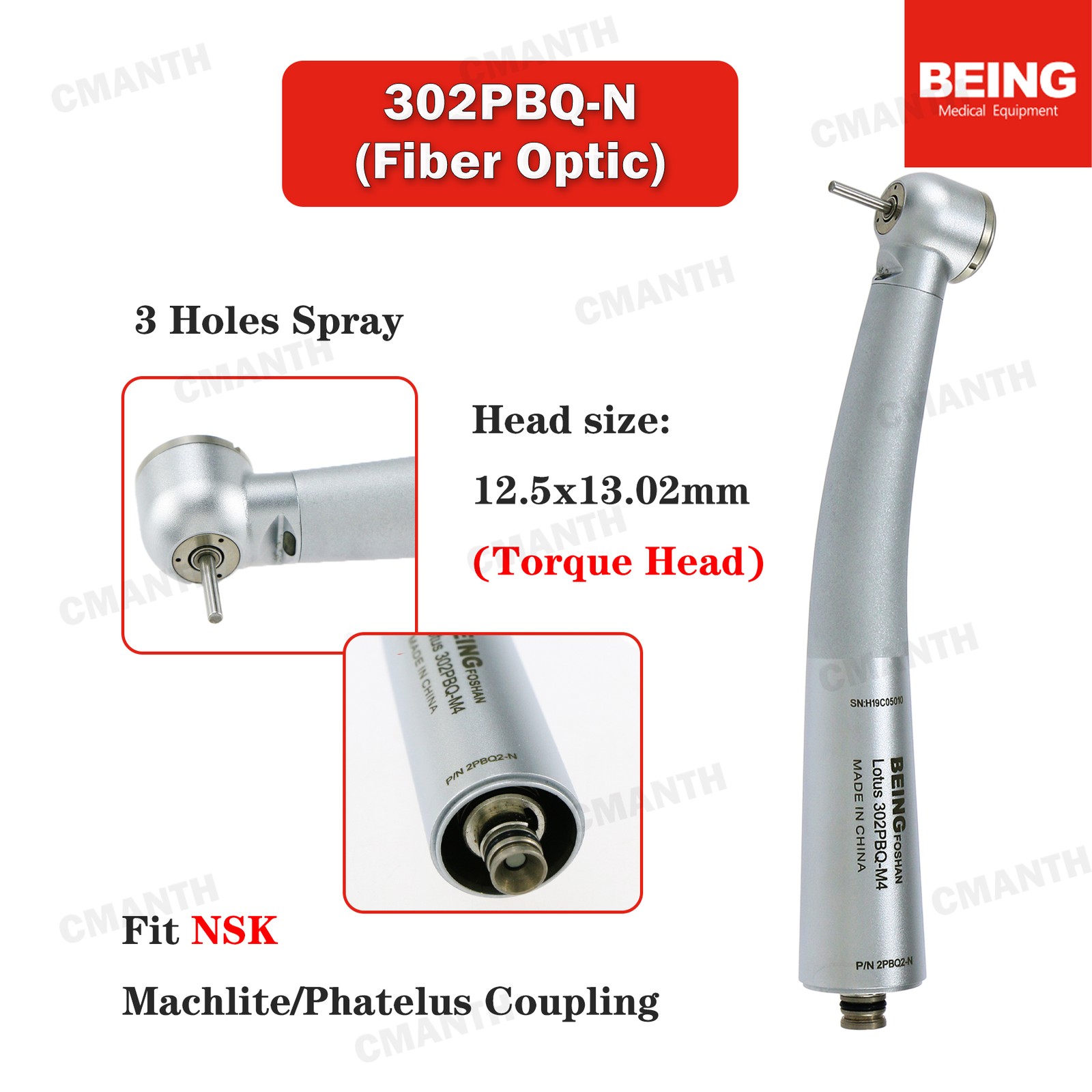

302PBQ-N Handpiece (Torque Head Fiber Optic)
303PBQ-N Handpiece (Standard Head Fiber Optic)
302PQ-N Handpiece(Torque Head No Fiber Optic)
303PQ-N Handpiece (Standard Head No Fiber Optic)
104N-QC:4Holes Coupler(No LED)
106NB-QC:6Pin LED Coupler
302Rotor (Torque Head )
303Rotor (Standard Head )Features:
The NON-RETRACTION structure in the handpiece, prevents suction of oral fluids in a patient\'s mouth into the water line of the handpiece at the spray water outlet port.
Lotus 302PBQ-N
Lotus 303PBQ-N
Lotus 302PQ-N
Lotus 303PQ-N
New triple water spray system can cool the treated area and the bur effectively and roundly. Clogging of the the spray port is thus minimized
Push button type, easy changing cartridge.
Connect with quick coupling, easy to load or unload the handpiece from the tubing of the dental unit.
Water spray can be controlled in the quick coupling.
With LED Light in the Coupling, offering a better eyeshot and angle, improving your efficiency.
High density Chinese bearings cartridge, with high cutting efficiency but less vibration and noise.
Newly-designed handle, comfortable to hold and easy to clean.
Both handpiece and quick coupling are autoclavable. (up to 135℃)
Technical Specifications:
Air press at the back of the handpiece: 206~231 KPa (2.1~2.35kgf/cm2)
Air pressure at the gauge in the dental unit: 240-294 KPa (2.45-3.0 kgf/cm2)
Water pressure: 198Kpa (2 kg)
Rotation speed: 300,000-380,000 rpm (Torque Head)
380,000-450,000 rpm (Standard Head)
Head height: φ12.5 mmx13.02 mm (Torque Head)
φ10.8 mmx12.1 mm (Standard Head)
Chuch type: Push button
Bur applicable: φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
Noise≤60dB
Intensity of light: 25000 lx
Source of Light: LED bulb
Voltage of bulb: 3.0~3.2 V
Safty classification: B type application part
